Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  2. Remove the radiator lower air deflector bolts and retainers.
  3. Disengage the deflector from the retainer at the center of radiator opening air baffle, as shown.
  4. Remove the radiator lower air deflector.

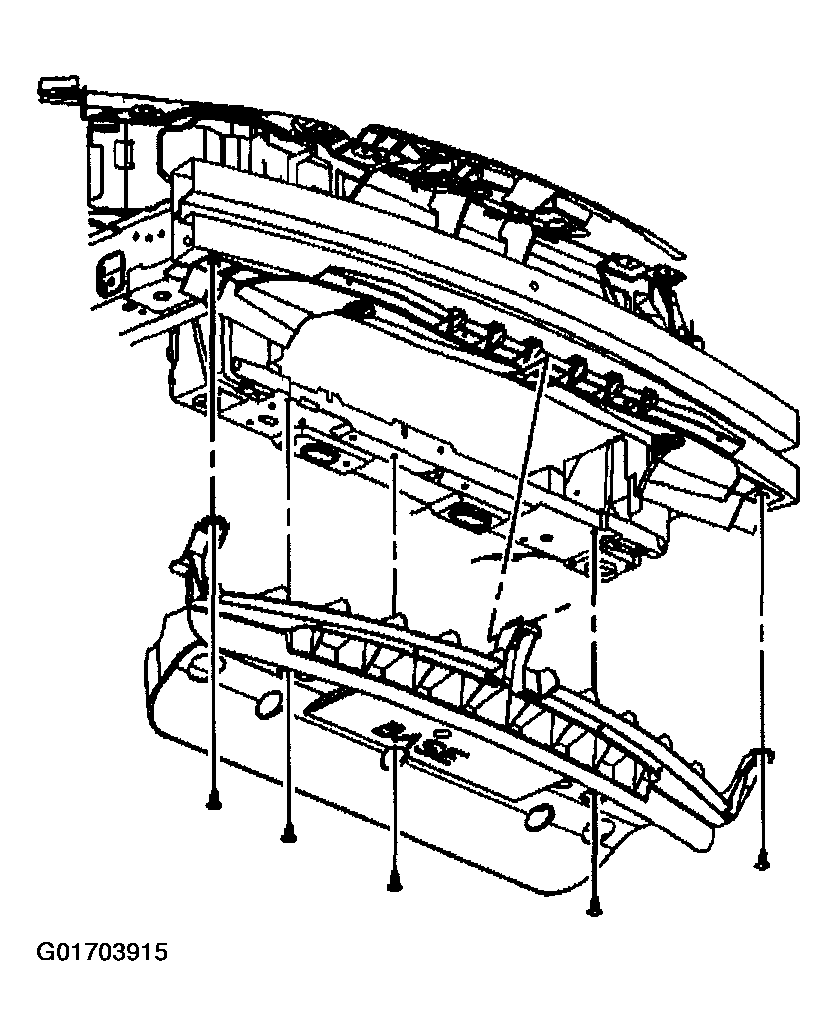

    Fig 1: Radiator Lower Air Deflector, Bolts & Retainers
    G01703915Courtesy of GENERAL MOTORS CORP.
