Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the radiator lower air deflector to the radiator opening air baffle retainer. Install the deflector to the baffle retainer, as shown.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the radiator lower air deflector bolts and retainers.

    Tighten

    Tighten the bolts to 20 N.m (15 Ib ft).

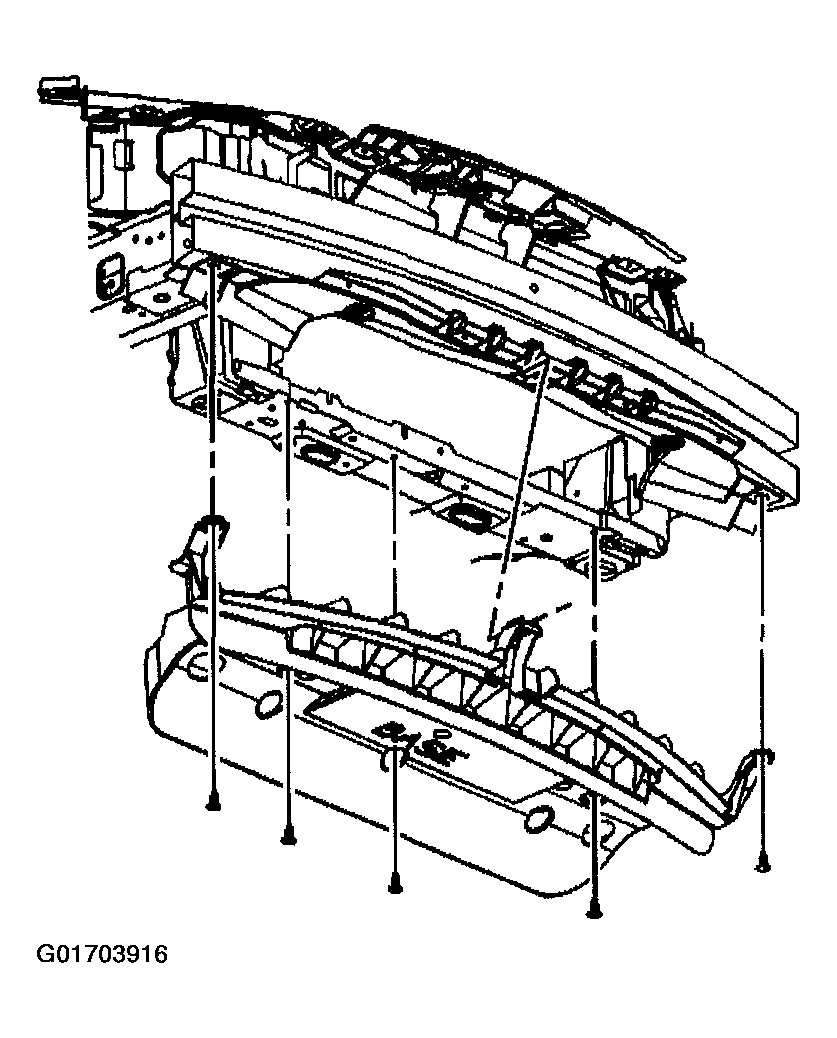

    Fig 1: Radiator Lower Air Deflector, Bolts & Retainers
    G01703916Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
