Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fans. Refer to Cooling Fan Replacement - Electric .
  2. Remove the engine cooling fan heat shields.
  3. Disconnect the engine cooling fan electrical connectors from the cooling fan motors.
  4. Remove the engine cooling fan electrical harness from the fan shroud.

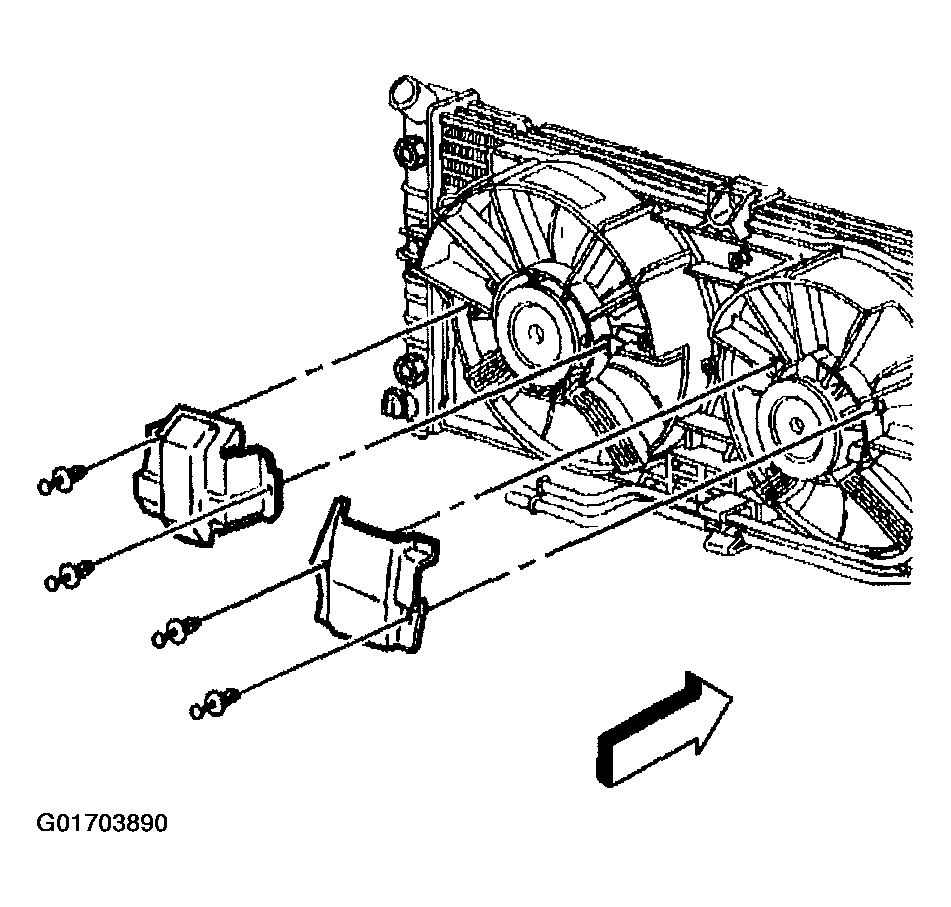

    Fig 1: Engine Cooling Fan Heat Shields
    G01703890Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine cooling fan blade nuts.
  6. Remove the engine cooling fan blades.

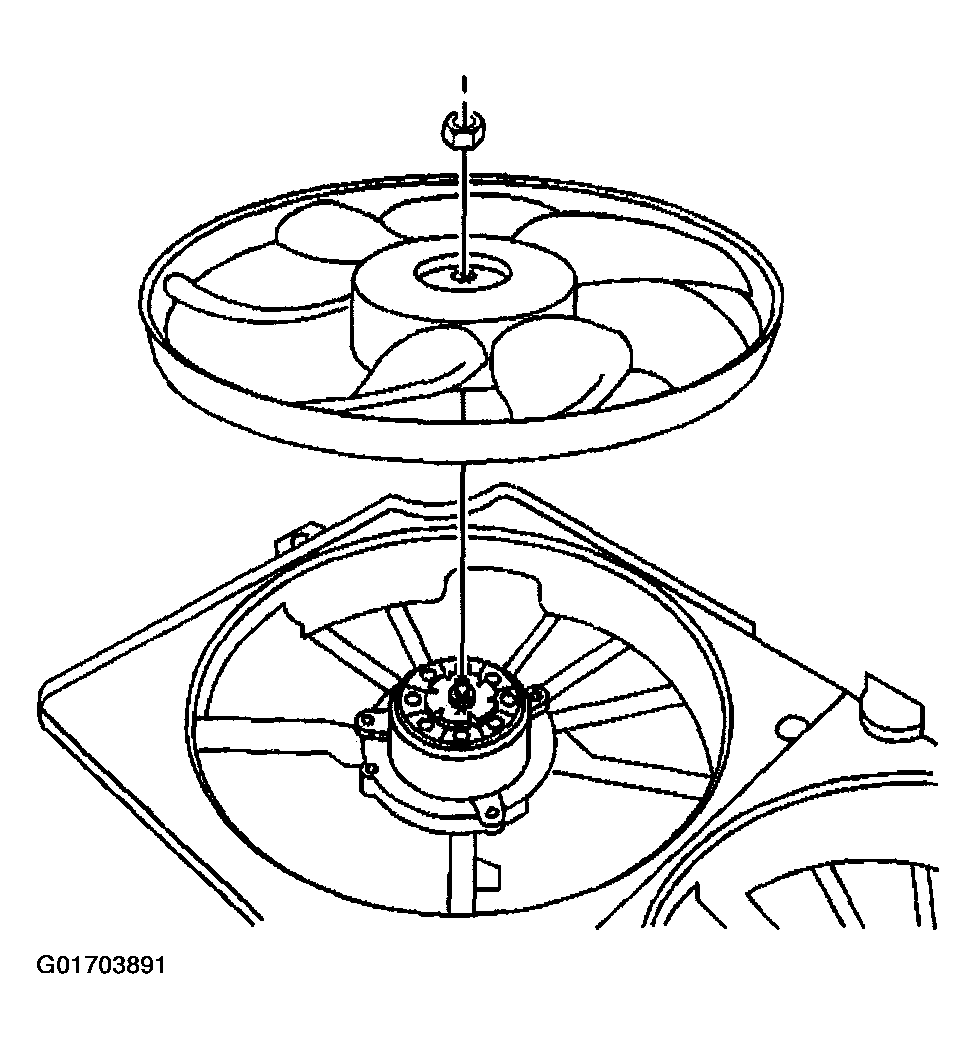

    Fig 2: Engine Cooling Fan Blades & Nut
    G01703891Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine cooling fan motor bolts.
  8. Remove the engine cooling fan motors from the fan shroud.

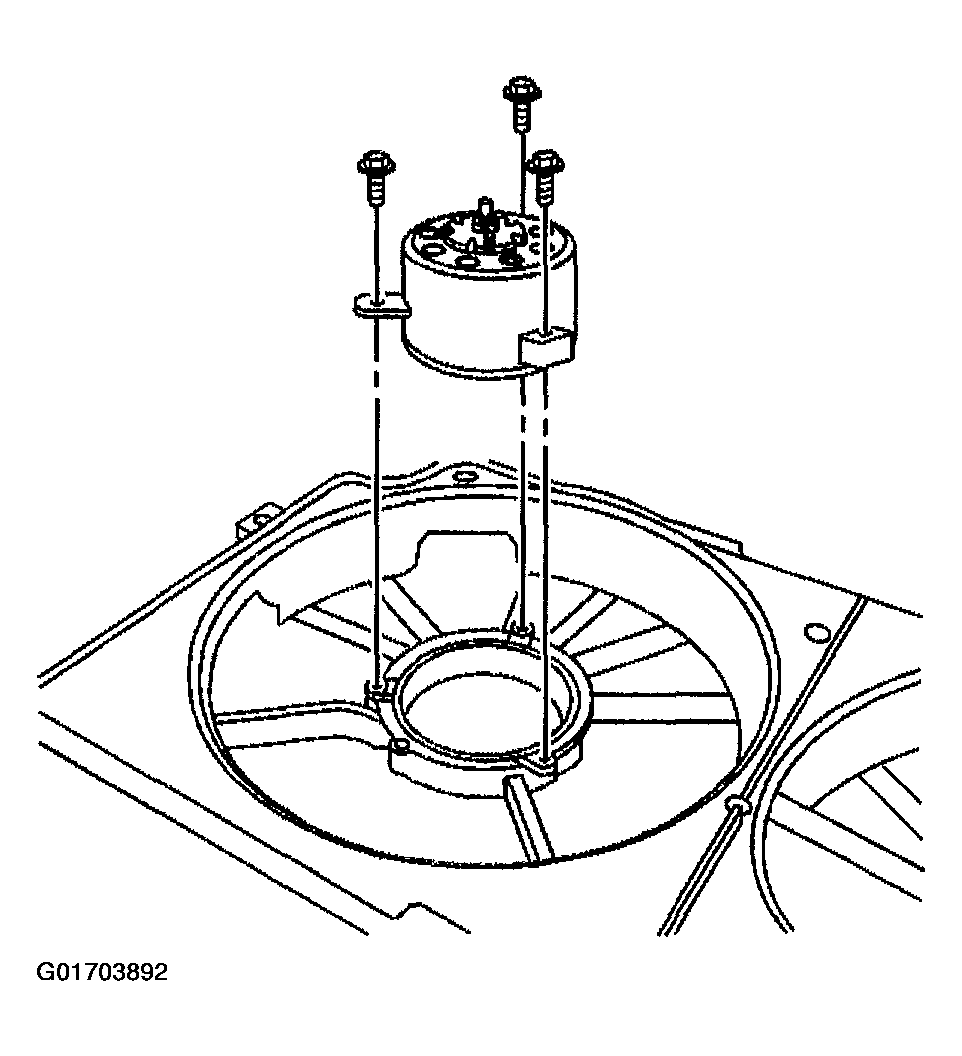

    Fig 3: Engine Cooling Fan Motor & Bolts
    G01703892Courtesy of GENERAL MOTORS CORP.
