Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fans.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the cooling fan shroud bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 Ib in).

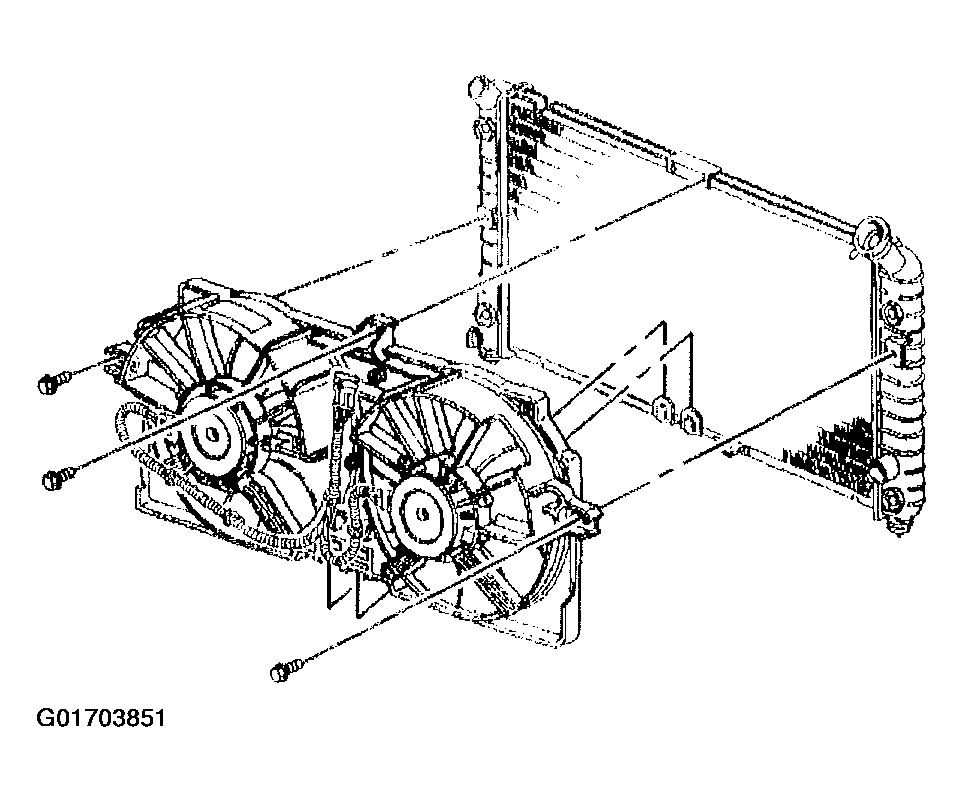

    Fig 1: Cooling Fans & Fan Shroud Bolts
    G01703851Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine cooling fan electrical connector.

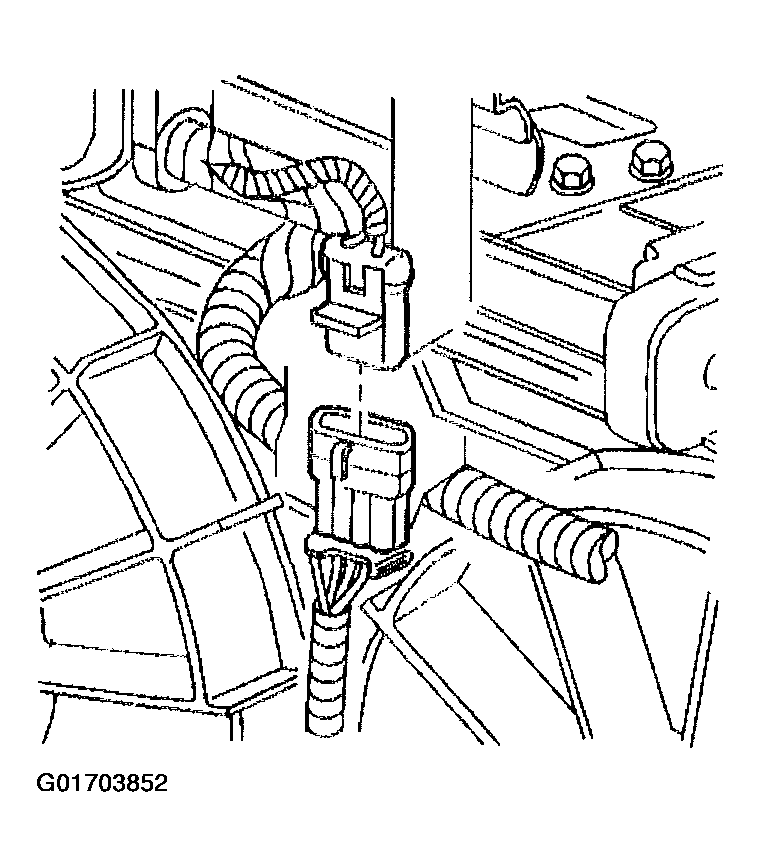

    Fig 2: Engine Cooling Fan Electrical Connector
    G01703852Courtesy of GENERAL MOTORS CORP.
  4. Connect the wiring harness to the left side fan shroud clip.
  5. Install the transmission oil cooler lines to the fan shroud clip.
  6. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY .
  7. Install the left and the right engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT for 3.1L or ENGINE MOUNT STRUT REPLACEMENT - LEFT and ENGINE MOUNT STRUT REPLACEMENT - RIGHT for 3.8L.
