Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine cooling fan motor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the cooling fan motor bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 Ib in).

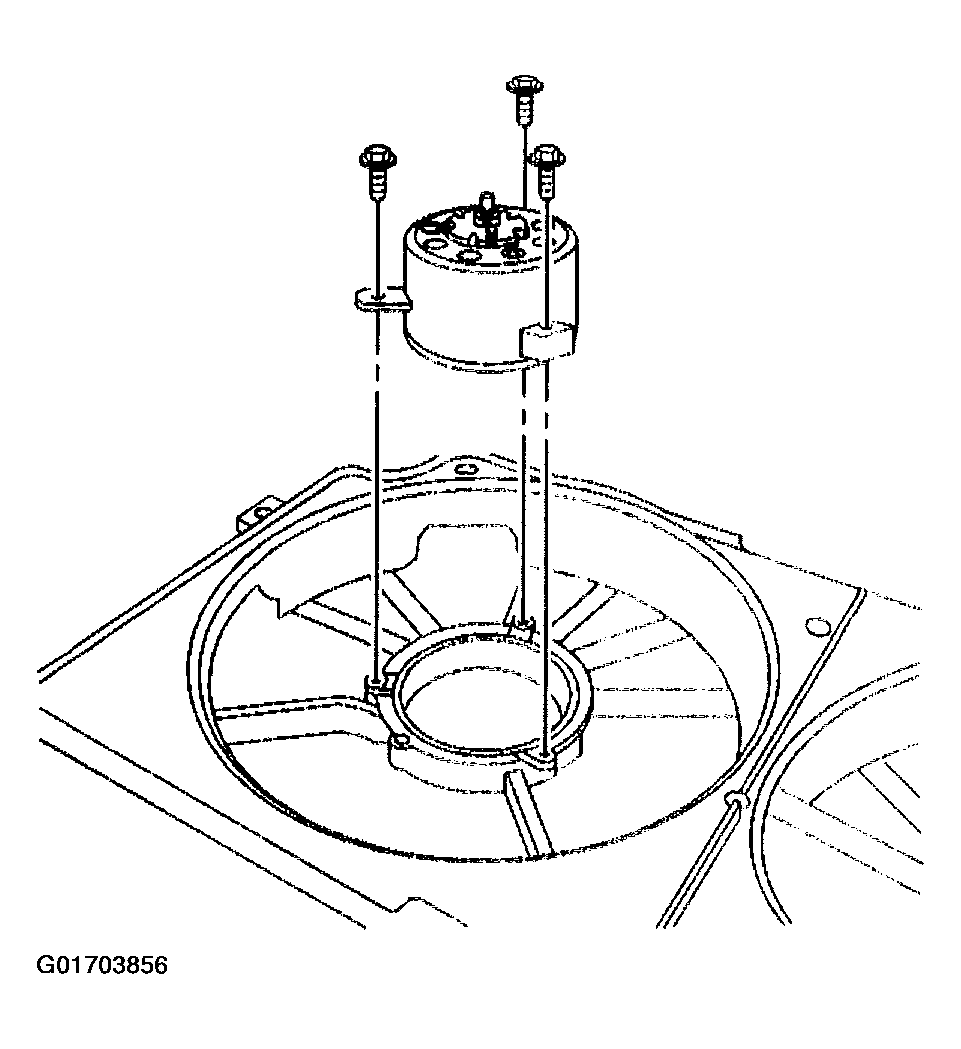

    Fig 1: Engine Cooling Fan Motor & Bolts
    G01703856Courtesy of GENERAL MOTORS CORP.
  3. Install the engine cooling fan blade.
  4. Install the engine cooling fan blade nut.

    Tighten

    Tighten the nut to 6 N.m (53 Ib in).

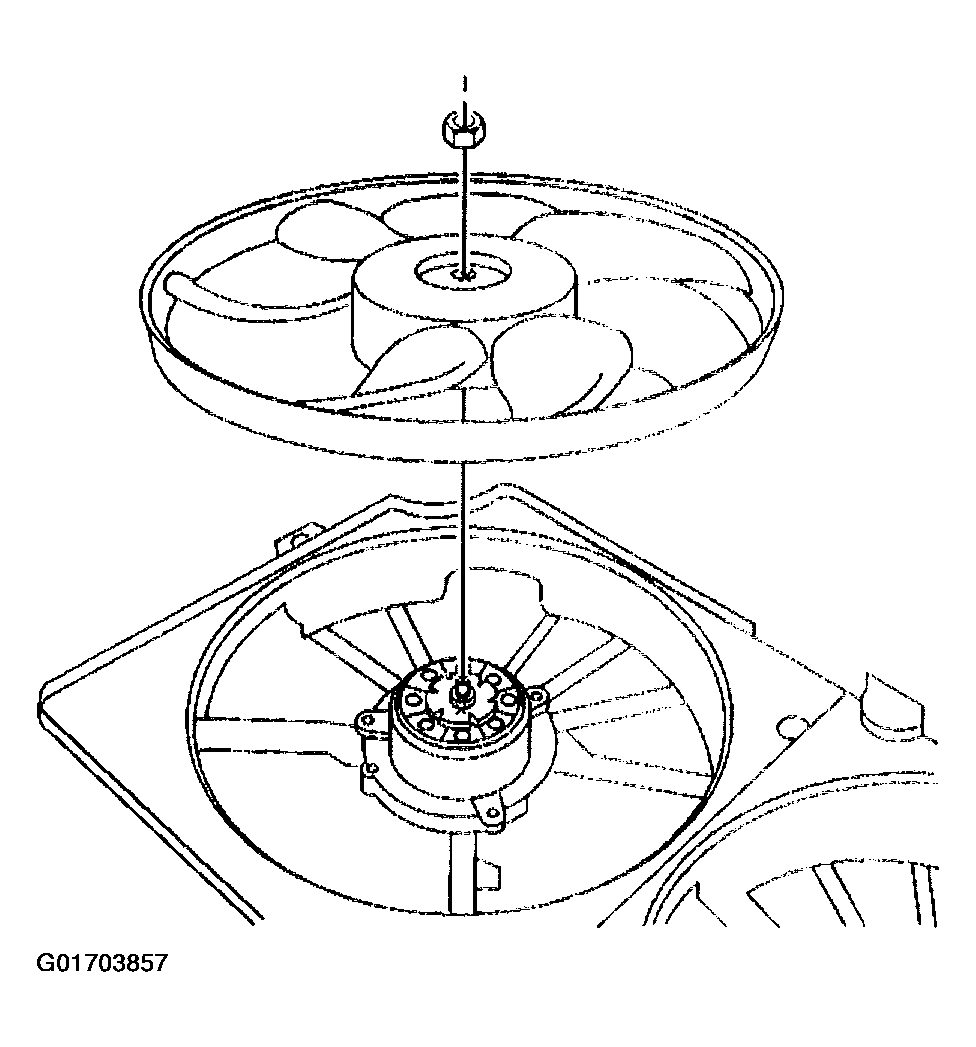

    Fig 2: Engine Cooling Fan Blade & Nut
    G01703857Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine cooling fan motor electrical connectors.
  6. Install the engine cooling fan heat shields.
  7. Install the engine cooling fan assembly. Refer to Cooling Fan Replacement - Electric .

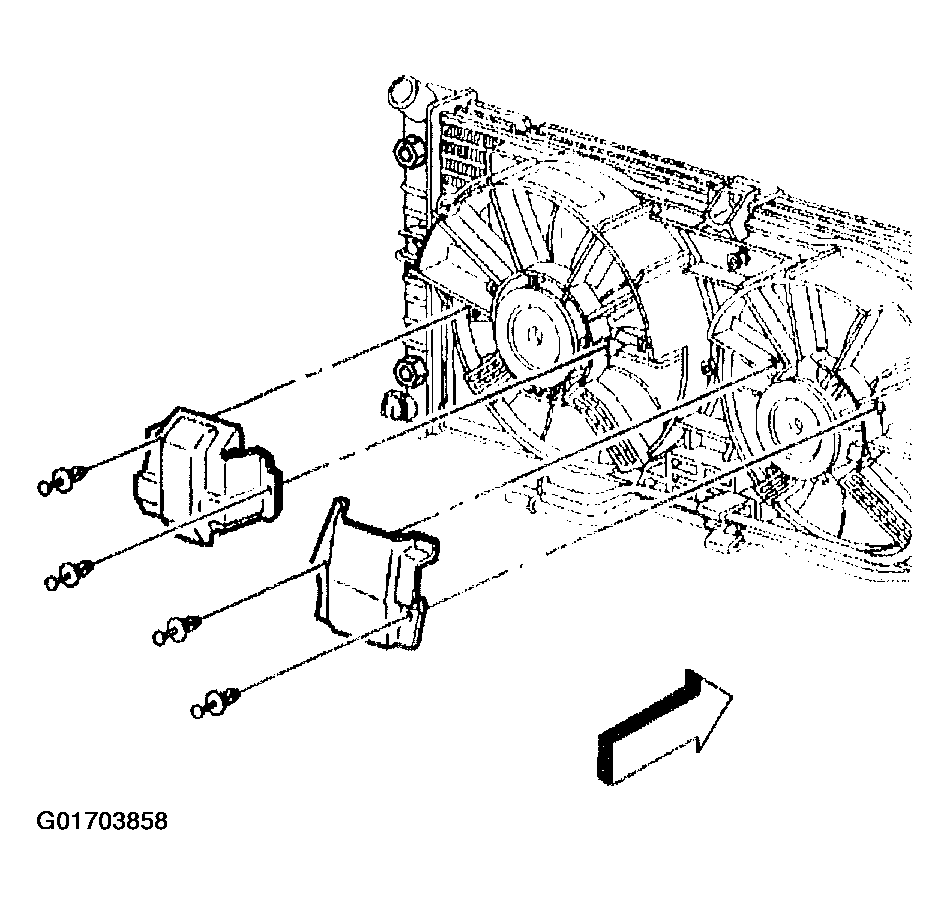

    Fig 3: Engine Cooling Fan Heat Shields
    G01703858Courtesy of GENERAL MOTORS CORP.
