Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coolant heater cord retainer from the upper radiator support.
  2. Cut the coolant heater cord straps at the engine wiring harness.
  3. Disconnect the coolant heater cord from the coolant heater.
  4. Remove the coolant heater cord from the vehicle.

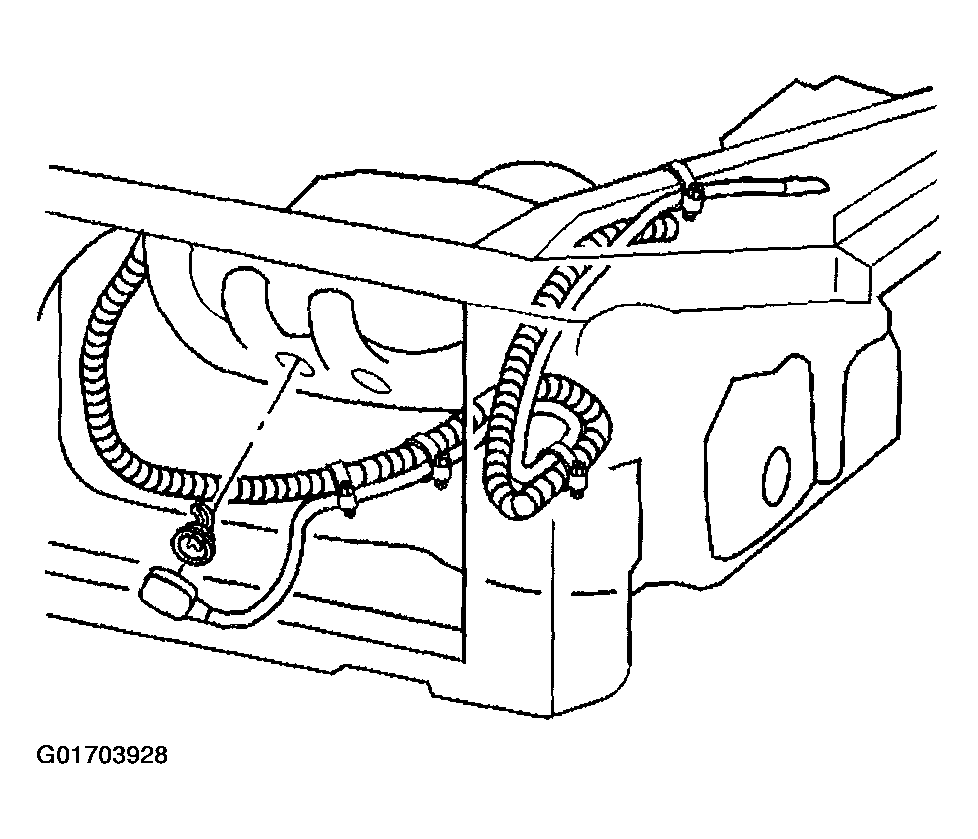

    Fig 1: Coolant Heater & Cord
    G01703928Courtesy of GENERAL MOTORS CORP.
