Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring (3), the spring and the PCV valve (2).
  2. Install the PCV valve access cover (1).
    NOTE: Refer to FASTENER NOTICE .
  3. While holding down on the PCV valve access cover, install the access cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)  or Fuel Injector Sight Shield Replacement (L67) .

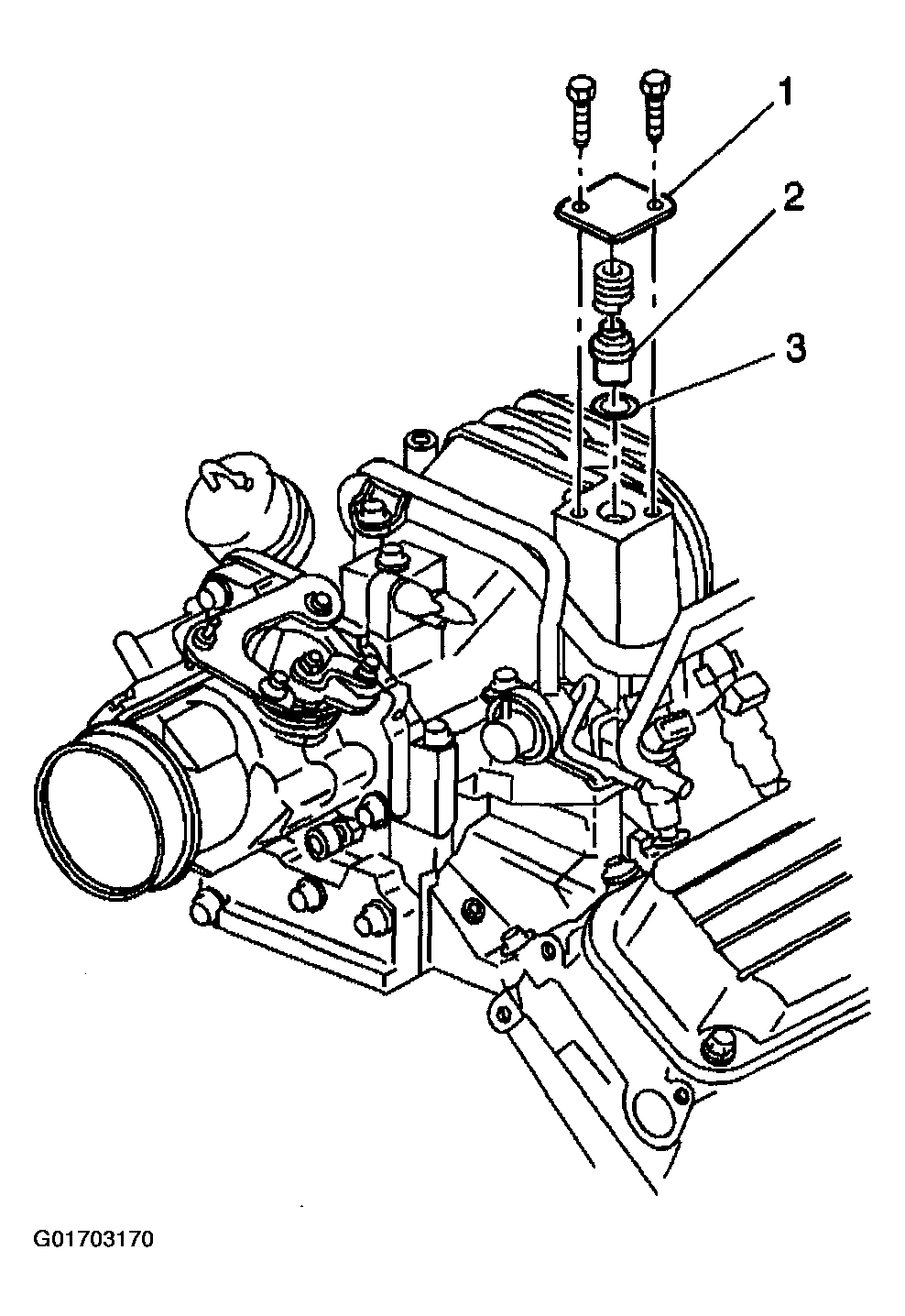

    Fig 1: PCV Valve, Access Cover & O-Ring (L67)
    G01703170Courtesy of GENERAL MOTORS CORP.
