Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Disconnect the engine oil pressure sensor electrical connector.
  3. Remove the engine oil pressure sensor.

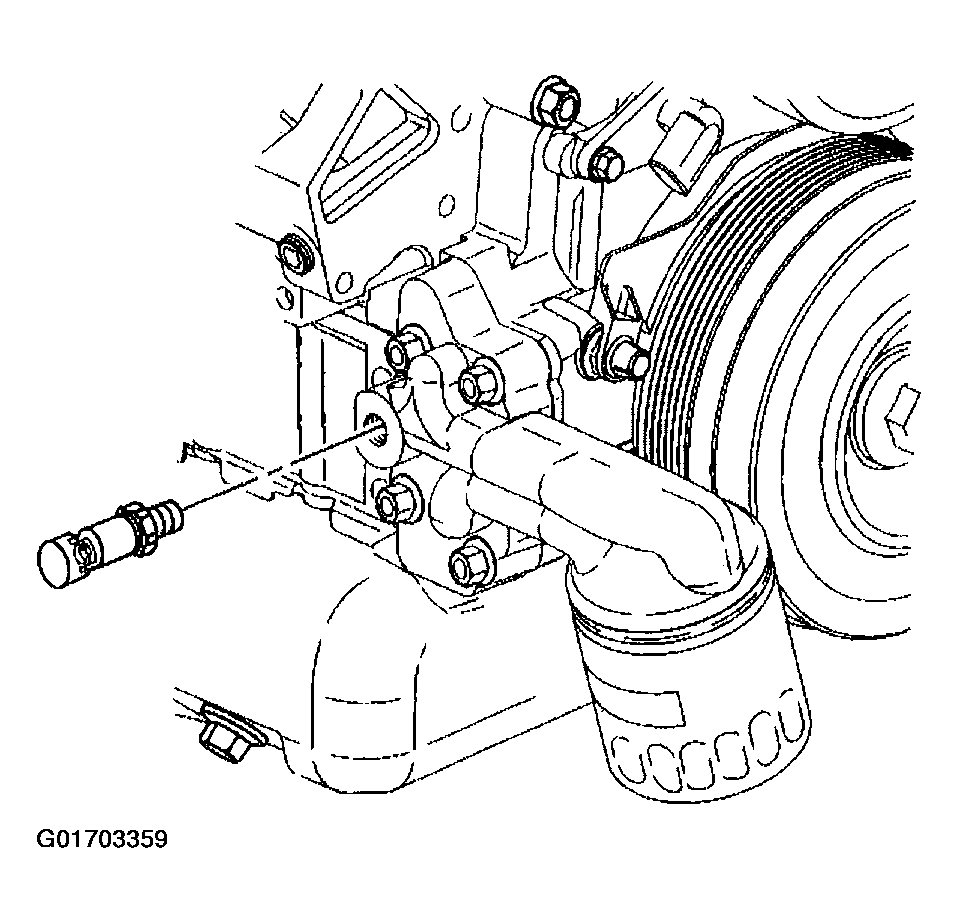

    Fig 1: Engine Oil Pressure Sensor
    G01703359Courtesy of GENERAL MOTORS CORP.
