Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.

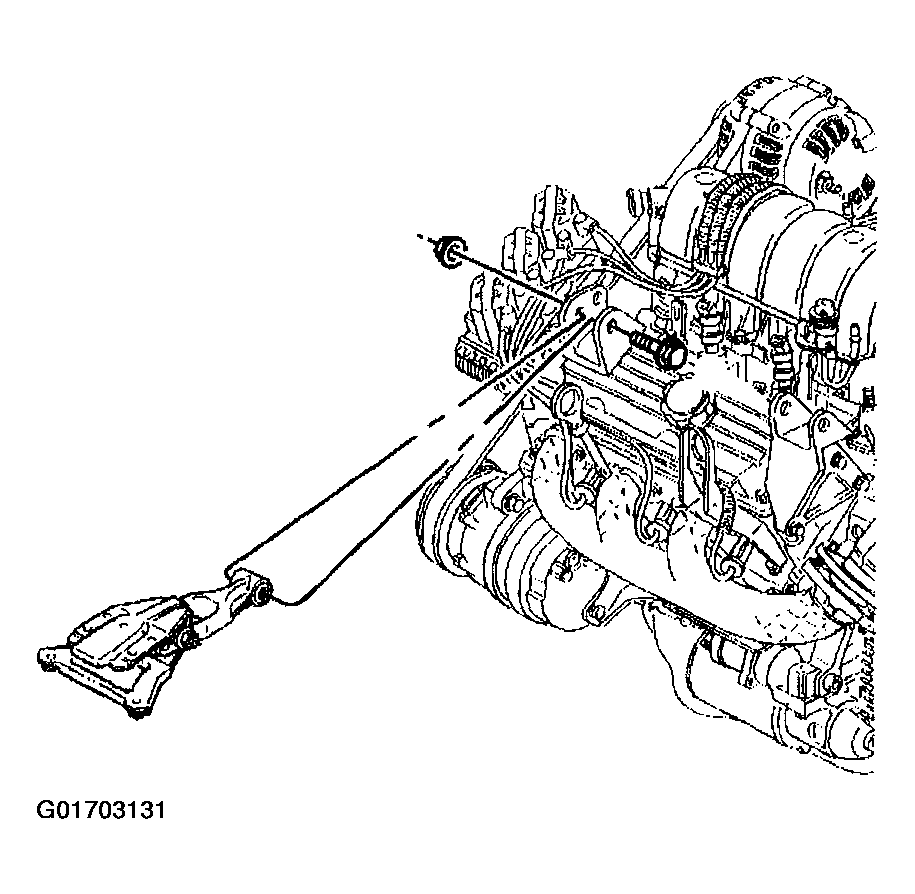

    Fig 1: Right Engine Mount Strut
    G01703131Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
      Fig 2: Right Engine Mount Strut & Bracket
      G01703132Courtesy of GENERAL MOTORS CORP.
