Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the upper radiator support.

    Tighten

    Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

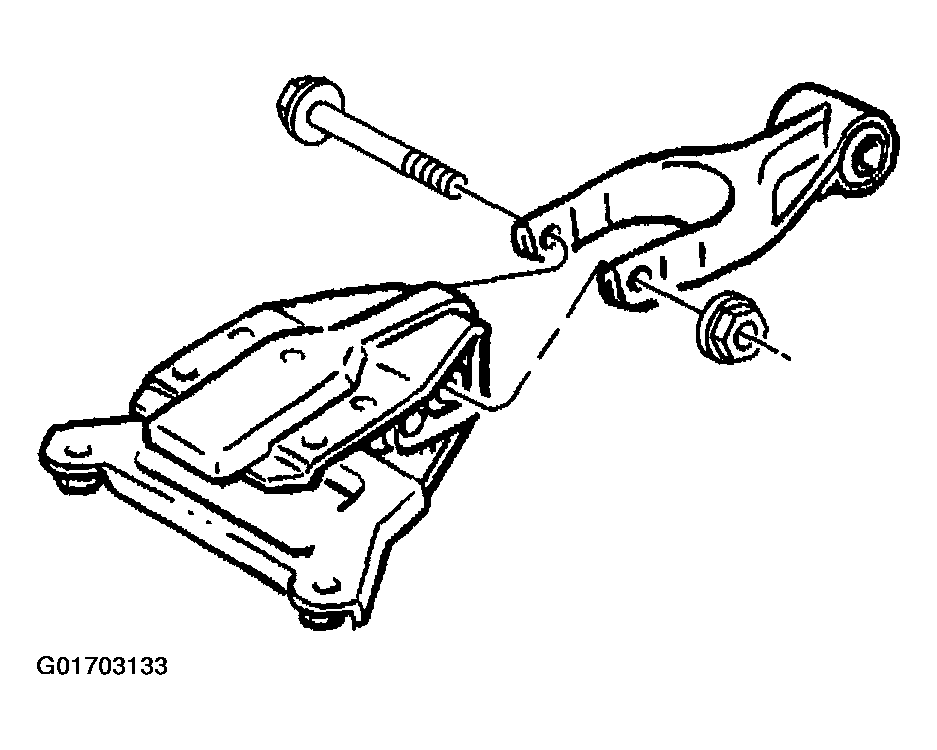

    Fig 1: Right Engine Mount Strut & Bracket
    G01703133Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).

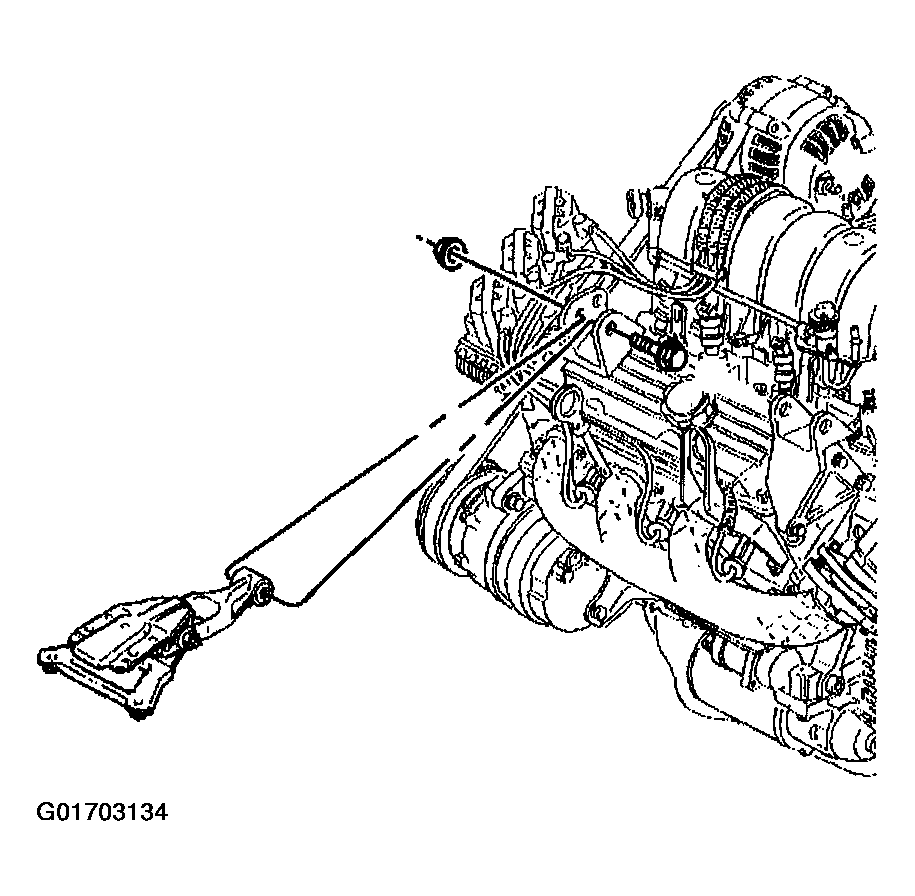

    Fig 2: Right Engine Mount Strut
    G01703134Courtesy of GENERAL MOTORS CORP.
