Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut(s) from the engine mount strut bracket(s) at the upper radiator support. Refer to Engine Mount Strut Replacement - Left  and/or Engine Mount Strut Replacement - Right .

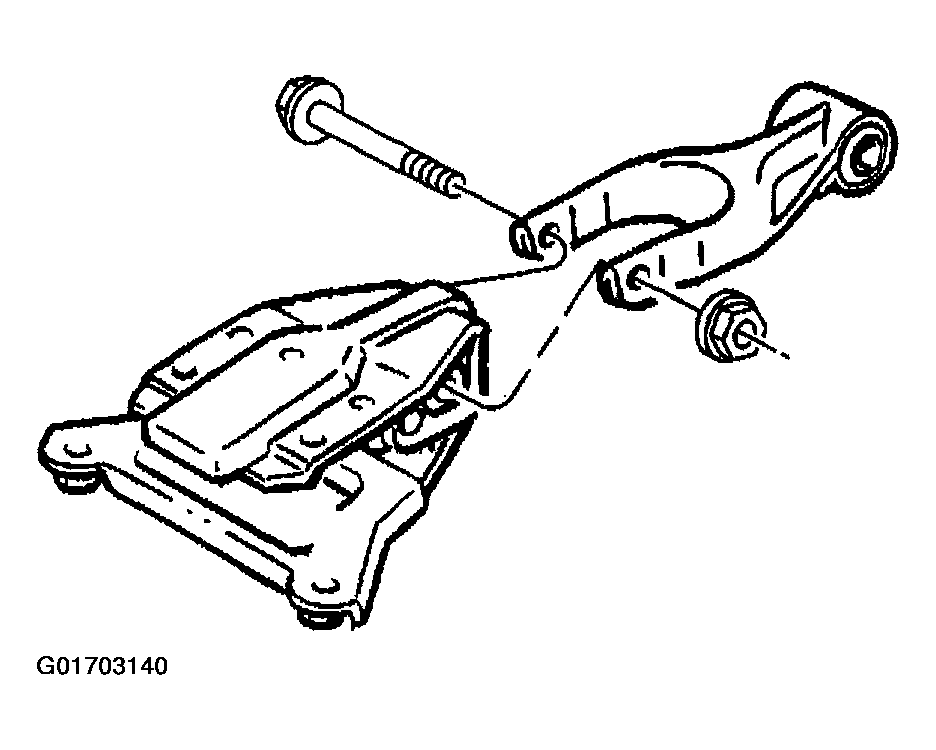

    Fig 1: Engine Mount Strut & Bracket
    G01703140Courtesy of GENERAL MOTORS CORP.
  2. Remove the 4 bolts from the engine mount strut bracket to the upper radiator support.
  3. Remove the engine mount strut bracket from the upper radiator support.

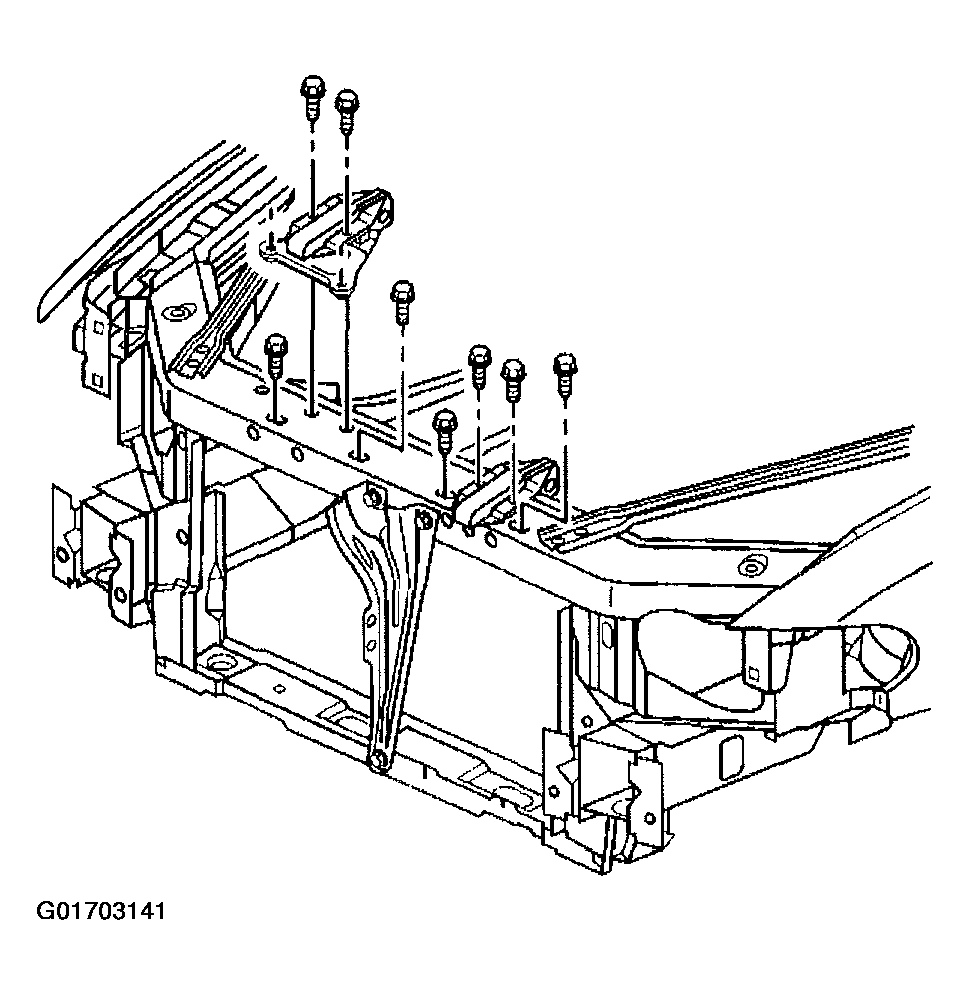

    Fig 2: Engine Mount Strut Bracket
    G01703141Courtesy of GENERAL MOTORS CORP.
