Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine mount strut bracket over the upper radiator support so the engine mount strut bracket and the engine mount strut are aligned. Align the engine mount strut bracket with the proper holes of the upper radiator support.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 4 bolts through the engine mount strut bracket to the upper radiator support.

    Tighten

    Tighten the engine mount strut bracket bolts to 28 N.m (21 lb ft).

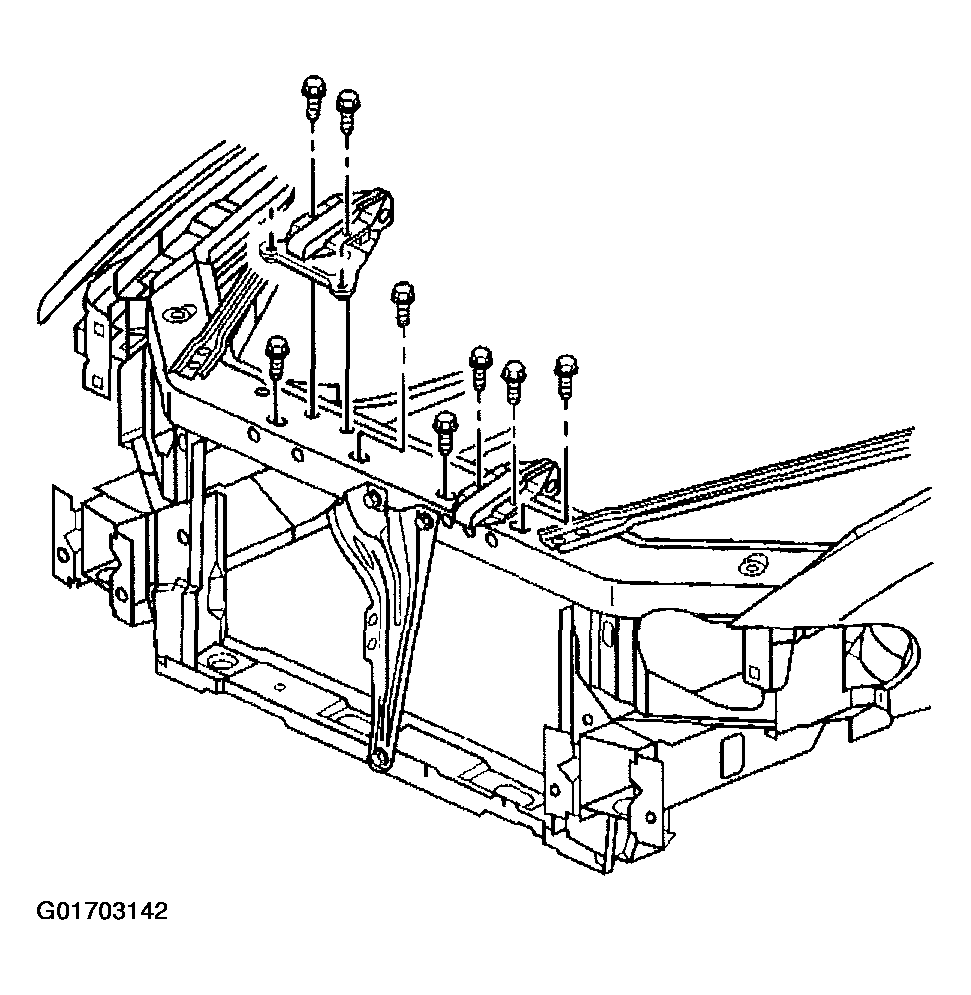

    Fig 1: Engine Mount Strut Bracket
    G01703142Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut(s) to the engine mount strut bracket(s) at the upper radiator support. Refer to Engine Mount Strut Replacement - Left  and/or Engine Mount Strut Replacement - Right .
    Fig 2: Engine Mount Strut & Bracket
    G01703143Courtesy of GENERAL MOTORS CORP.
