Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the ignition coil. Refer to IGNITION COILS .
  3. Remove the supercharger drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .

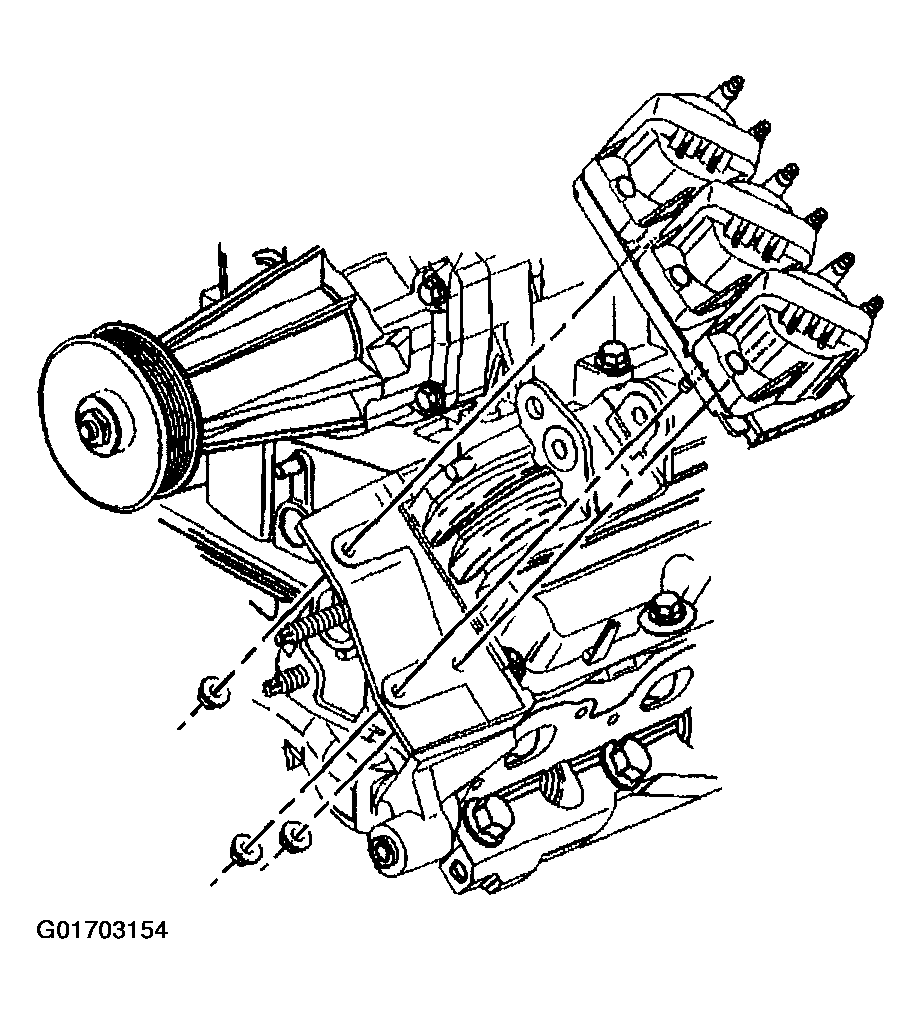

    Fig 1: Electronic Ignition Control Module
    G01703154Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper supercharger drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement - Upper .

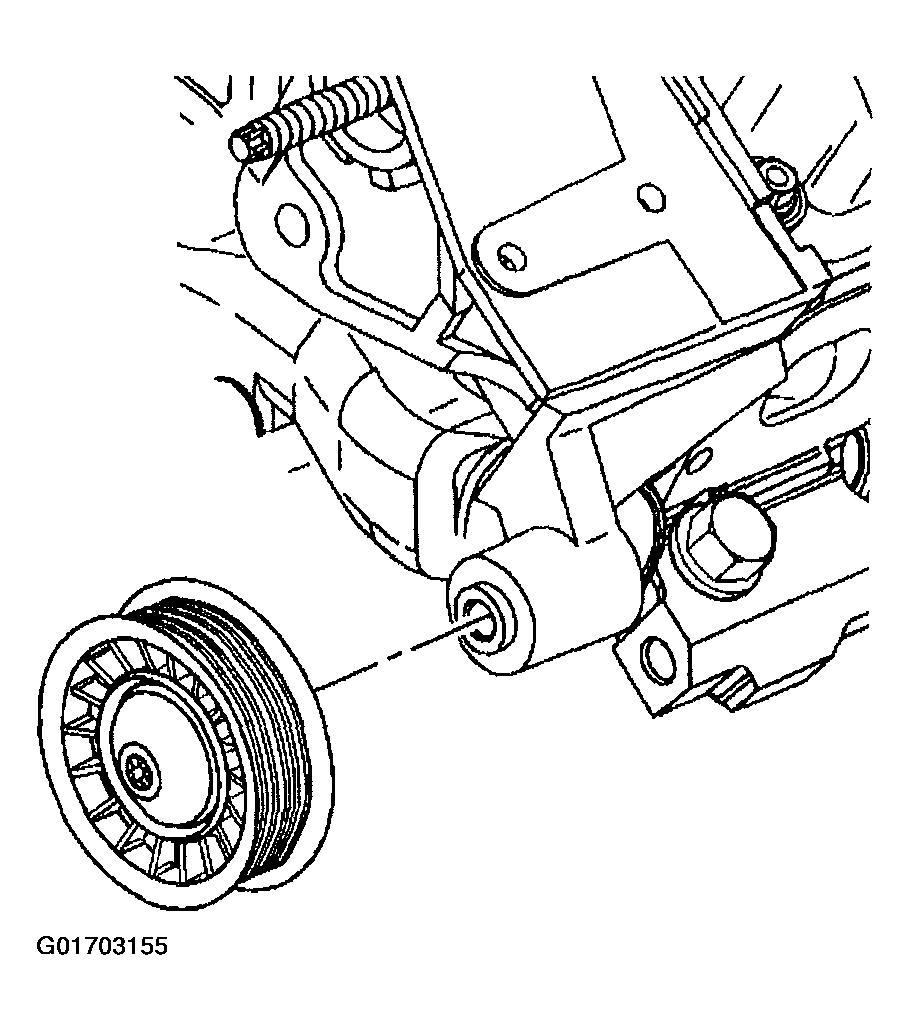

    Fig 2: Supercharger Drive Belt Idler Pulley
    G01703155Courtesy of GENERAL MOTORS CORP.
  5. Remove the supercharger drive belt tensioner. Refer to Drive Belt Tensioner Replacement (L36)  or Drive Belt Tensioner Replacement (L67) .

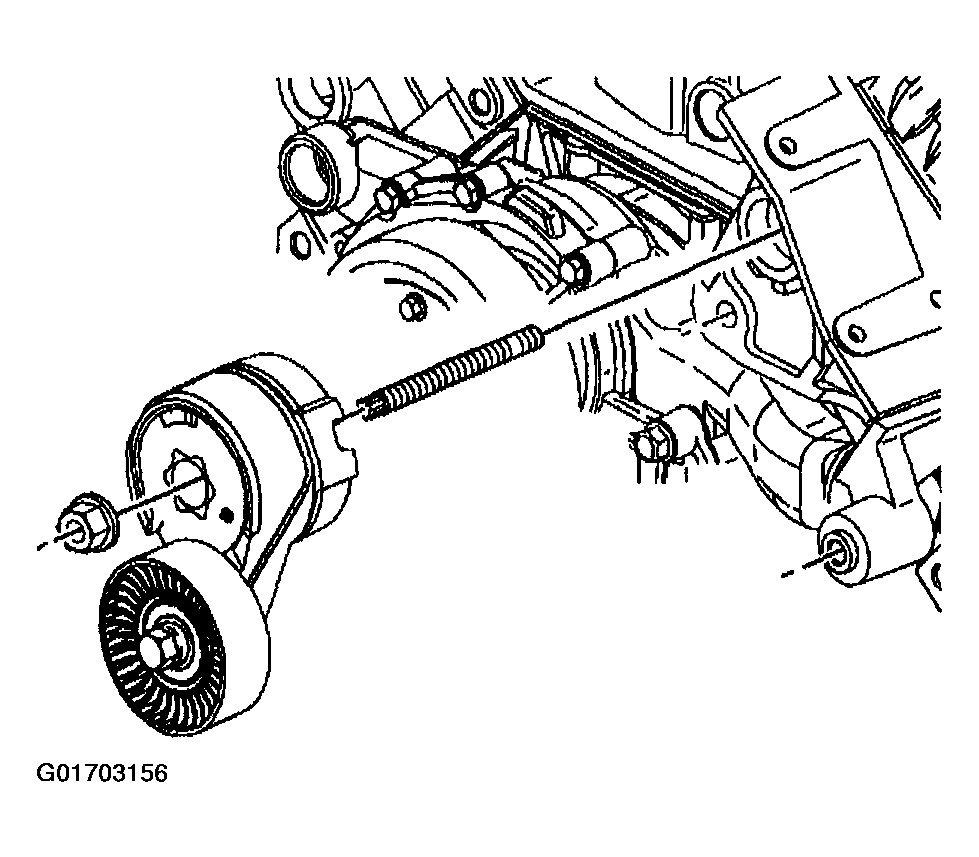

    Fig 3: Supercharger Drive Belt Tensioner
    G01703156Courtesy of GENERAL MOTORS CORP.
  6. Remove the right engine mount strut at the right engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement - Left  and Engine Mount Strut Replacement - Right .

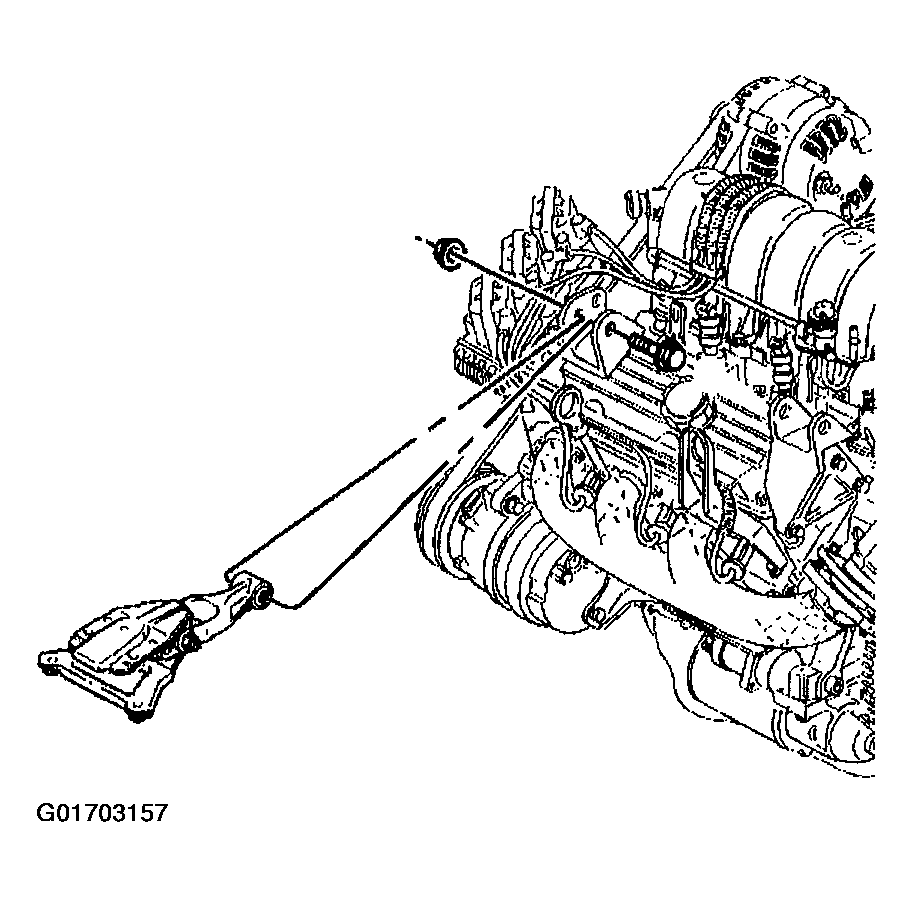

    Fig 4: Right Engine Mount Strut
    G01703157Courtesy of GENERAL MOTORS CORP.
  7. Remove the right engine mount strut bracket nuts and stud.
  8. Remove the right engine mount strut bracket from the cylinder head.

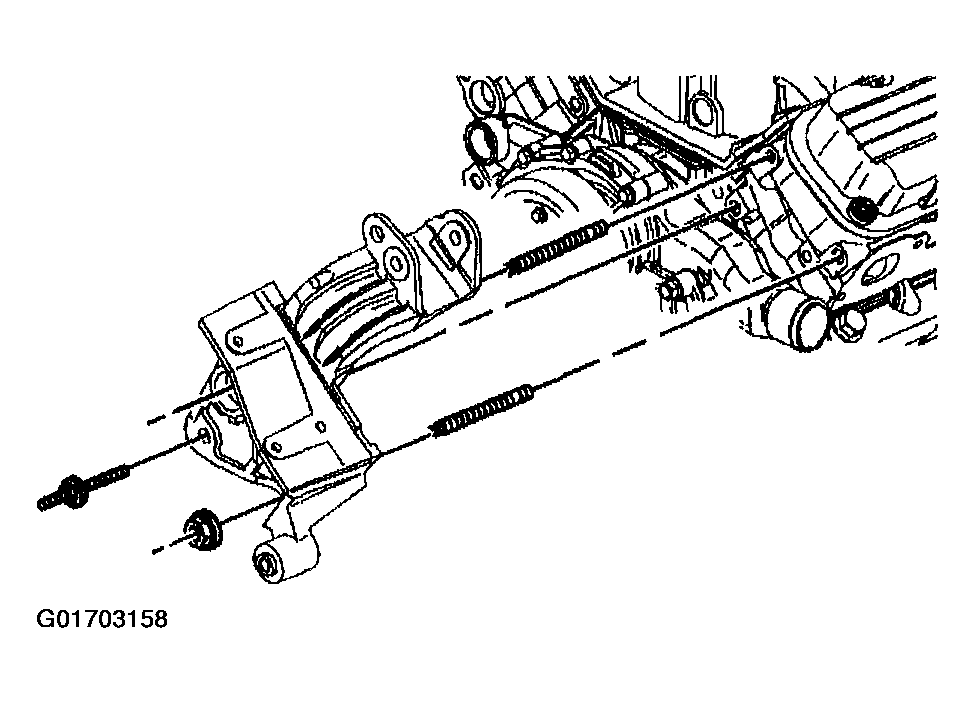

    Fig 5: Right Engine Mount Strut Bracket
    G01703158Courtesy of GENERAL MOTORS CORP.
