Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the right engine mount strut bracket to the cylinder head.

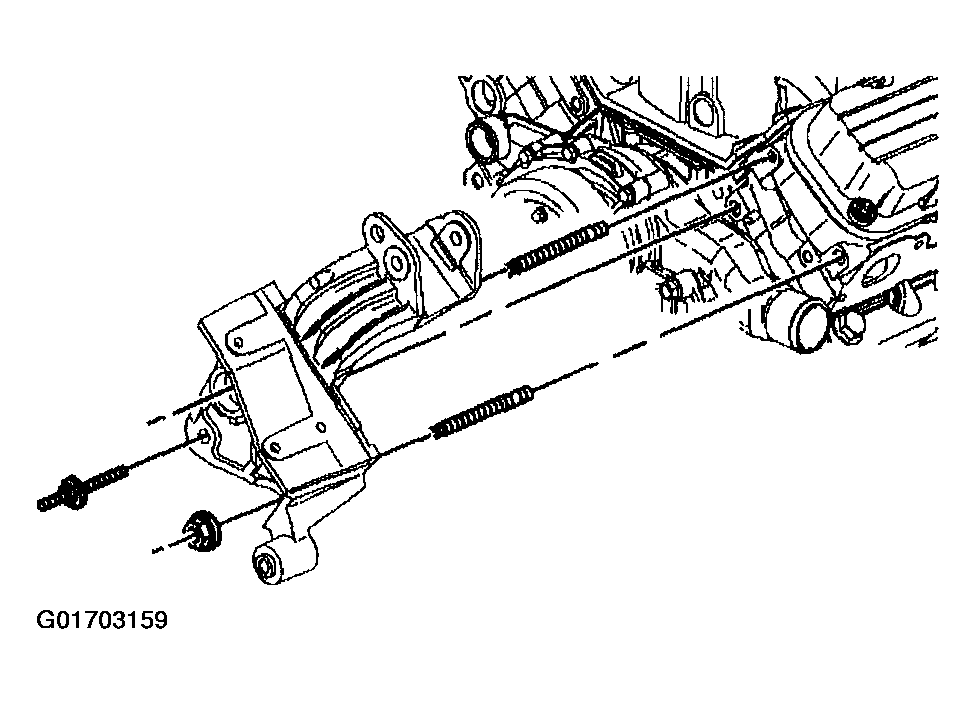

Fig 1: Right Engine Mount Strut Bracket
Courtesy of GENERAL MOTORS CORP.
Install the electronic ignition module harness assembly to the stud, as shown.
NOTE: Refer to FASTENER NOTICE .
Install the right engine mount strut bracket nuts and stud.
Tighten

Tighten the right engine mount strut bracket nuts and stud to 50 N.m (37 lb ft).

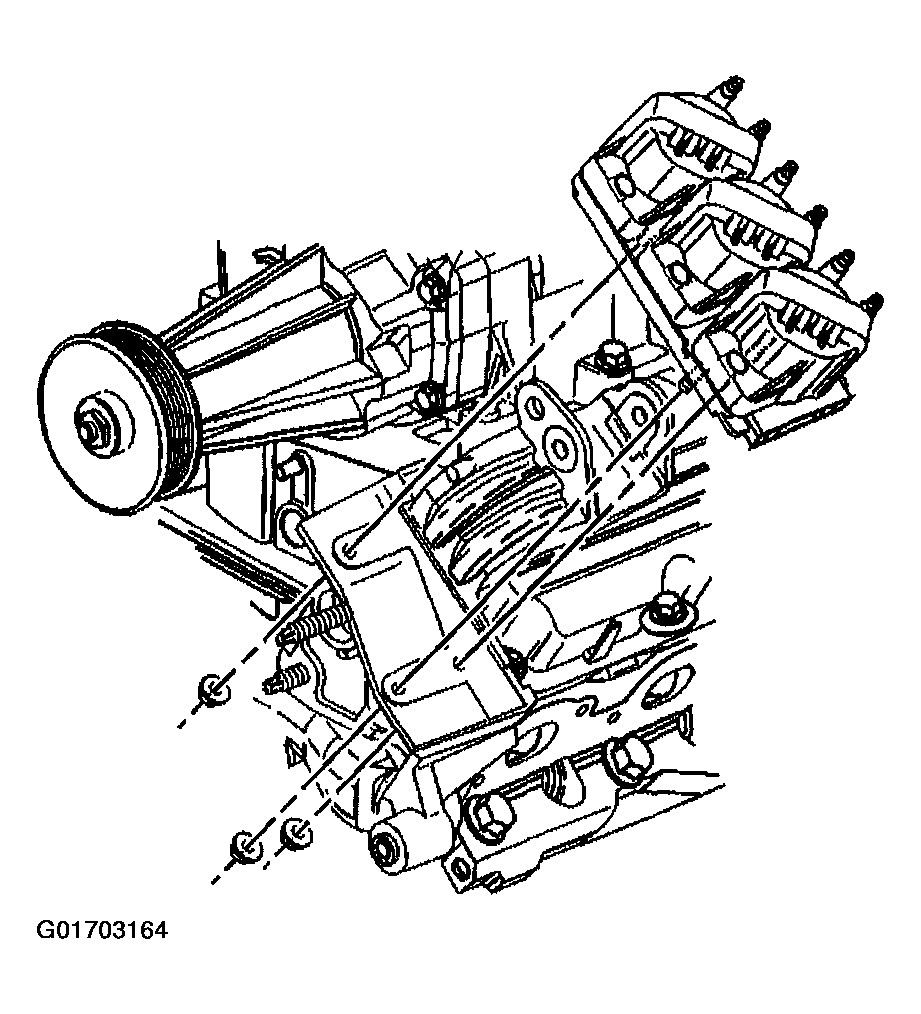

Fig 2: Installing Electronic Ignition Module Harness Assembly
Courtesy of GENERAL MOTORS CORP.
Install the right engine mount strut to the right engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left and Engine Mount Strut Replacement - Right .

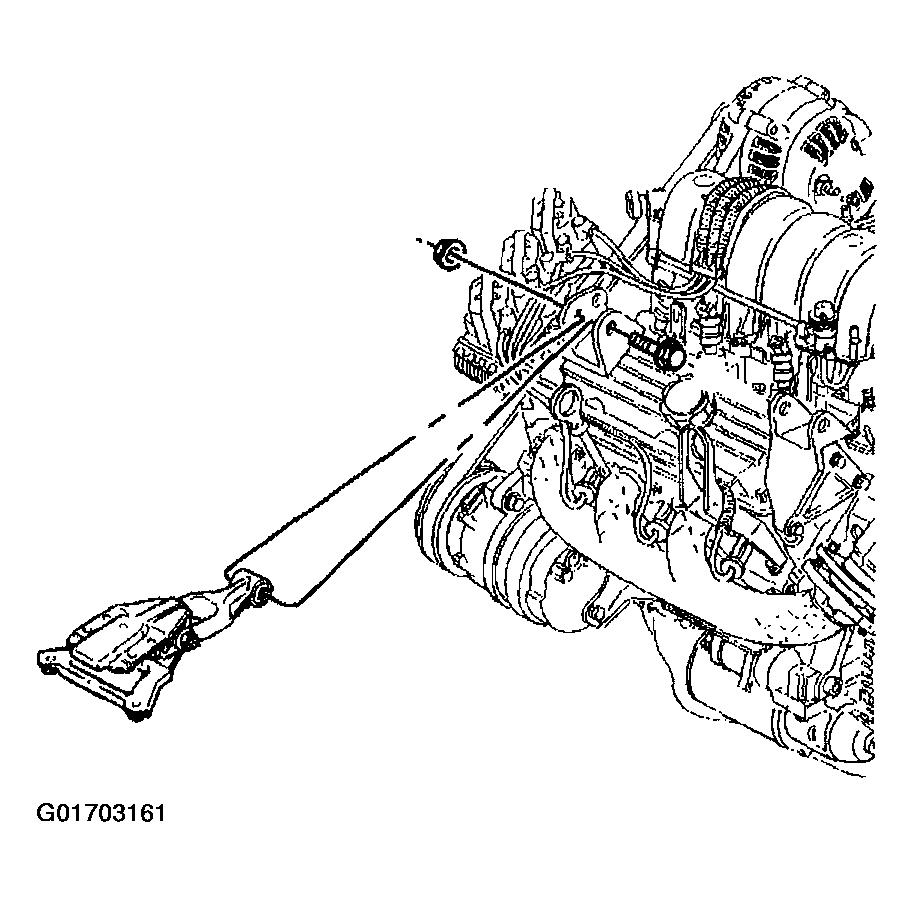

Fig 3: Right Engine Mount Strut
Courtesy of GENERAL MOTORS CORP.
Install the supercharger drive belt tensioner. Refer to Drive Belt Tensioner Replacement (L36) or Drive Belt Tensioner Replacement (L67) .

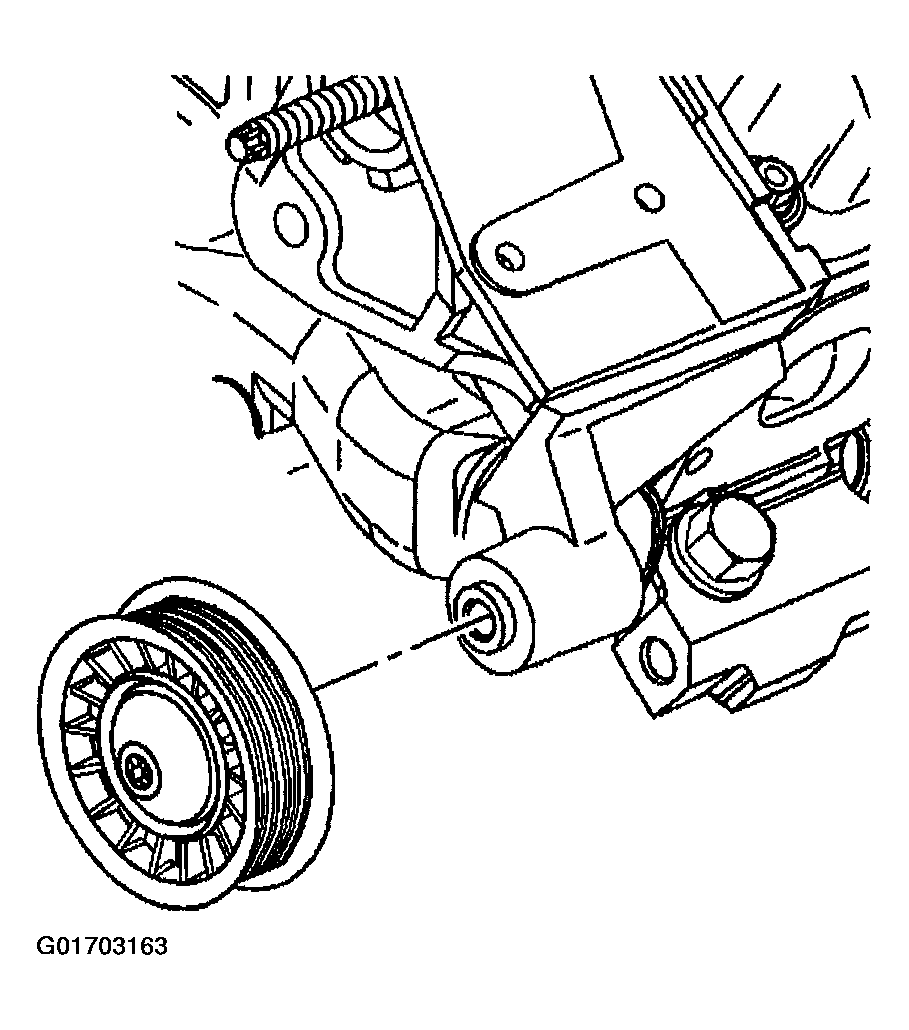

Fig 4: Supercharger Drive Belt Tensioner
Courtesy of GENERAL MOTORS CORP.
Install the upper supercharger drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement - Upper .
Install the supercharger drive belt. Refer to Drive Belt Replacement (L36) or Drive Belt Replacement (L67) .

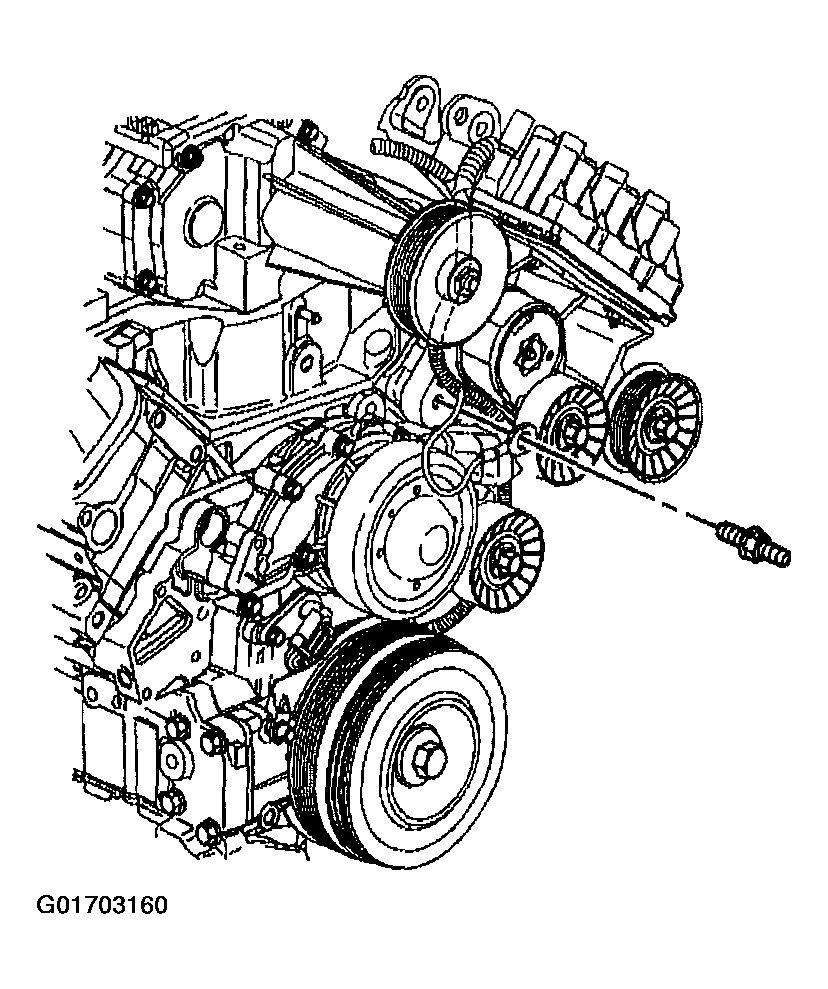

Fig 5: Supercharger Drive Belt Pulley
Courtesy of GENERAL MOTORS CORP.
Install the ignition coil. Refer to IGNITION COILS in Engine Controls - 3.8L.
Connect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

Fig 6: Electronic Ignition Control Module
Courtesy of GENERAL MOTORS CORP.
