Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper engine mount strut bracket.
NOTE: Refer to FASTENER NOTICE .
Install the upper engine mount strut bracket bolts.
Tighten

Tighten the upper engine mount strut bracket bolts to 50 N.m (37 lb ft).
Install the EVAP emissions canister purge valve. Refer to EVAP CANISTER PURGE SOLENOID .
Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36) or Fuel Injector Sight Shield Replacement (L67) .

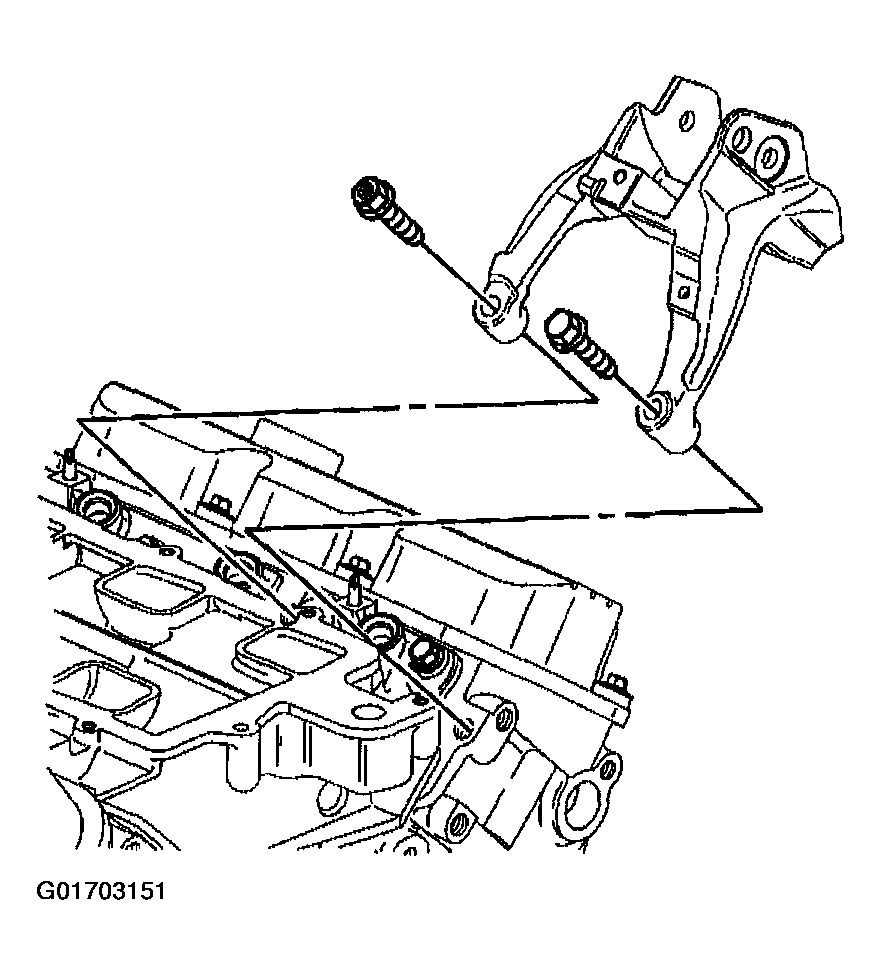

Fig 1: Upper Engine Mount Strut Bracket
Courtesy of GENERAL MOTORS CORP.
Install the lower engine mount strut bracket bolts.
- Tighten the lower engine mount strut bracket nut.
  Tighten

  Tighten the lower engine mount strut bracket nut to 30 N.m (22 lb ft).
- Tighten the lower engine mount strut bracket bolts.
  Tighten

  Tighten the lower engine mount strut bracket bolts to 50 N.m (37 lb ft).

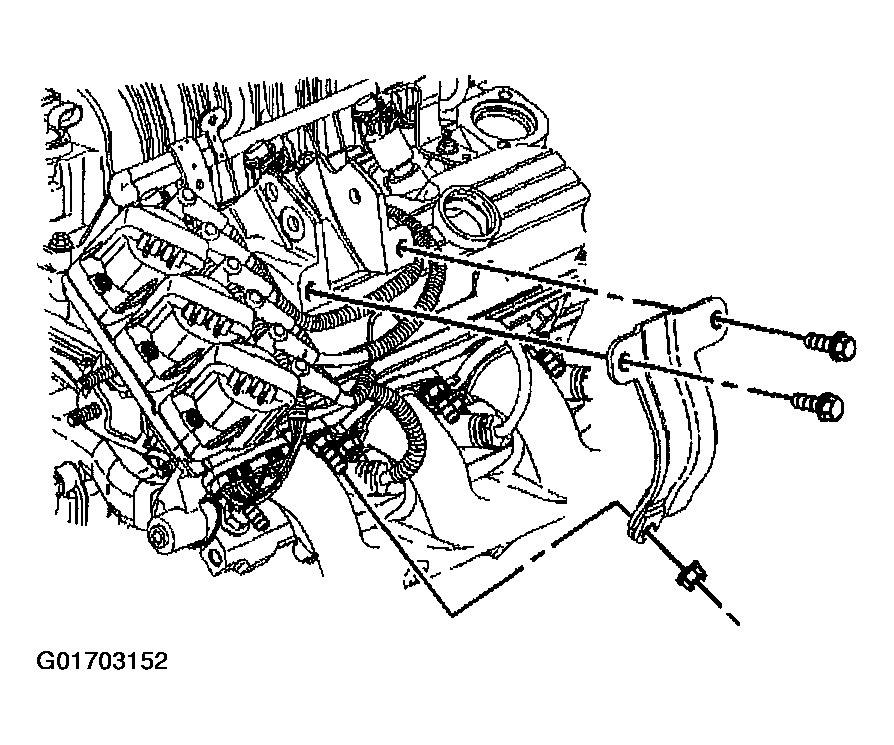

  Fig 2: Lower Engine Mount Strut Bracket
  Courtesy of GENERAL MOTORS CORP.
Install the right engine mount strut at the upper engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left and Engine Mount Strut Replacement - Right .
Connect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

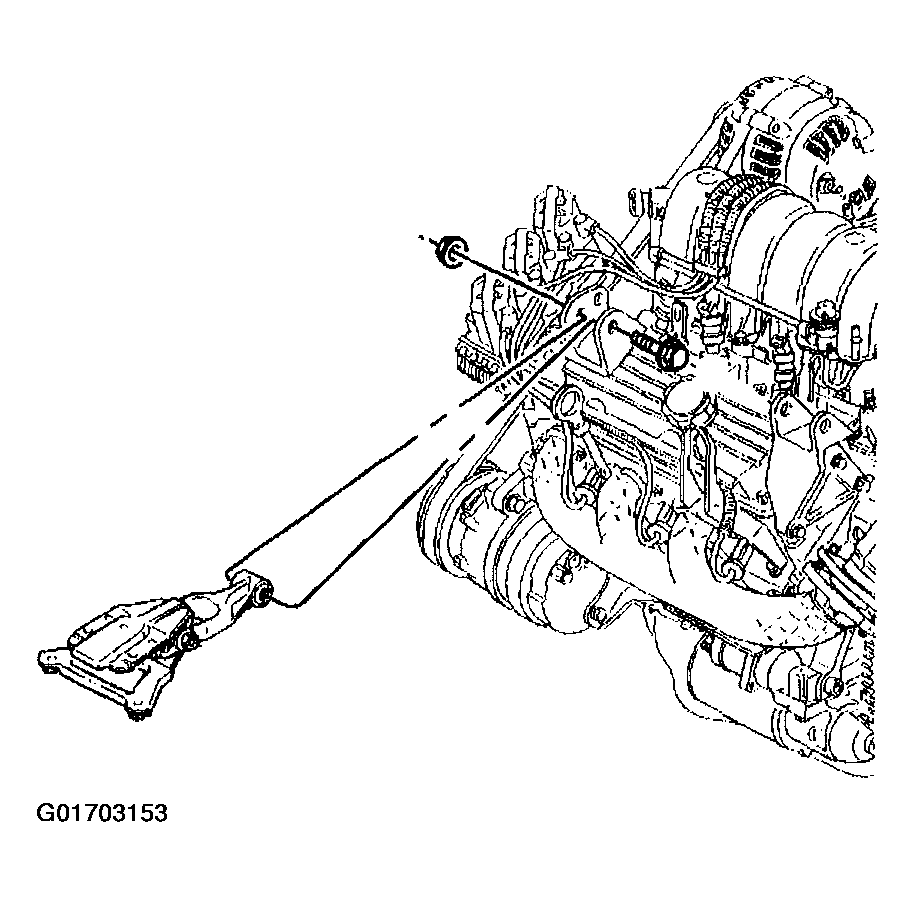

Fig 3: Right Engine Mount Strut
Courtesy of GENERAL MOTORS CORP.
