Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the lower engine mount strut bracket bolts.
  3. Remove the lower engine mount bracket nut.
  4. Remove the lower engine mount bracket.

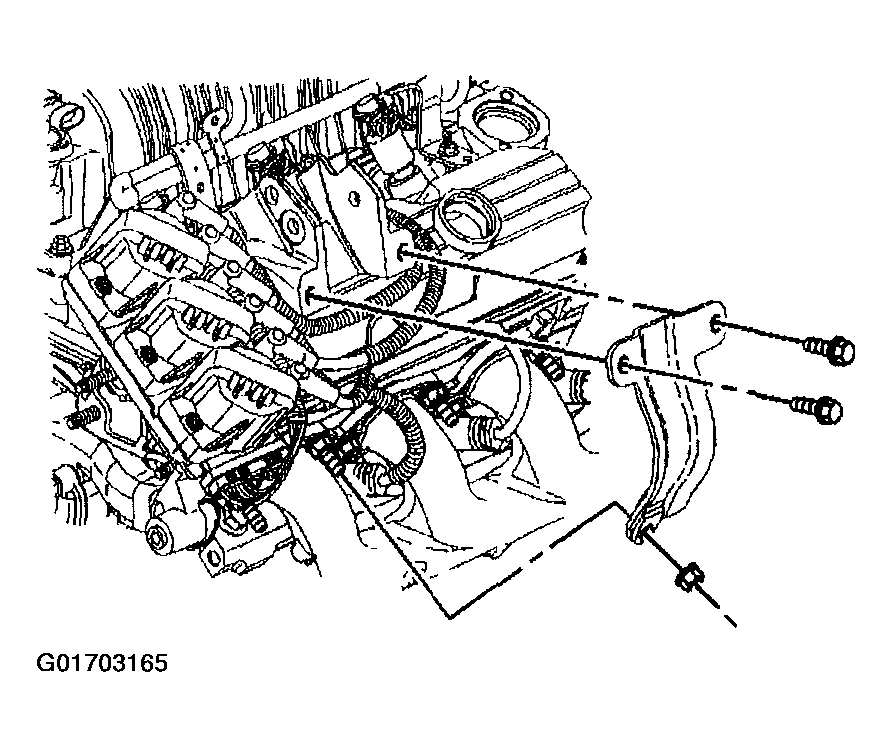

    Fig 1: Right Lower Engine Mount Bracket
    G01703165Courtesy of GENERAL MOTORS CORP.
