Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut bracket to the head.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine mount strut bracket bolts.

    Tighten

    Tighten the engine mount strut bracket bolts to 50 N.m (37 lb ft).

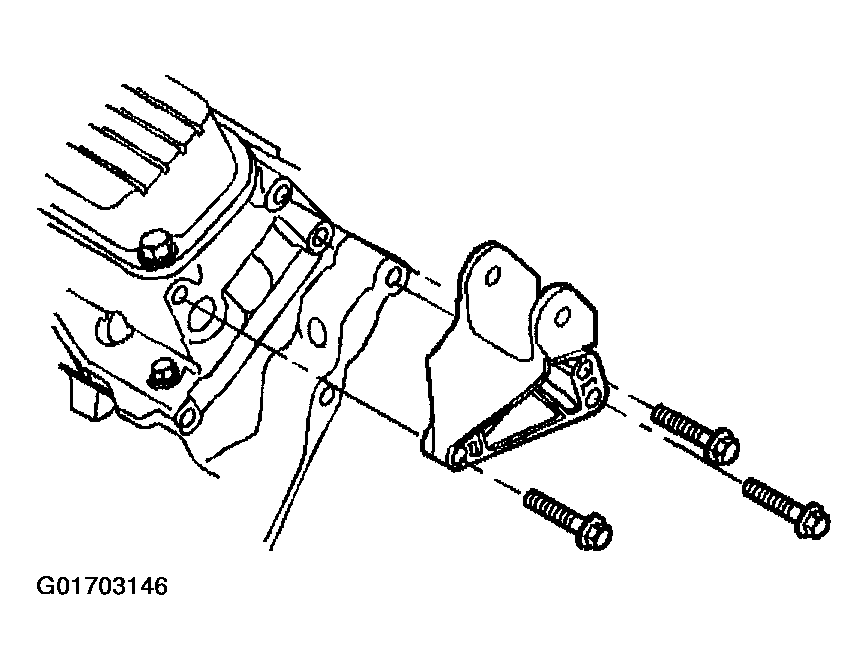

    Fig 1: Left Engine Mount Strut Bracket
    G01703146Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut to the left engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left  and Engine Mount Strut Replacement - Right .
  4. Install the radiator support clamp to the engine mount strut bolt.
  5. Install the engine coolant temperature sensor. Refer to ENGINE COOLANT TEMPERATURE SENSOR .
  6. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .

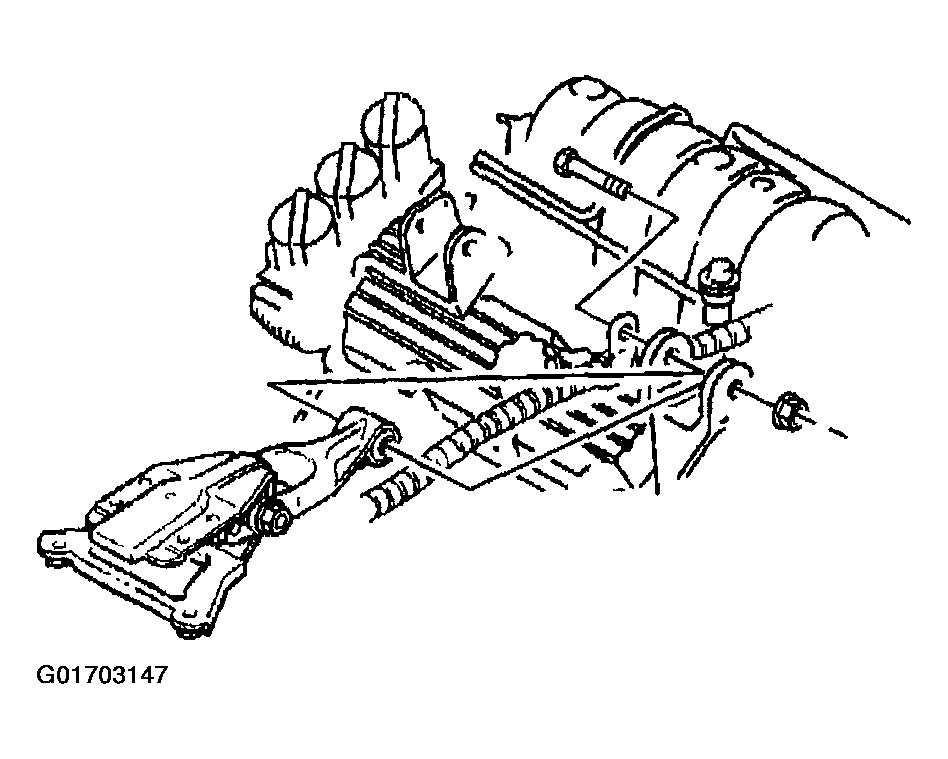

    Fig 2: Left Engine Mount Strut
    G01703147Courtesy of GENERAL MOTORS CORP.
