Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. Refer to TRANSAXLE .
  2. Use the J 37096  in order to prevent crankshaft rotation.

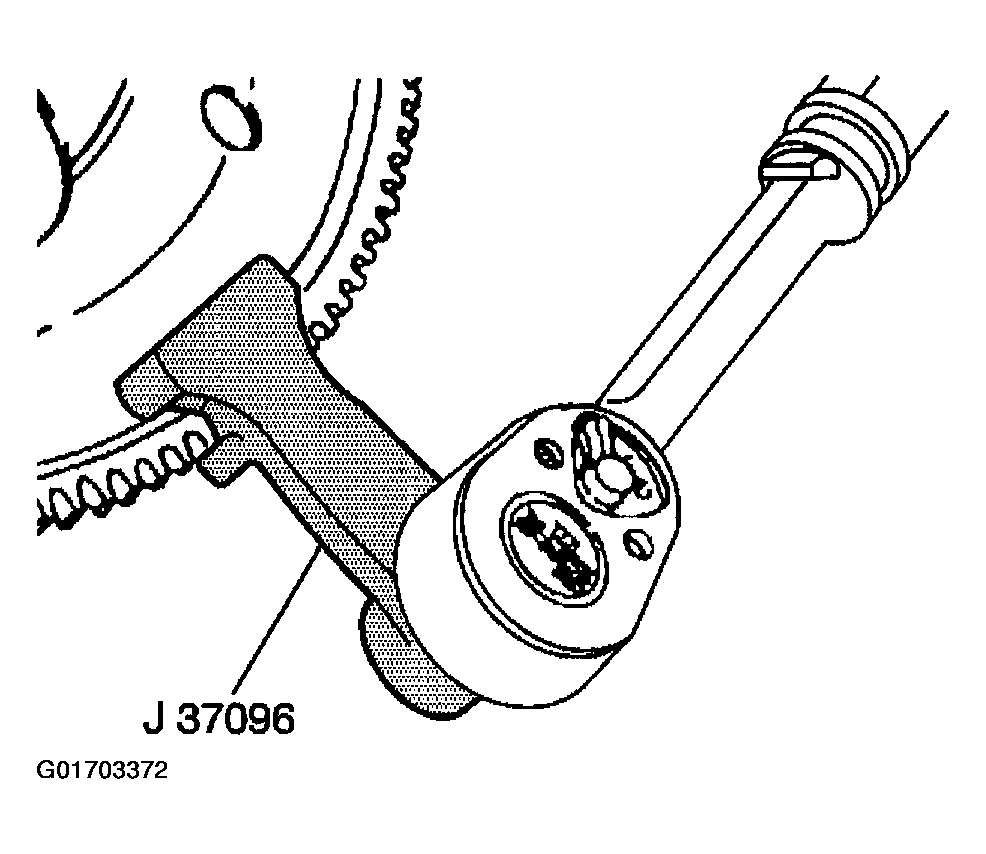

    Fig 1: Preventing Crankshaft Rotation
    G01703372Courtesy of GENERAL MOTORS CORP.
  3. Loosen the 8 engine flywheel bolts.
  4. Remove 7 of the 8 engine flywheel bolts, leaving one bolt at the top of the crankshaft rotation.
  5. Firmly grasp the engine flywheel and remove the remaining bolt. Do not drop the engine flywheel when removing the final bolt.
  6. Remove the engine flywheel.

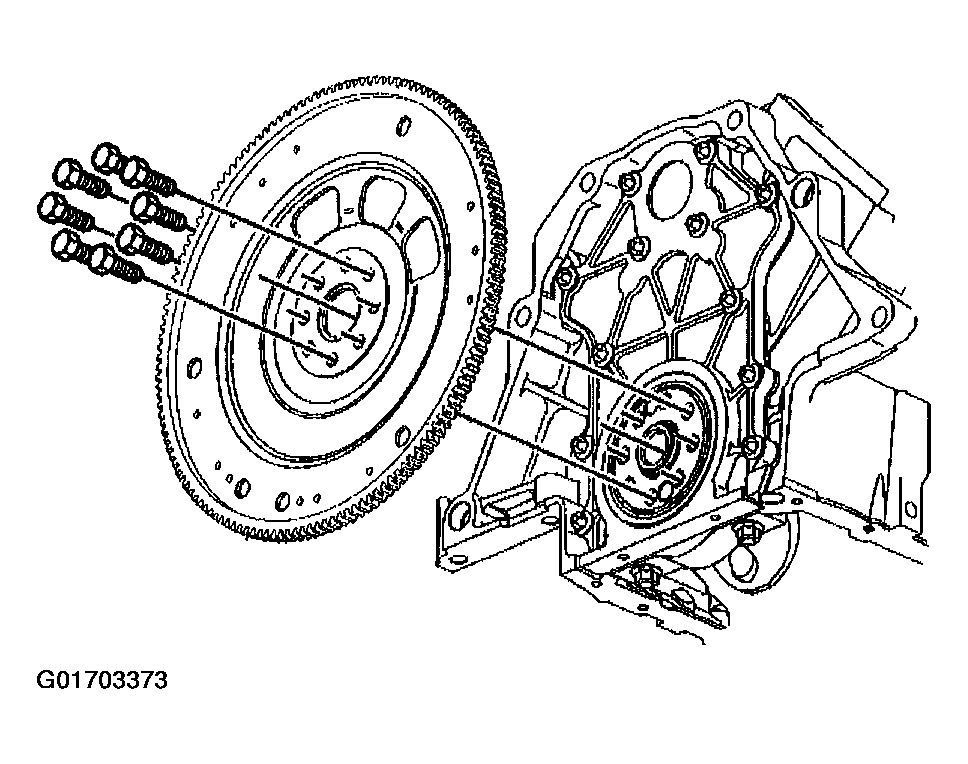

    Fig 2: Engine Flywheel
    G01703373Courtesy of GENERAL MOTORS CORP.
