Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  3. Remove the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  4. Remove the drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .
  5. Remove the generator. Refer to GENERATOR .
  6. Remove the heater hose adapters with the heater hoses from the drive belt tensioner. Refer to HEATER HOSE REPLACEMENT - INLET (3.1L) or HEATER HOSE REPLACEMENT - INLET (3.8L) and to HEATER HOSE REPLACEMENT - OUTLET (3.1 L) or HEATER HOSE REPLACEMENT - OUTLET (3.8L) .
  7. Remove the accessory drive belt tensioner bolts.
  8. Remove the accessory drive belt tensioner.
  9. If replacing the drive belt tensioner, remove the thermostat bypass upper and lower pipe assemblies.

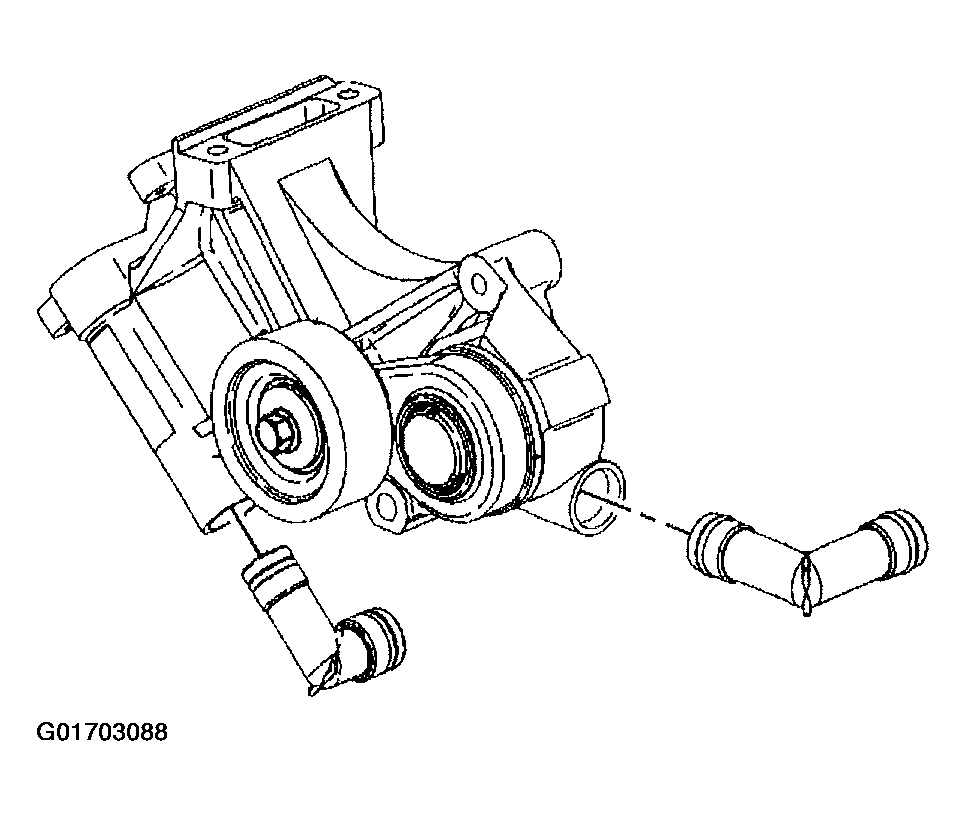

    Fig 1: Thermostat Bypass Upper & Lower Pipe Assemblies
    G01703088Courtesy of GENERAL MOTORS CORP.
