Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift or rotate the drive belt tensioner using a 15 mm box end wrench on the pulley nut.
  2. Install the drive belt.

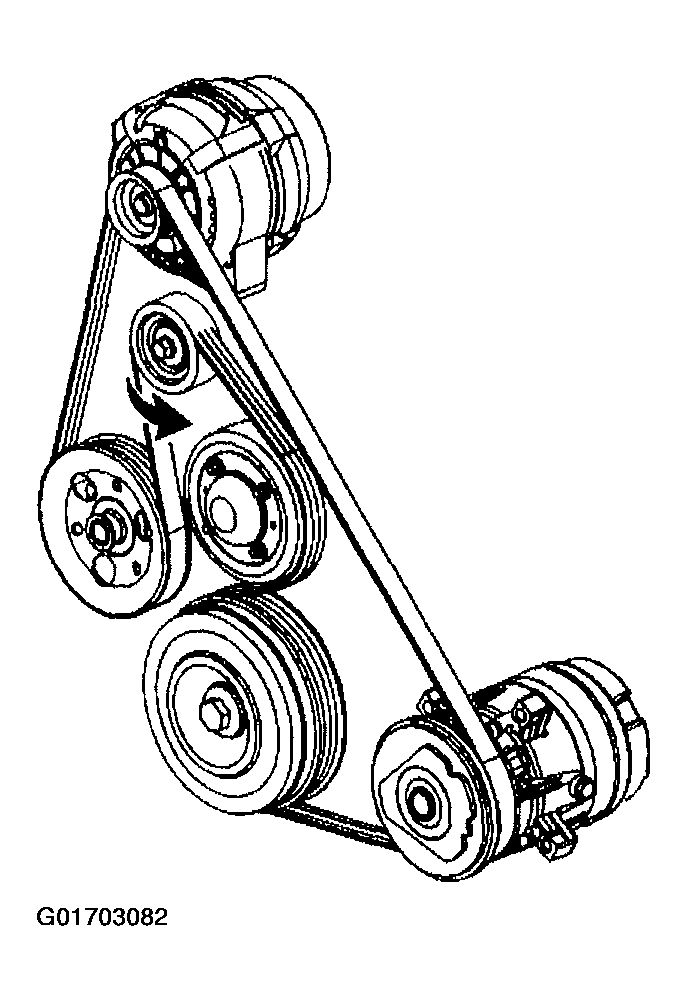

    Fig 1: Drive Belt (L36)
    G01703082Courtesy of GENERAL MOTORS CORP.
