Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the supercharger drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .

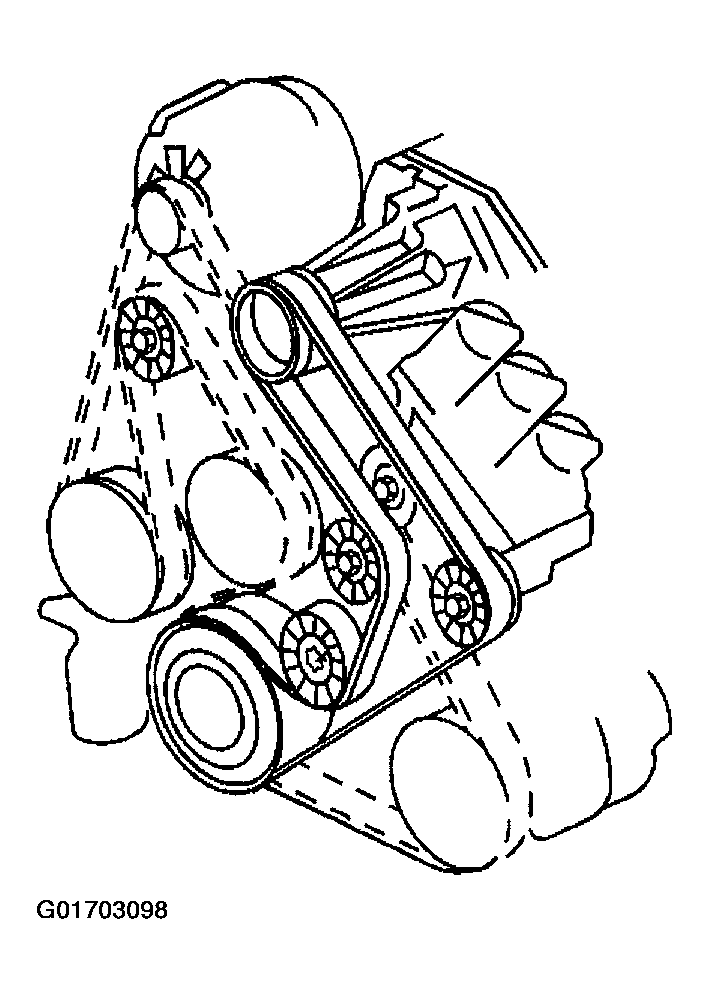

    Fig 1: Supercharger Drive Belt
    G01703098Courtesy of GENERAL MOTORS CORP.
  2. Remove the idler pulley bolt.
  3. Remove the drive belt idler pulley.
    Fig 2: Lower Drive Belt Idler Pulley
    G01703099Courtesy of GENERAL MOTORS CORP.
