Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the idler pulley bolt.

    Tighten

    Tighten the idler pulley bolt to 50 N.m (37 lb ft).

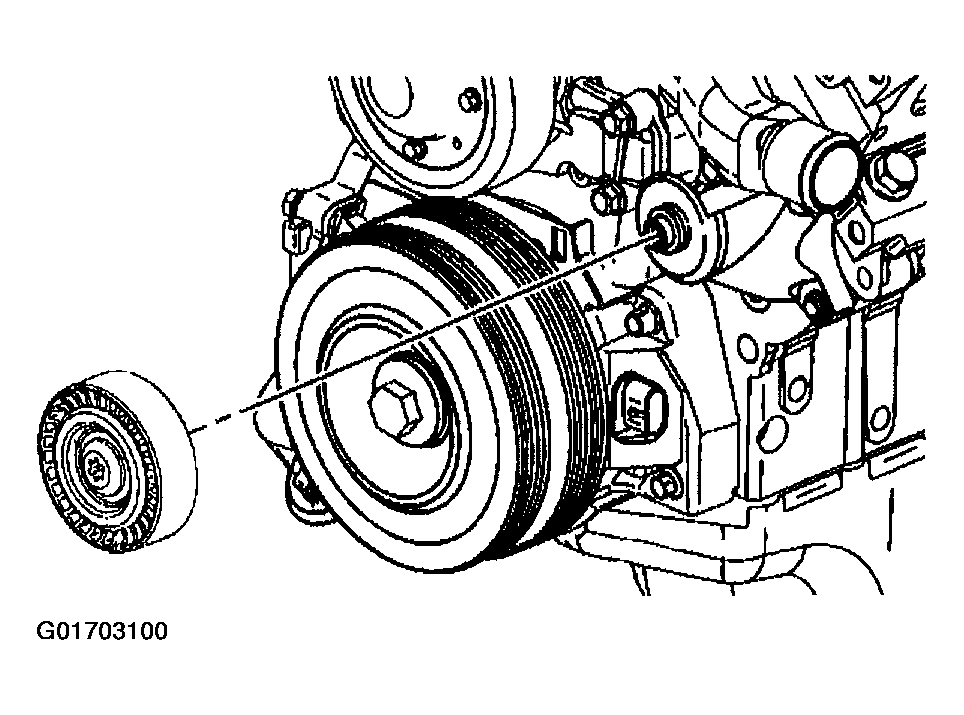

    Fig 1: Lower Drive Belt Idler Pulley
    G01703100Courtesy of GENERAL MOTORS CORP.
  3. Install the supercharger drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .

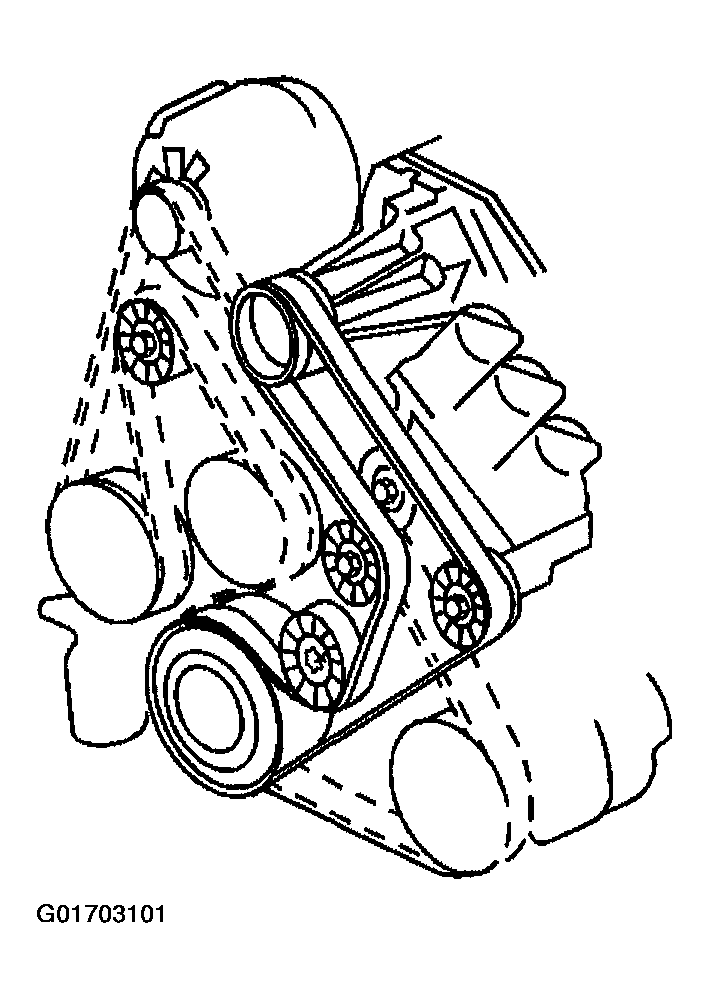

    Fig 2: Supercharger Drive Belt
    G01703101Courtesy of GENERAL MOTORS CORP.
