Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the supercharger drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .

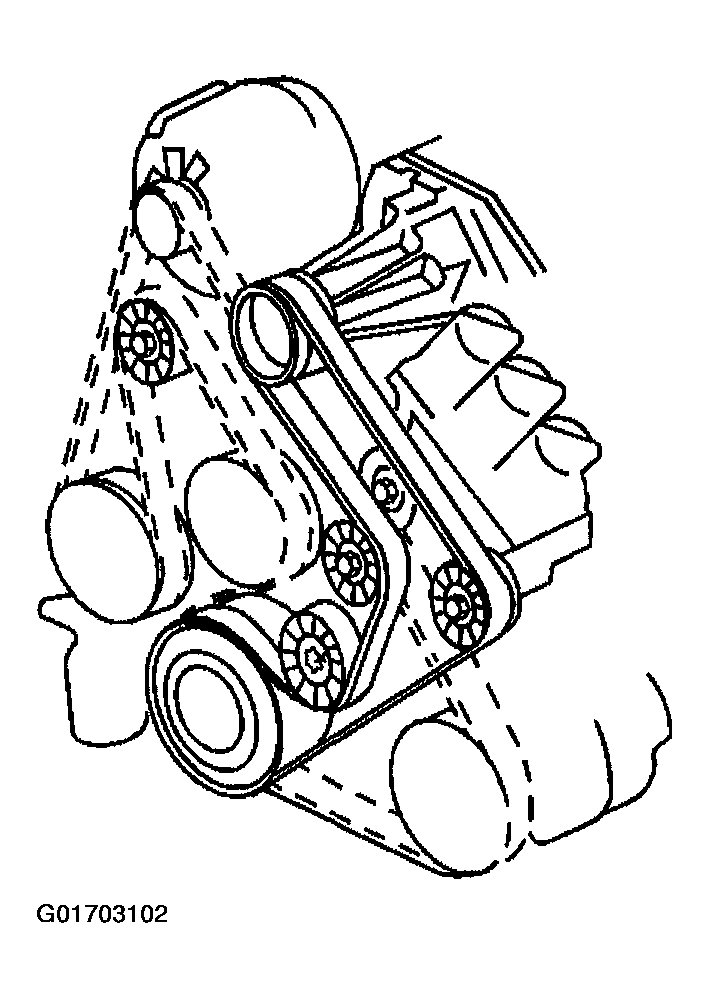

    Fig 1: Supercharger Drive Belt
    G01703102Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt idler pulley bolt.
  3. Remove the drive belt idler pulley.

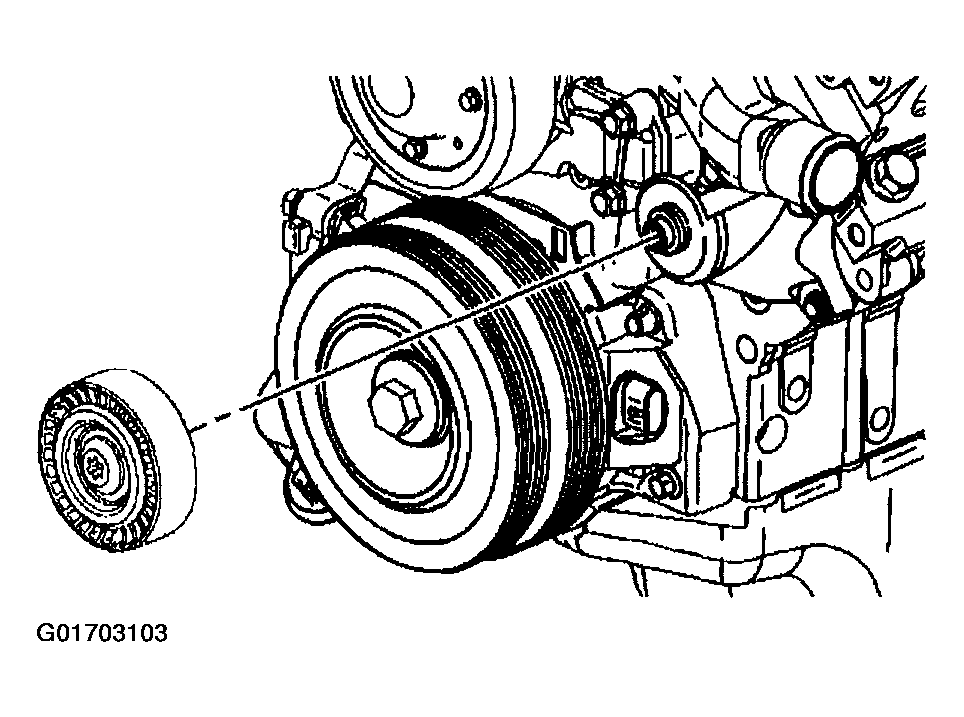

    Fig 2: Drive Belt Idler Pulley
    G01703103Courtesy of GENERAL MOTORS CORP.
  4. Remove the idler pulley bracket bolts.
  5. Remove the idler pulley bracket.

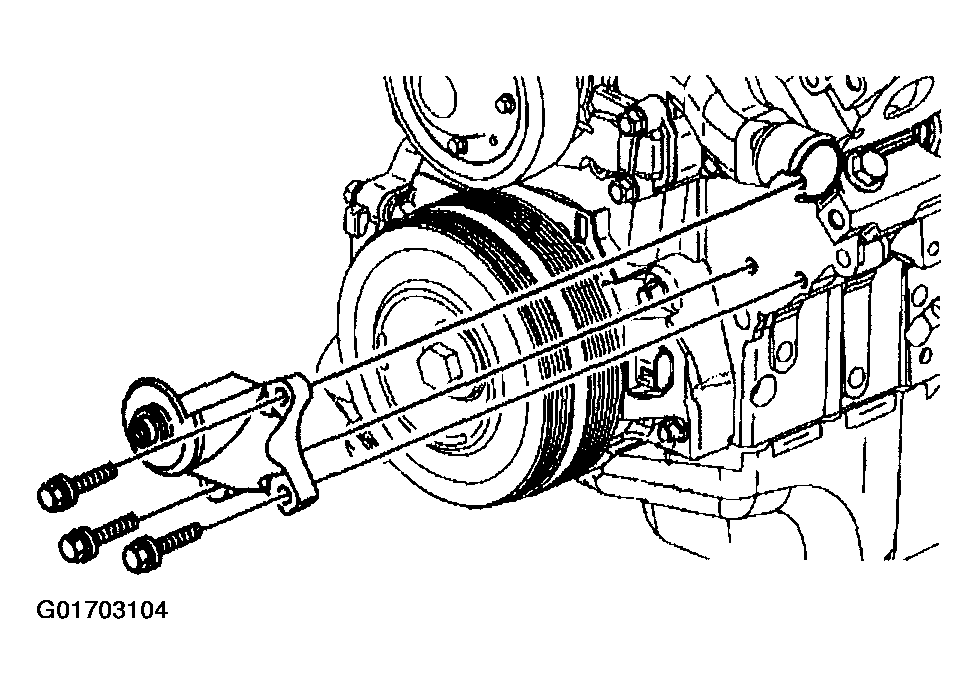

    Fig 3: Idler Pulley Bracket
    G01703104Courtesy of GENERAL MOTORS CORP.
