Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the idler pulley bracket bolts.

    Tighten

    Tighten the idler pulley bracket bolts to 30 N.m (22 lb ft).

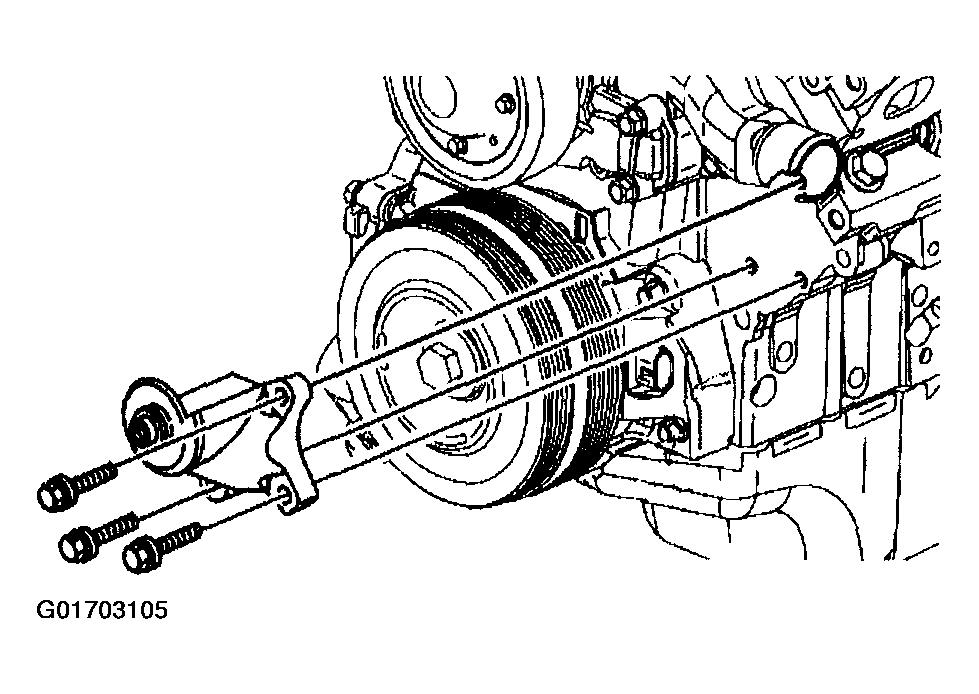

    Fig 1: Idler Pulley Bracket
    G01703105Courtesy of GENERAL MOTORS CORP.
  3. Install the drive belt idler pulley.
  4. Install the drive belt idler pulley bolt.

    Tighten

    Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft)

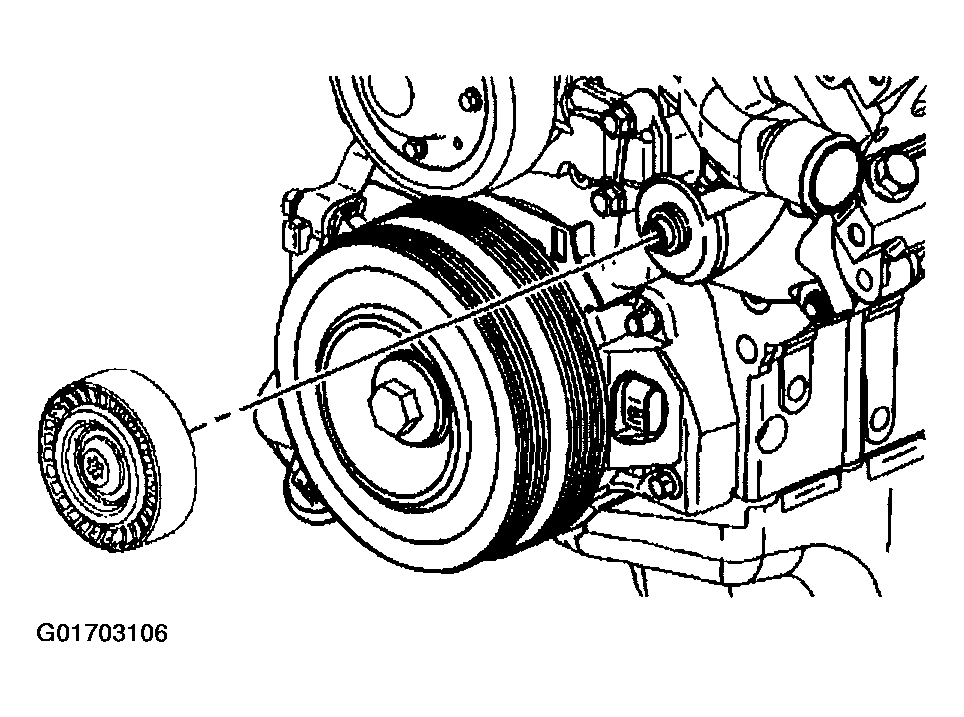

    Fig 2: Drive Belt Idler Pulley
    G01703106Courtesy of GENERAL MOTORS CORP.
  5. Install the supercharger drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .

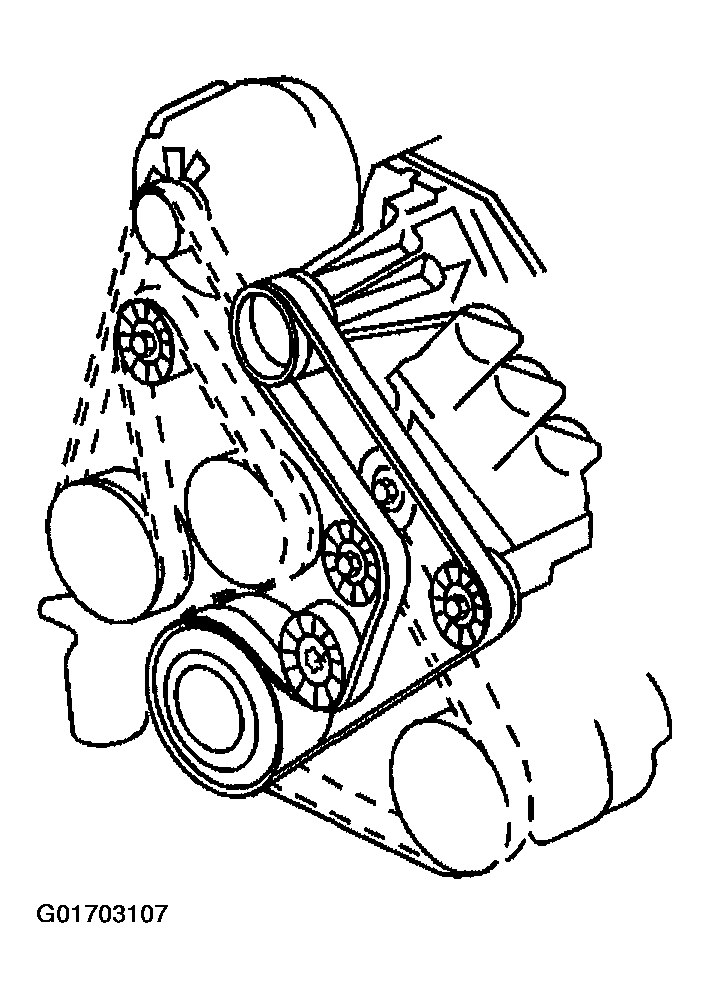

    Fig 3: Supercharger Drive Belt
    G01703107Courtesy of GENERAL MOTORS CORP.
