Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to ENGINE EMISSION NOTICE .
  1. Install the valves, the seals, the springs and the caps to the cylinder head. Refer to CYLINDER HEAD ASSEMBLE .
    NOTE: Head gaskets are not interchangeable. The head gasket must be installed with the arrow pointing to the front of the engine. Installing the head gasket in any other direction will cause gasket failure and possible engine failure.
  2. Position the head gasket with the arrow pointing to the front of the engine.

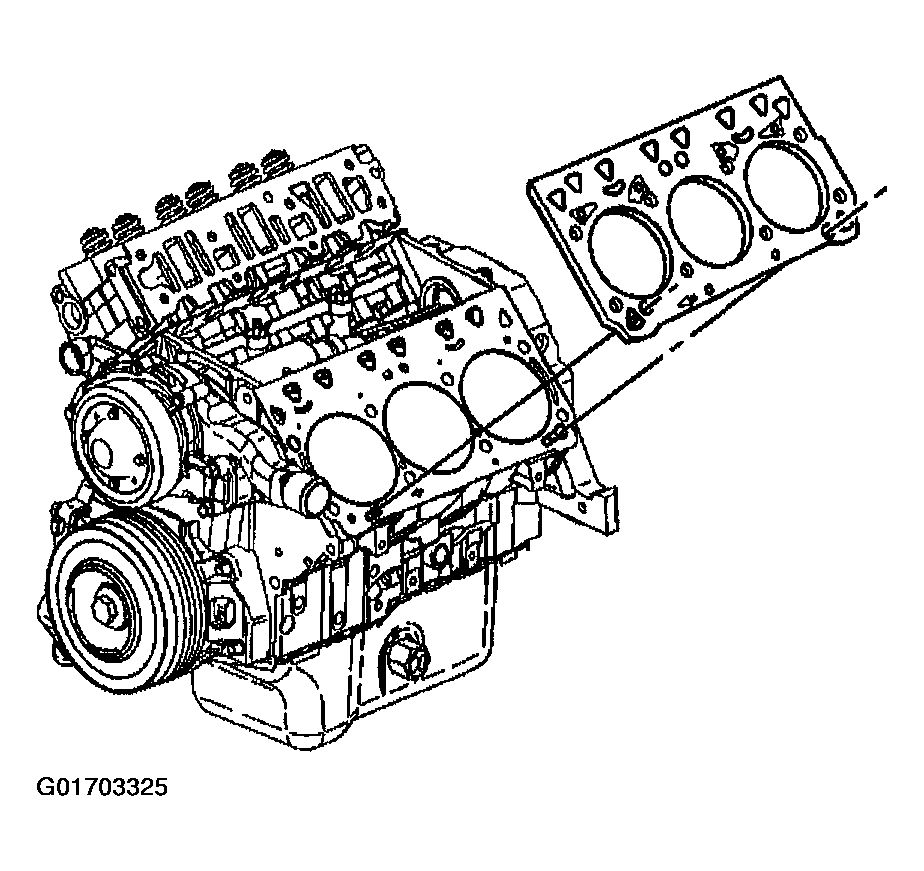

    Fig 1: Left Cylinder Head Gasket
    G01703325Courtesy of GENERAL MOTORS CORP.
  3. Install the cylinder head.

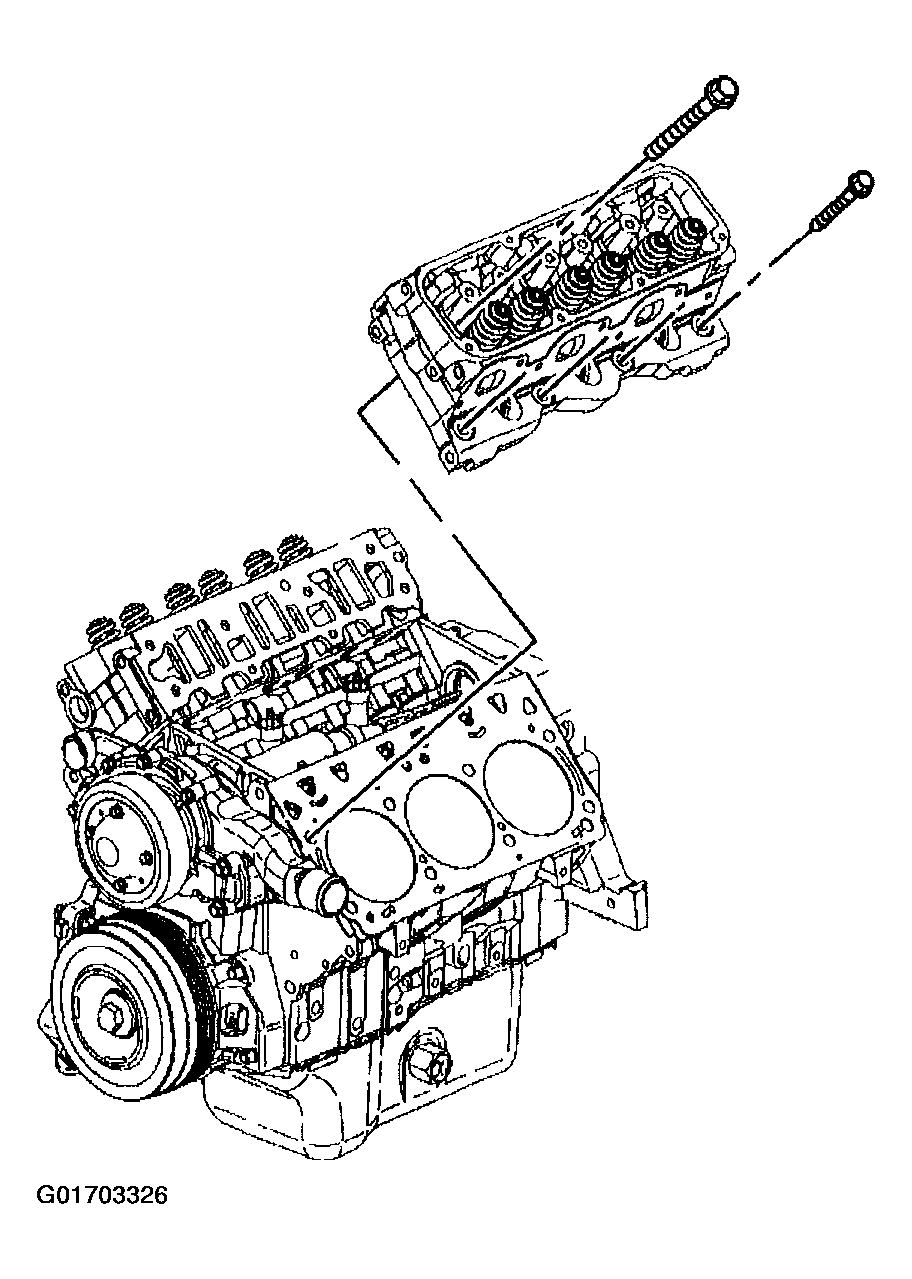

    Fig 2: Left Cylinder Head
    G01703326Courtesy of GENERAL MOTORS CORP.
    NOTE: This bolt is designed to permanently stretch when tightened. The correct part number fastener must be used to replace this type of fastener. Do not use a bolt that is stronger in this application. If the correct bolt is not used, the parts will not be tightened correctly. The system or the components may be damaged.
    NOTE: This engine uses special torque to yield head bolts. This design bolt requires a special tightening procedure. Failure to follow the given procedure will cause head gasket failure and possible engine damage.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the new cylinder head bolts (1-8).

    Tighten

    1. 4.1. Tighten the cylinder head bolts (1-8) in the following sequence to 50 N.m (37 lb ft).
    2. 4.2. Use the J 36660-A  to rotate the cylinder head bolts an additional (1-8) 120 degrees.
  5. Install the left push rods and rocker arms. Refer to Valve Rocker Arm and Push Rod Replacement .
  6. Install the left valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Left
    Fig 3: Installing Cylinder Head Bolts
    G01703327Courtesy of GENERAL MOTORS CORP.
  7. Install the left exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - LEFT (3.1L) or EXHAUST MANIFOLD REPLACEMENT - LEFT (3.8L) .
  8. Install the left spark plugs to the left cylinder head. Refer to SPARK PLUGS .
  9. Install the lower intake manifold. Refer to Intake Manifold Replacement - Lower (L36)  or Intake Manifold Replacement - Lower (L67) .
  10. Install the left engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement - Left .
  11. Install the right engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement - Right Upper (L36)  or Engine Mount Strut Bracket Replacement - Right Upper (L67) .
  12. Install the ignition control module bracket and the ignition control module to the left cylinder head. Refer to IGNITION CONTROL MODULE .
  13. Install the air inlet duct to the throttle body.
  14. Connect the intake air temperature (IAT) sensor electrical connector.
  15. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)  or Fuel Injector Sight Shield Replacement (L67) .
  16. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  17. Fill the crankcase with engine oil. Refer to Engine Oil and Oil Filter Replacement .
  18. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  19. Inspect for leaks.
