Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .
  3. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Remove the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  5. Remove the right engine splash shield retainers and the engine splash shield.
  6. Remove the torque converter cover.

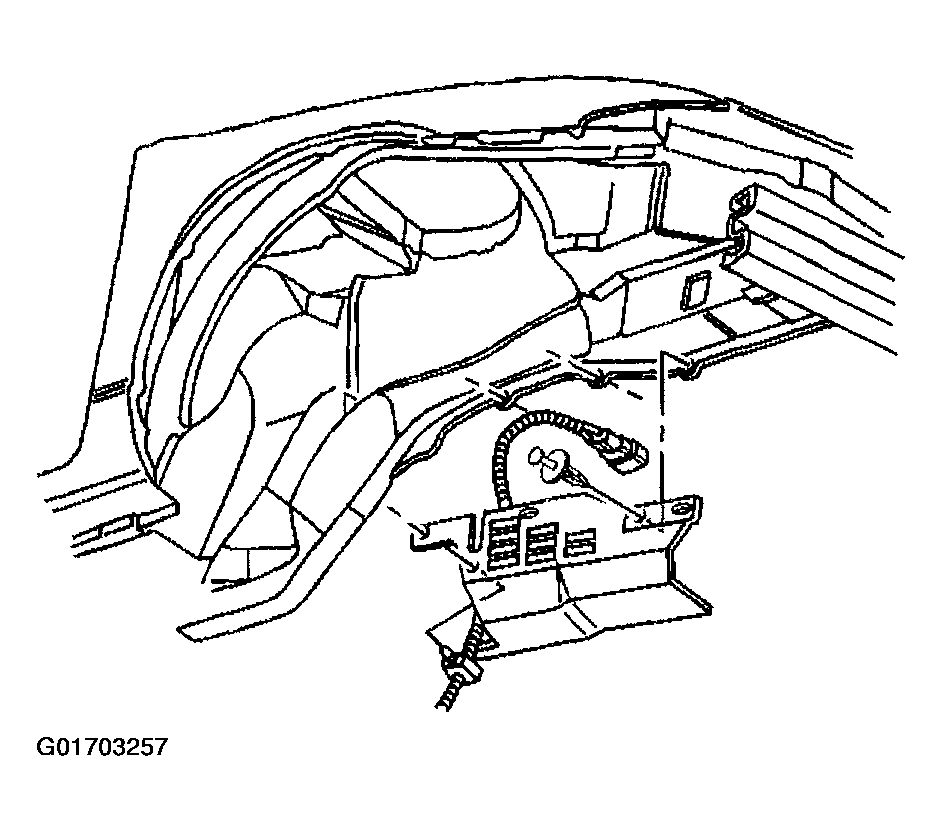

    Fig 1: Right Engine Splash Shield
    G01703257Courtesy of GENERAL MOTORS CORP.
  7. Install the J 37096  to hold the flywheel.

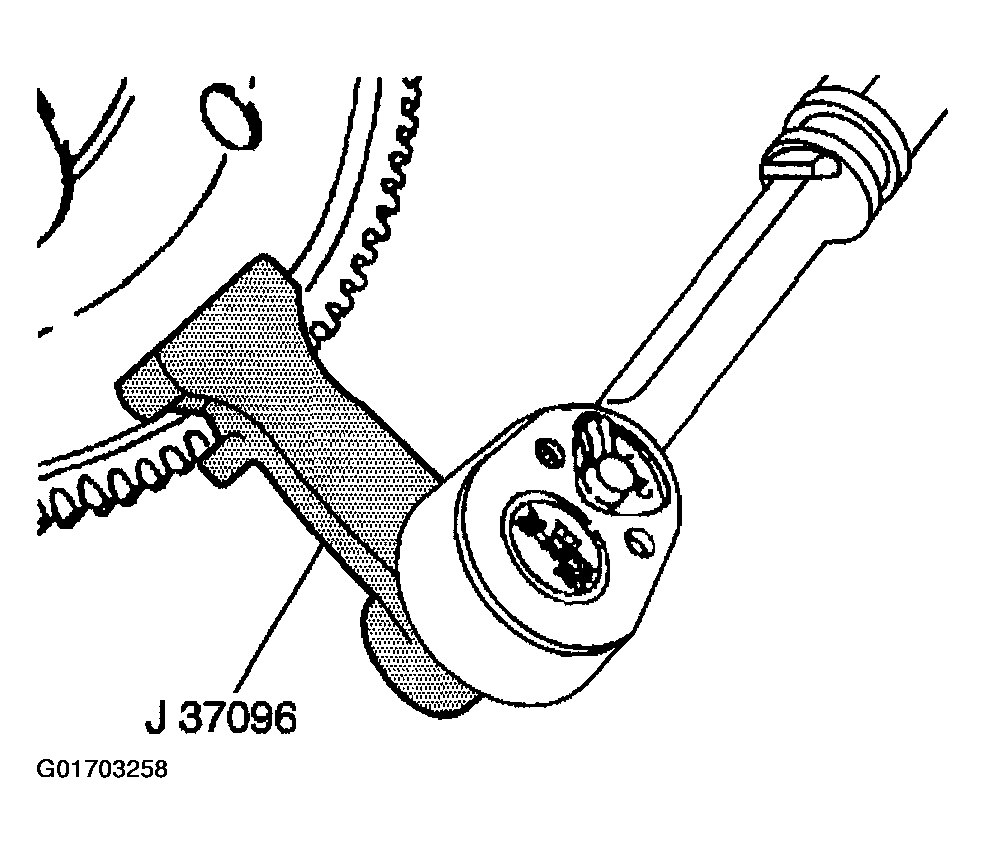

    Fig 2: Preventing Flywheel Rotation
    G01703258Courtesy of GENERAL MOTORS CORP.
  8. Remove the crankshaft balancer retaining bolt.

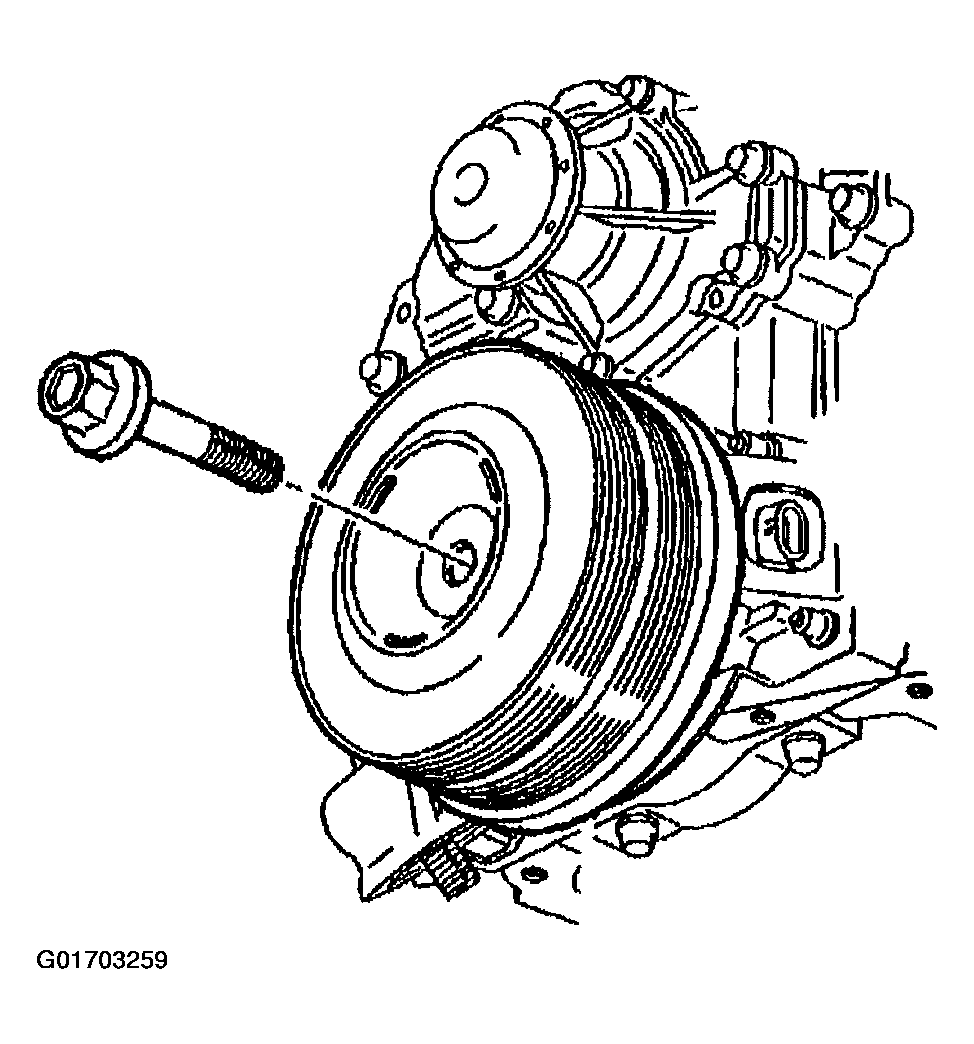

    Fig 3: Crankshaft Balancer Bolt
    G01703259Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not separate the crankshaft pulley from the crankshaft balancer. Service the crankshaft pulley and the crankshaft balancer as an assembly.
  9. Install the J 38197-A.
  10. Remove the crankshaft balancer.
  11. Remove the J 38197-A.

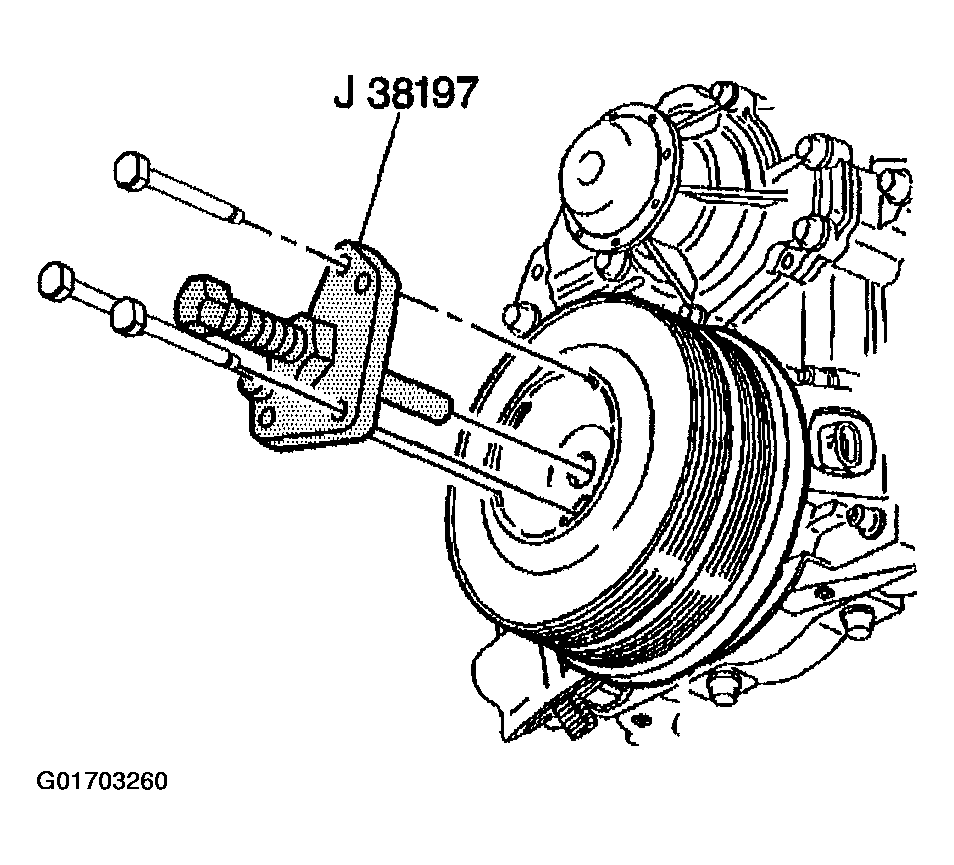

    Fig 4: J 38197-A
    G01703260Courtesy of GENERAL MOTORS CORP.
