Oil Leak Diagnosis

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

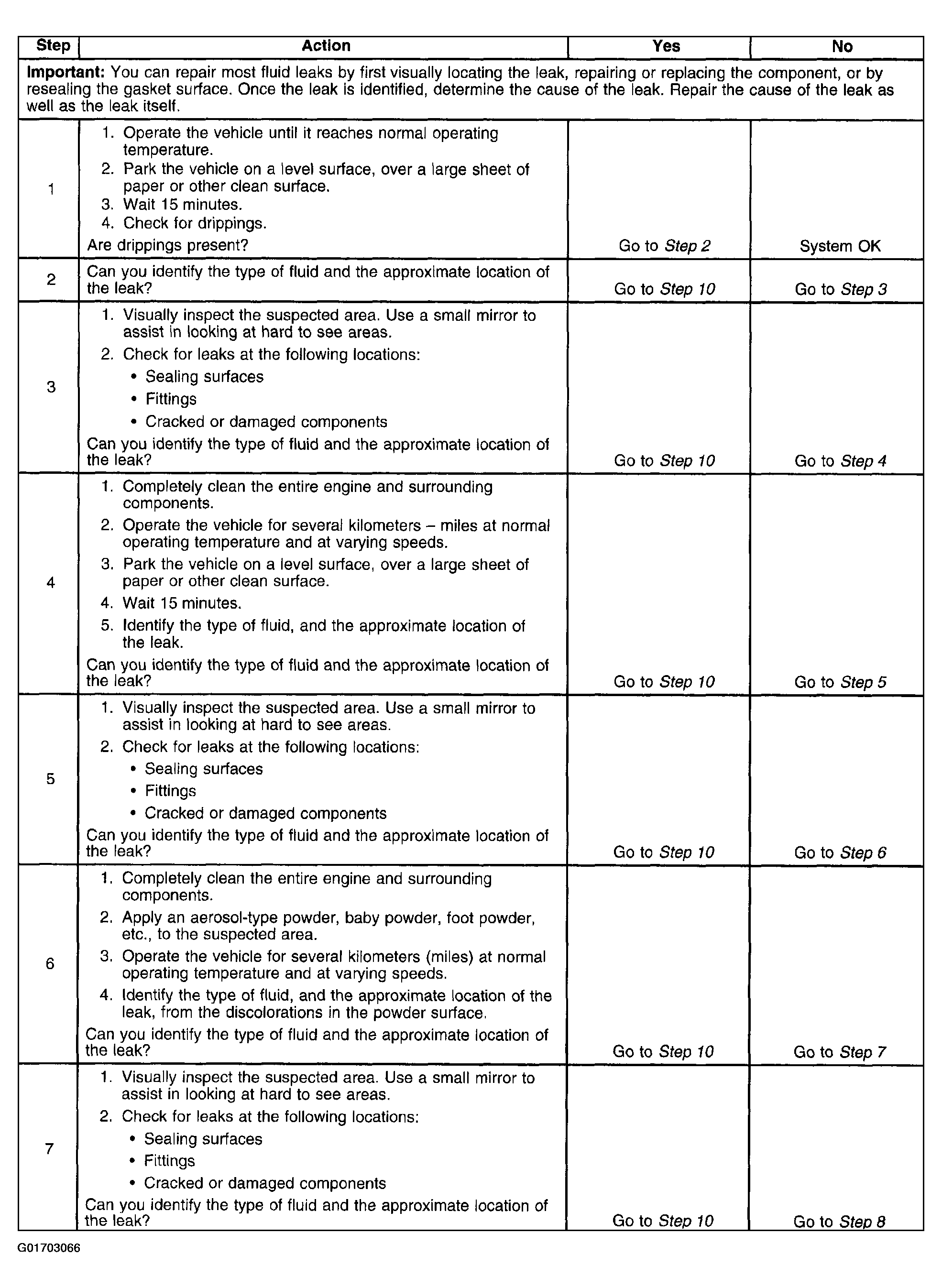

Fig 1: Oil Leak Diagnosis (1 Of 2)
G01703066Courtesy of GENERAL MOTORS CORP.

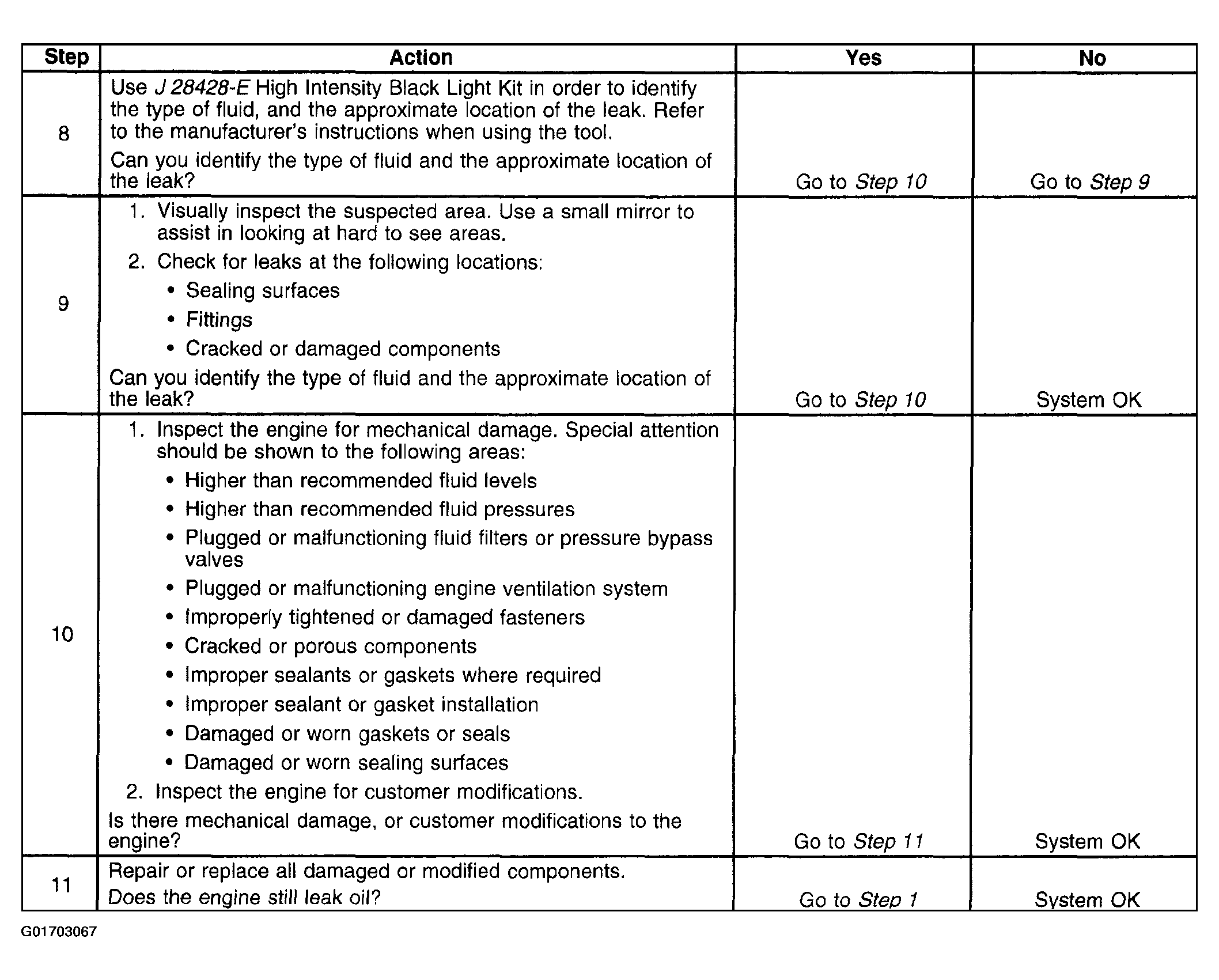

Fig 2: Oil Leak Diagnosis (2 Of 2)
G01703067Courtesy of GENERAL MOTORS CORP.
