Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relay (2) in the same position as removed
  2. Install the electrical center cover

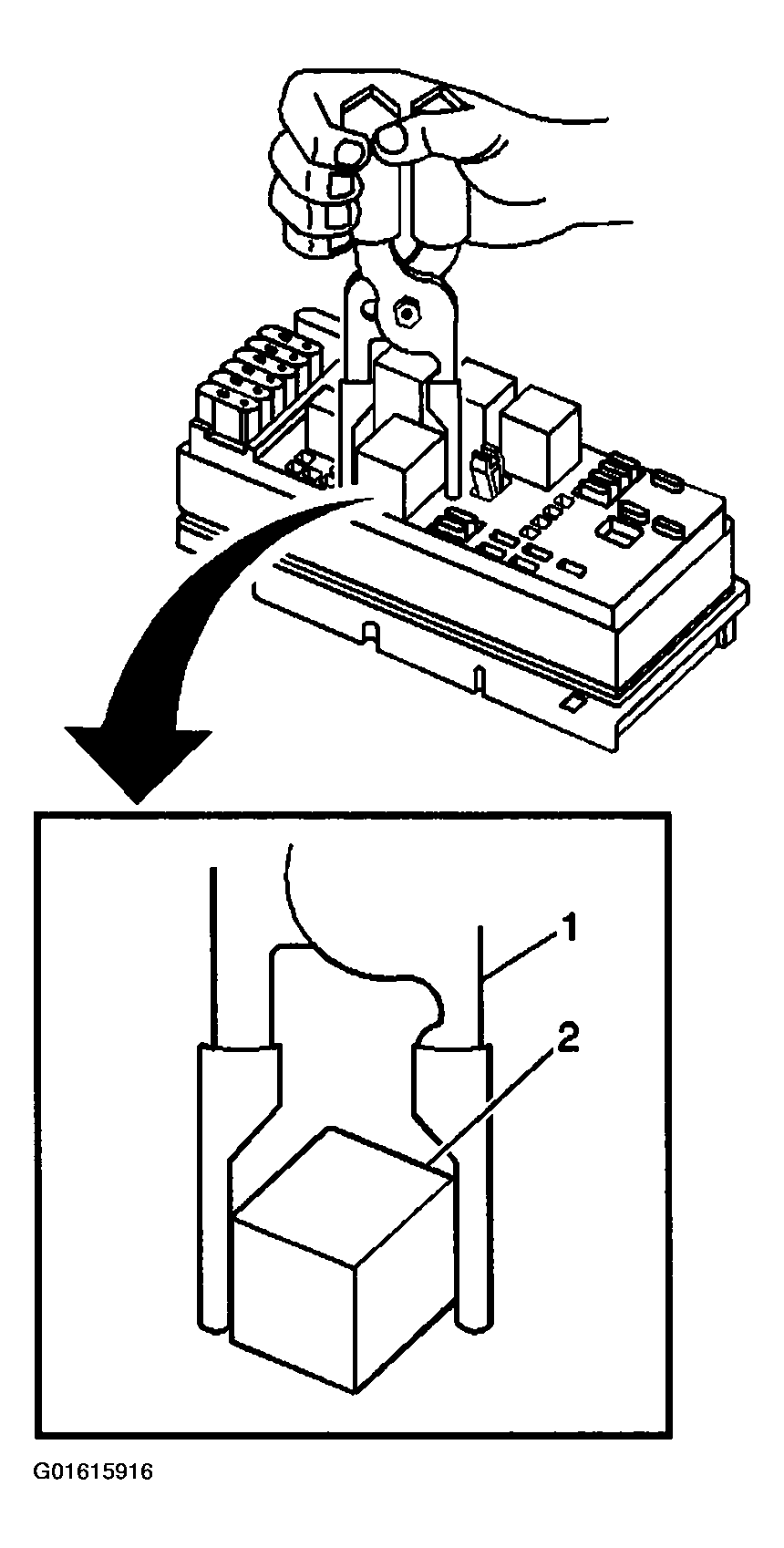

    Fig 1: J 43244 & Relay
    G01615916Courtesy of GENERAL MOTORS CORP.
