Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wires to the fuse block. Refer to UNDERHOOD FUSE BLOCK .

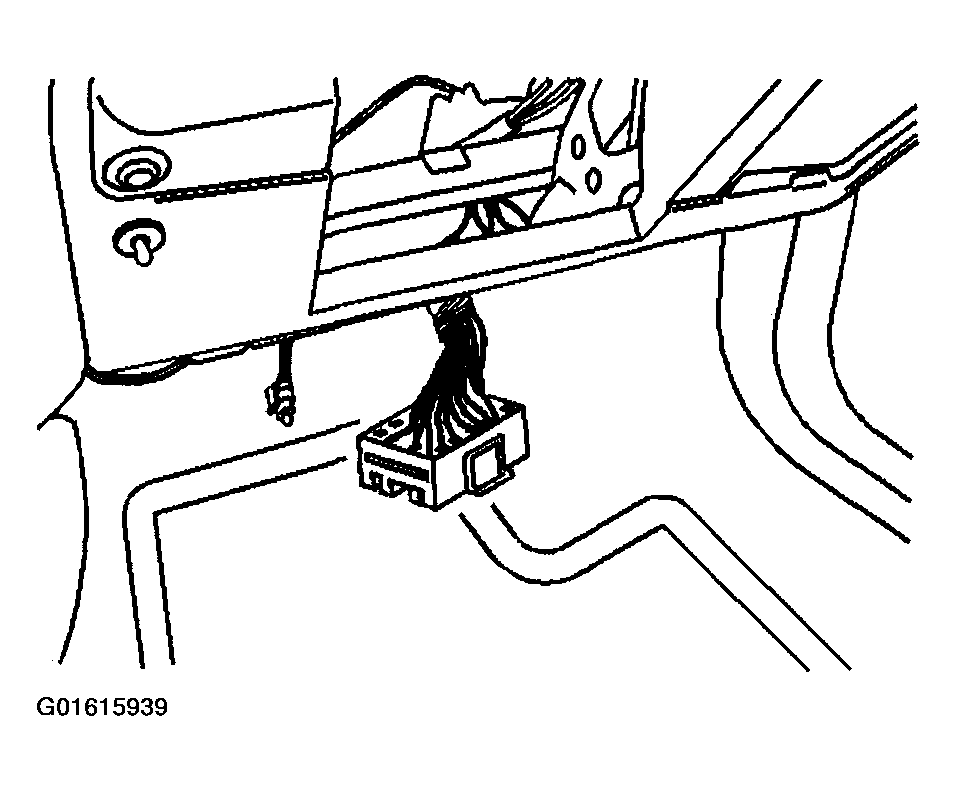

    Fig 1: Installing Fuse Block
    G01615939Courtesy of GENERAL MOTORS CORP.
  2. Install the fuses and the circuit breakers to the fuse block. Refer to UNDERHOOD FUSE BLOCK .

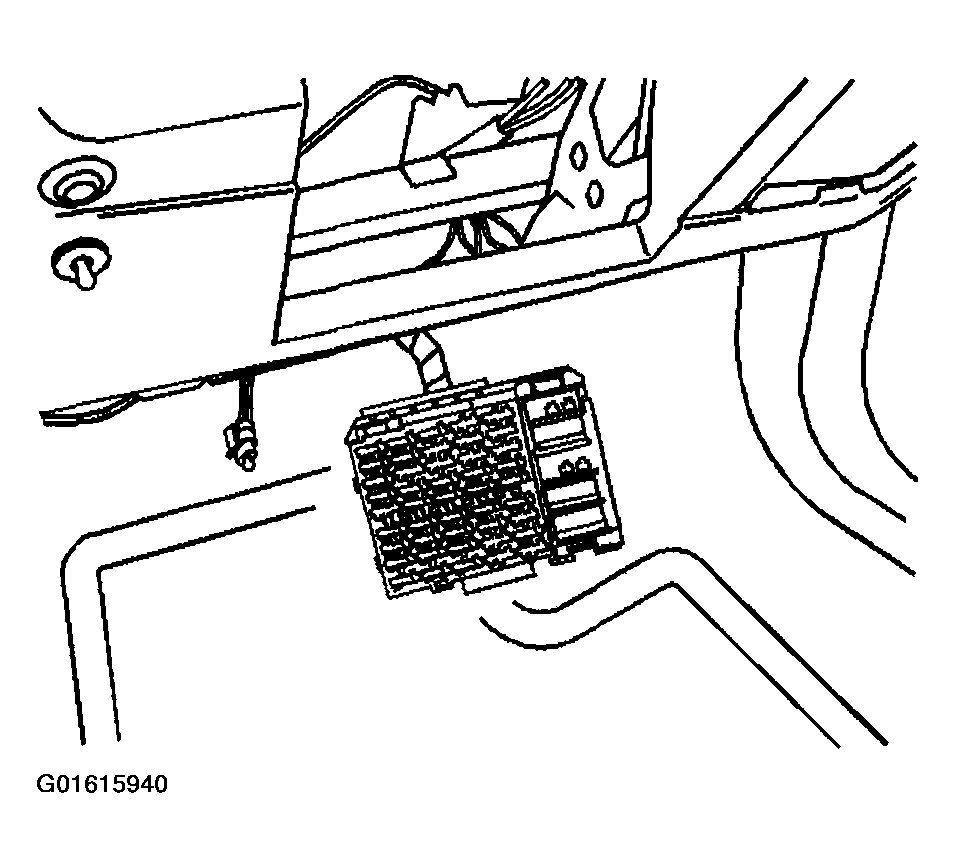

    Fig 2: Fuse Block
    G01615940Courtesy of GENERAL MOTORS CORP.
  3. Position the fuse block to the I/P.

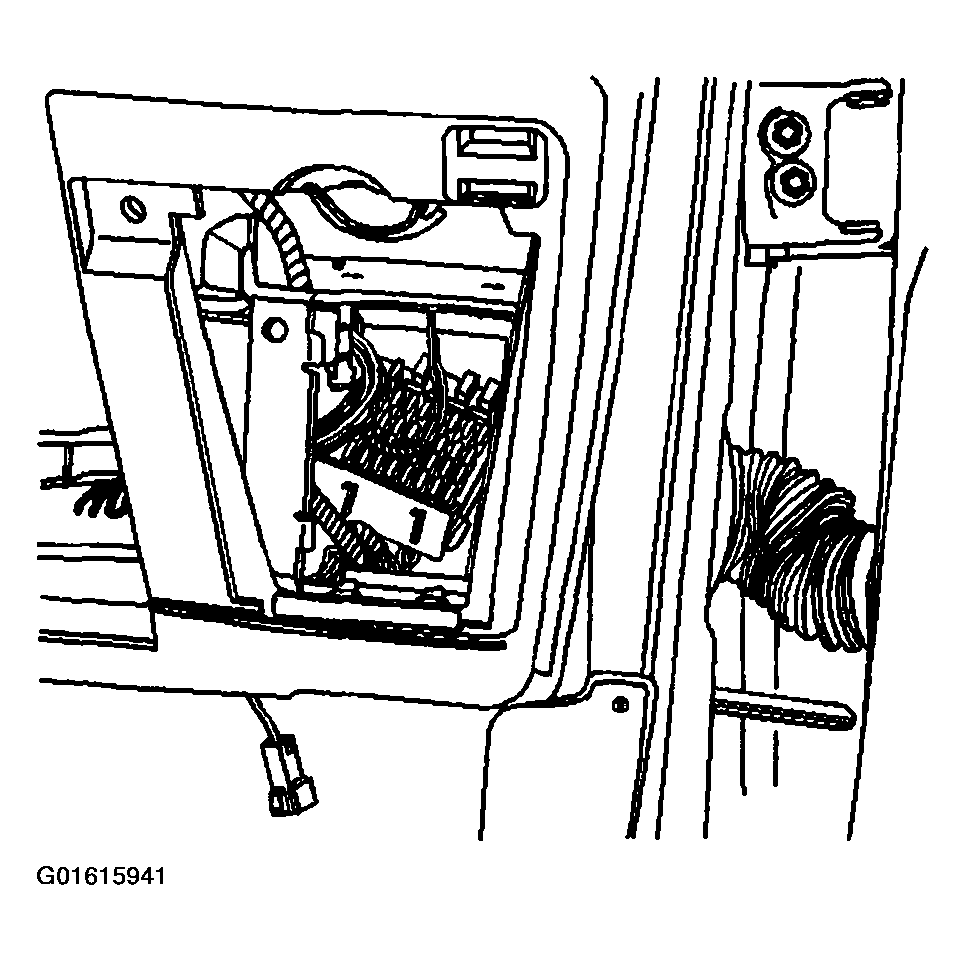

    Fig 3: Positioning Fuse Block To I/P
    G01615941Courtesy of GENERAL MOTORS CORP.
  4. Connect the wiring harness retainer (1) to the trim pad (2).

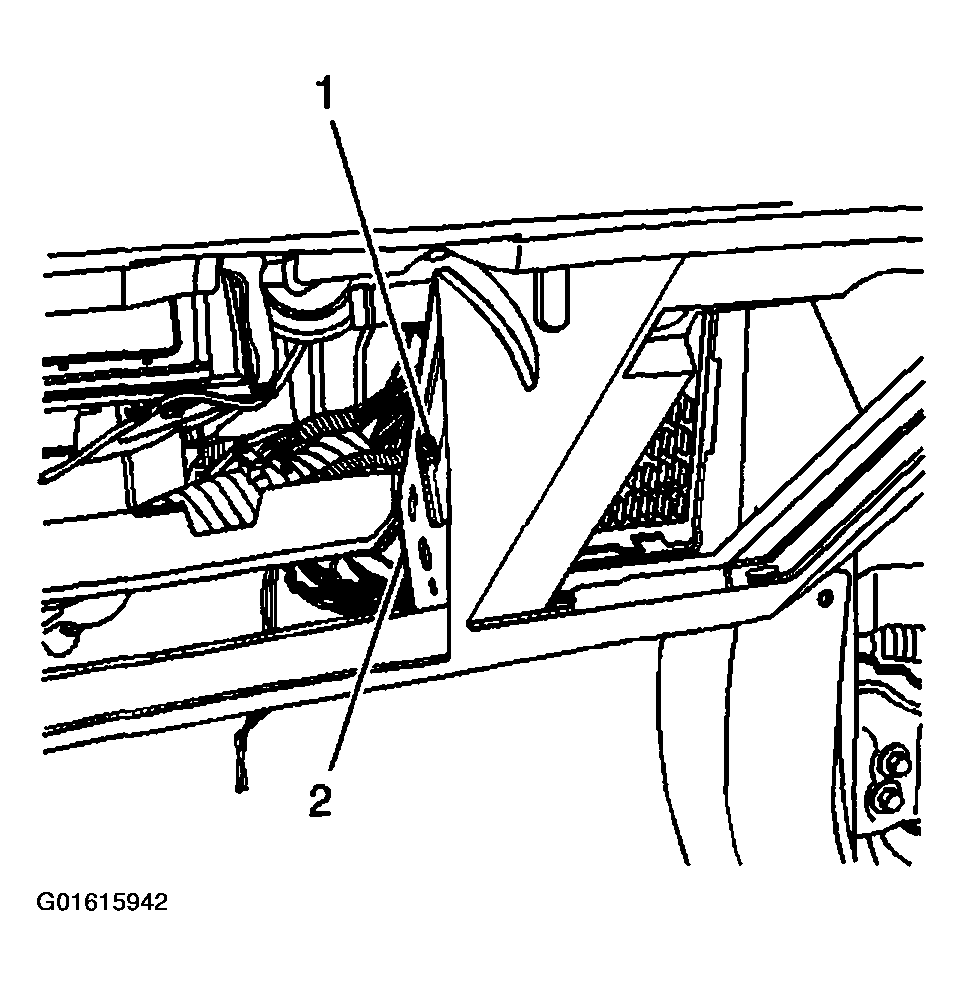

    Fig 4: Connecting Wiring Harness Retainer To Trim Pad
    G01615942Courtesy of GENERAL MOTORS CORP.
  5. Engage the fuse block retainers to the I/P trim pad.

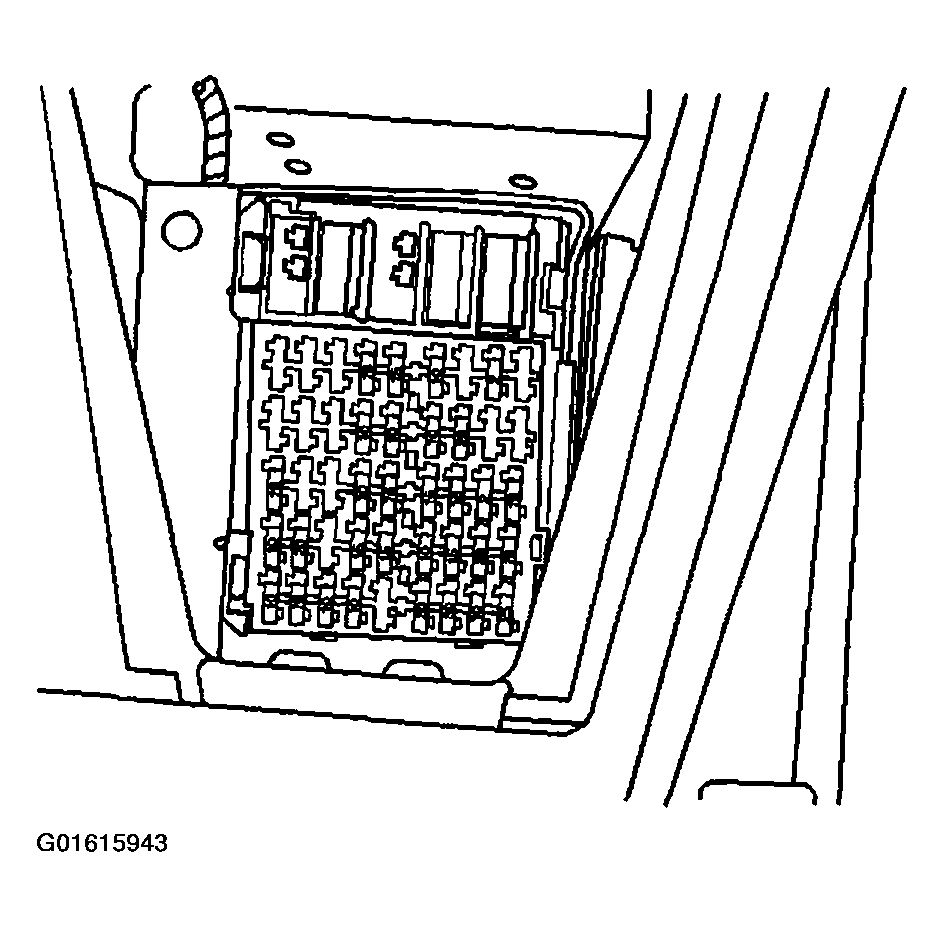

    Fig 5: Engaging Fuse Block Retainers To I/P Trim Pad
    G01615943Courtesy of GENERAL MOTORS CORP.
  6. Install the I/P compartment.
  7. Install the I/P compartment door. Refer to COMPARTMENT REPLACEMENT -- IP .
  8. Install the right I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  9. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

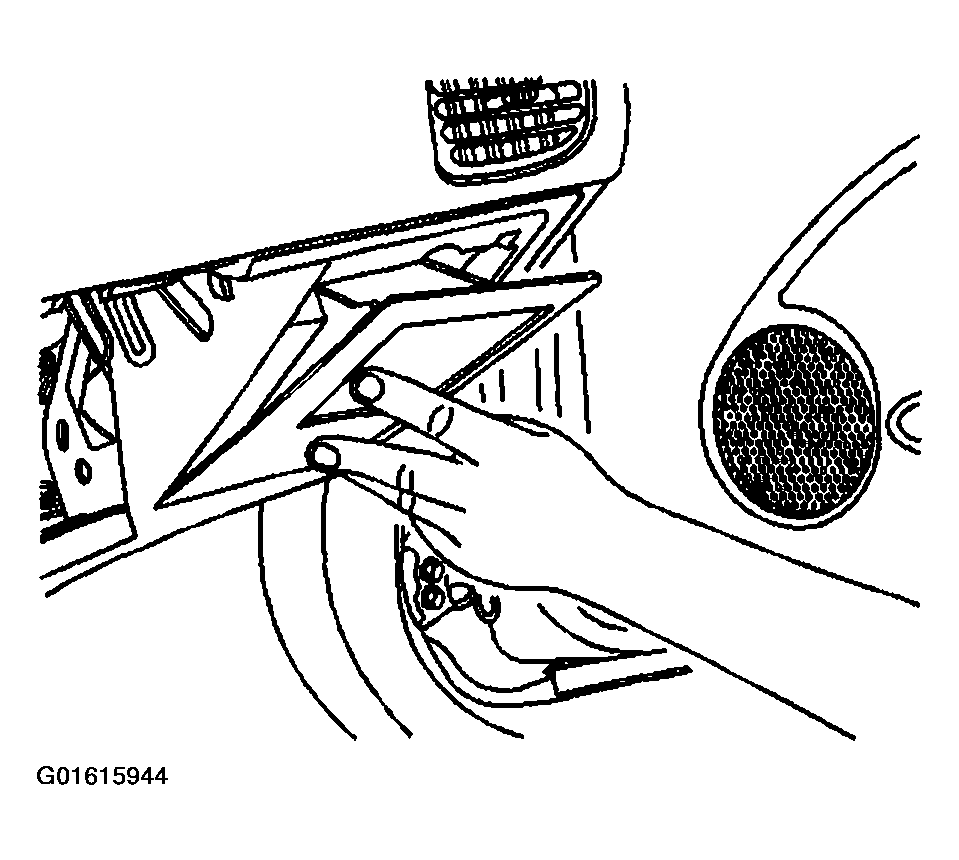

    Fig 6: I/P Compartment
    G01615944Courtesy of GENERAL MOTORS CORP.
