Under the Front Suspension Crossmember - Preferred Front Location
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

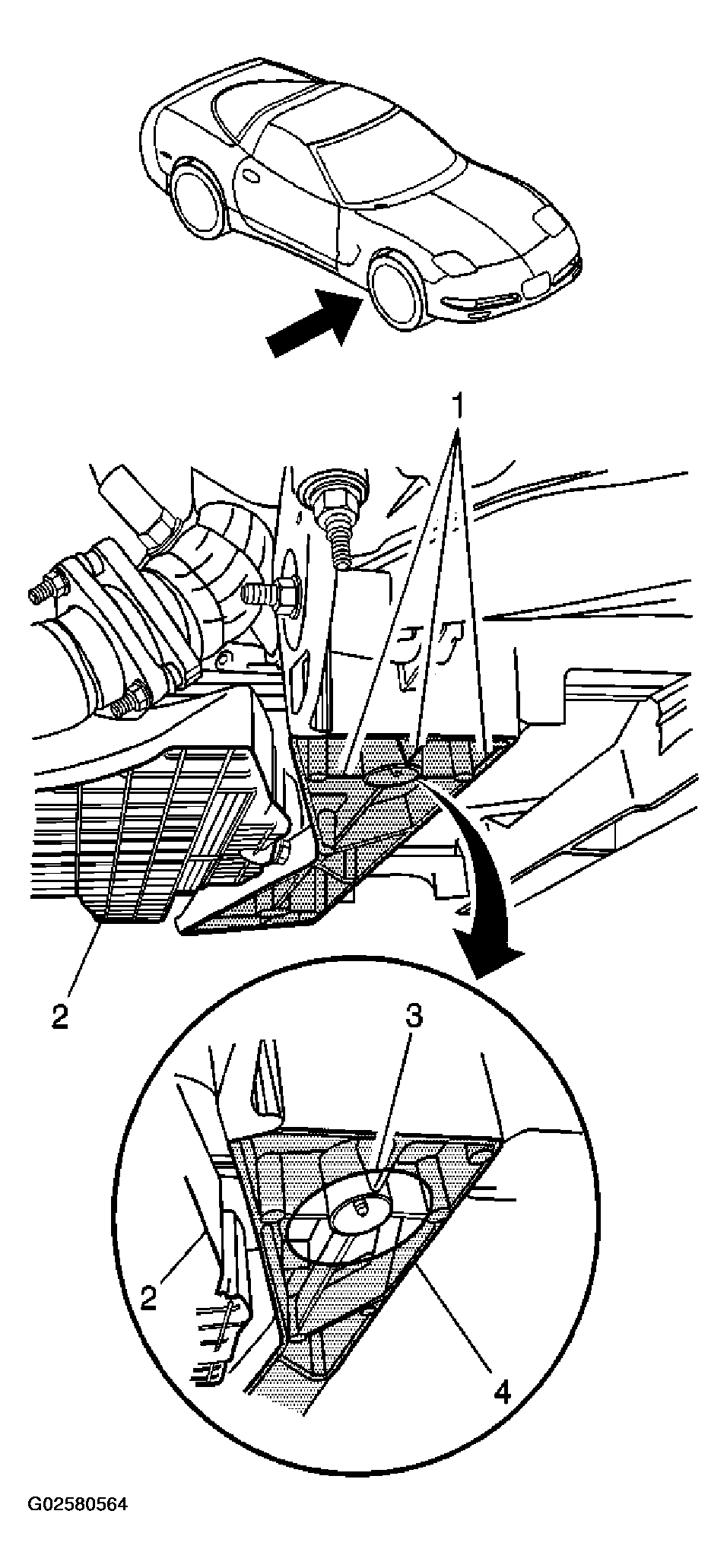

Fig 1: Supporting Vehicle With Jack Stands - Under Front Suspension Crossmember (Preferred Front Location)
Important:
- The jack stand support pads must not come in contact with the engine oil pan (2) or the front suspension mono-leaf spring.
- Carefully observe the following:
- Be sure to place a block or pad between the jack stand support pads and the vehicle.
- Make sure the jack stand support pads span at least 2 suspension crossmember ribs (1).
- Support only in the areas shown.
Position the jack stand support pads as follows:
- In the preferred location (3) if possible, spanning at least 2 of the suspension crossmember ribs (1).
- In the optional location (4) if necessary, spanning at least 2 of the suspension crossmember ribs (1).
