Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left (front) valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Left .
  2. Remove the right (rear) valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Right .
  3. Remove the upper intake manifold. Refer to Intake Manifold Replacement - Lower .
  4. Remove the lower intake manifold. Refer to Intake Manifold Replacement - Upper .
  5. Remove the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  6. Remove the lifter guide bolts.

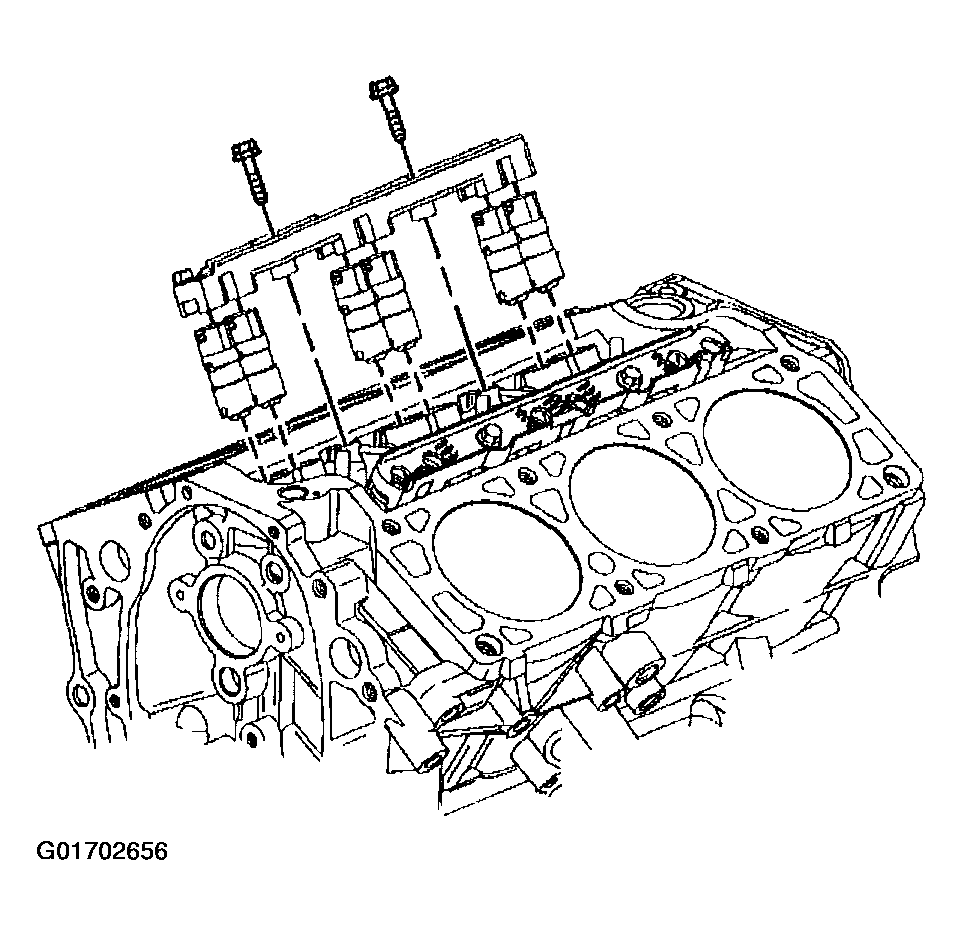

    Fig 1: Valve Lifters & Guides
    G01702656Courtesy of GENERAL MOTORS CORP.
  7. Remove the valve lifter guide(s).
  8. Remove the valve lifter(s).
  9. Clean all gasket surfaces with degreaser.
  10. Clean the valve train parts.
  11. Inspect the valve lifters and the cam lobes for wear. Refer to VALVE LIFTERS CLEANING AND INSPECTION .

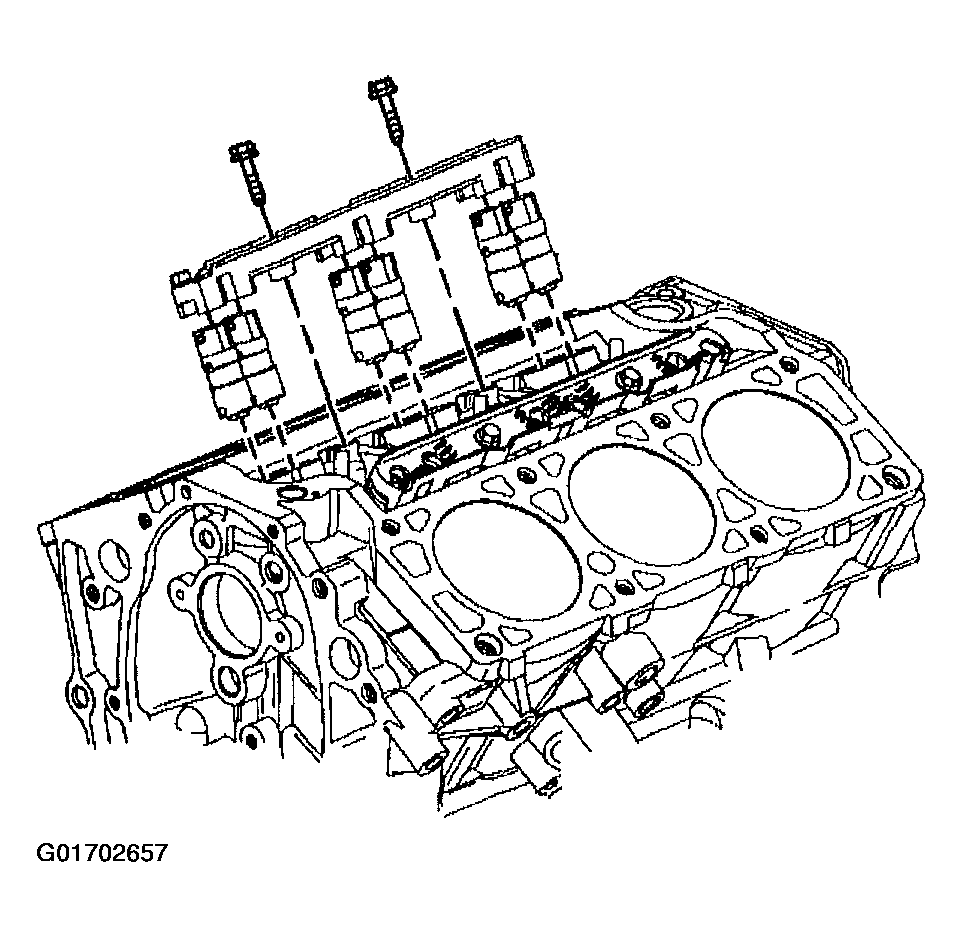

    Fig 2: Valve Lifters & Guides
    G01702657Courtesy of GENERAL MOTORS CORP.
