Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Rotate the driveshaft as necessary in order to obtain the engagement with the oil pump drive unit.
  1. Install the oil pump and driveshaft.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt attaching the oil pump to the rear crankshaft bearing cap.

    Tighten

    Tighten the oil pump bolt to 41 N.m (30 lb ft).

  3. Install the oil pan. Refer to Oil Pan Replacement .

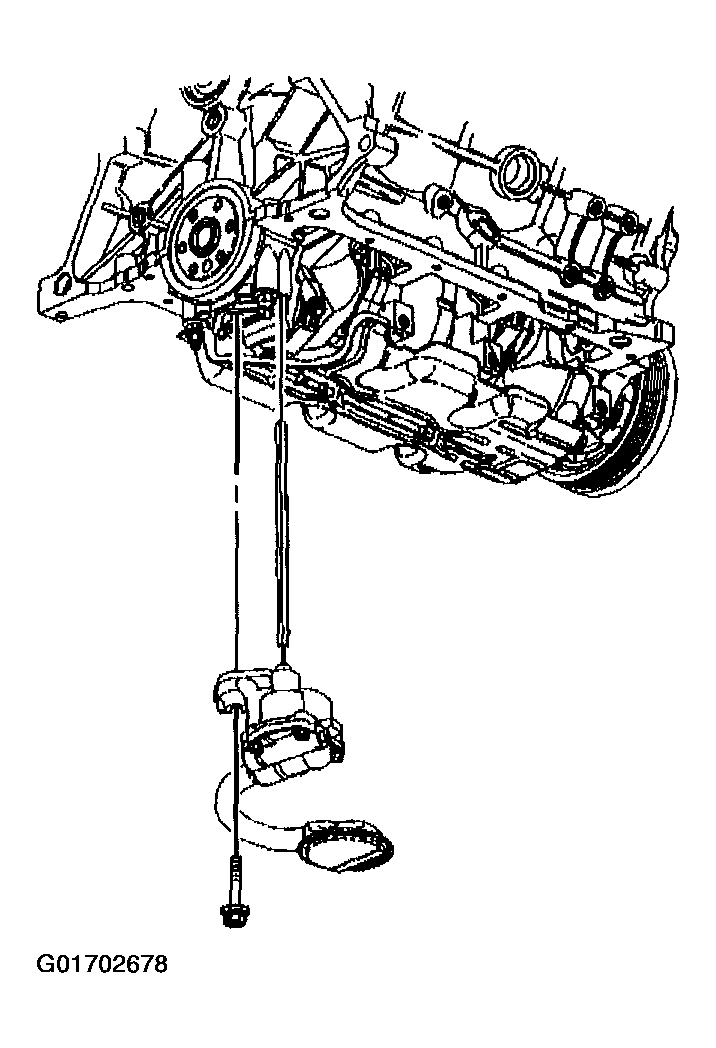

    Fig 1: Oil Pump
    G01702678Courtesy of GENERAL MOTORS CORP.
