Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wire from the number 6 cylinder spark plug.
  2. Remove the oil level indicator.
  3. Remove the oil level indicator tube bracket bolt.
  4. Remove the oil level indicator tube.

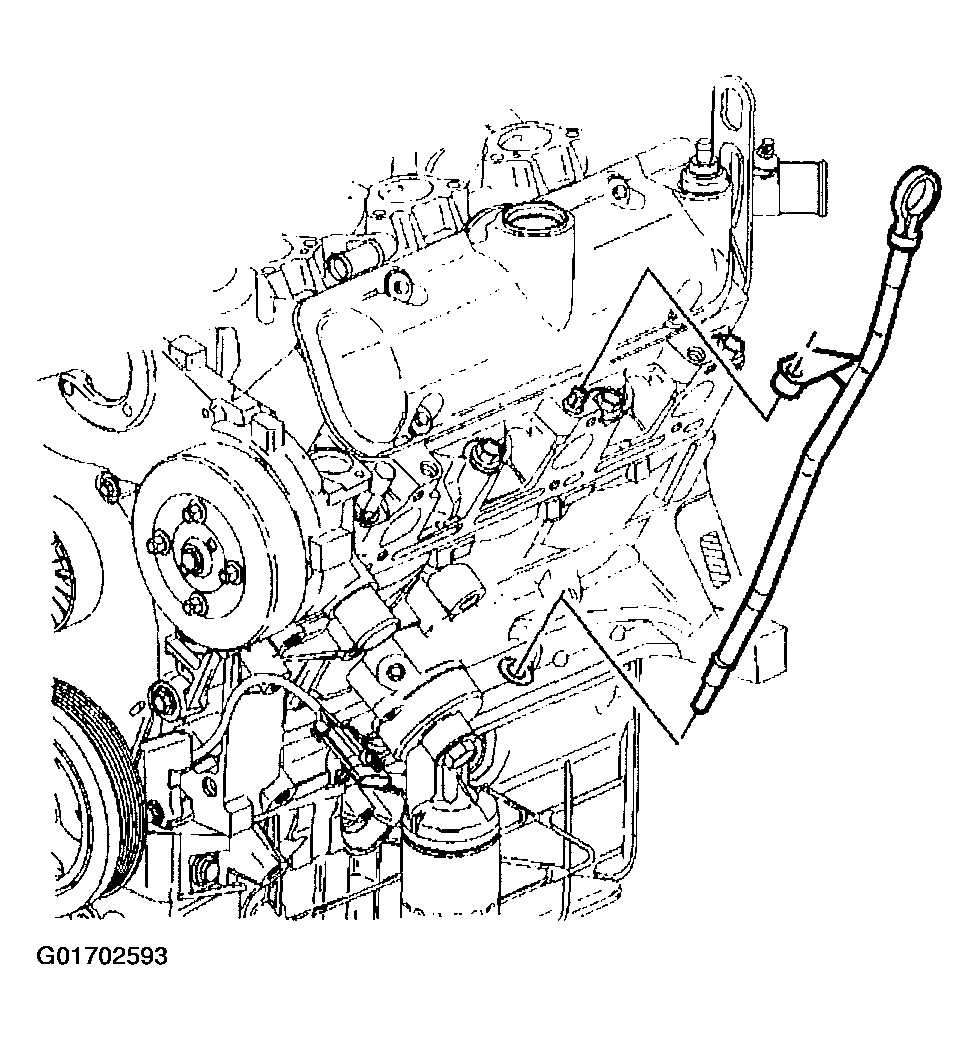

    Fig 1: Oil Level Indicator Tube
    G01702593Courtesy of GENERAL MOTORS CORP.
