Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil level indicator tube.
  2. Apply sealant around the oil level indicator tube 12.7 mm (0.50 in) below the bead. Use GM sealant P/N 12345493 (Canadian P/N 10953488) or equivalent.
  3. Install the oil level indicator tube into the engine block.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the oil level indicator tube bracket bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  5. Install the oil level indicator.
  6. Install the spark plug wire to the number 6 cylinder spark plug.

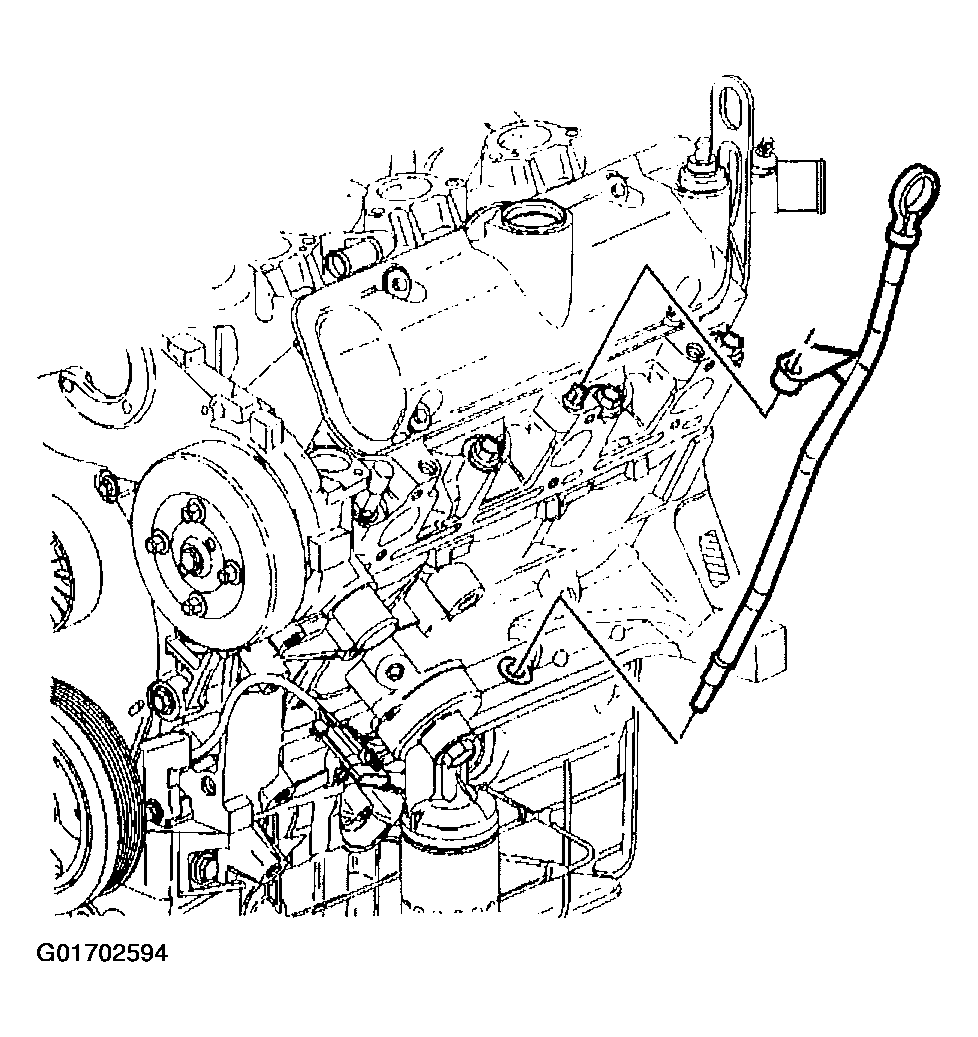

    Fig 1: Oil Level Indicator Tube
    G01702594Courtesy of GENERAL MOTORS CORP.
