Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the left engine mount strut and the bracket from the upper radiator support. Refer to Engine Mount Strut Bracket Replacement - Upper Radiator Support .
  3. Assemble the J-28467-501  (2) to the J 28467-B  cross bar (1).
  4. Install the J 28467-B (1)  and the J-28467-501  (2) to the fender rails.

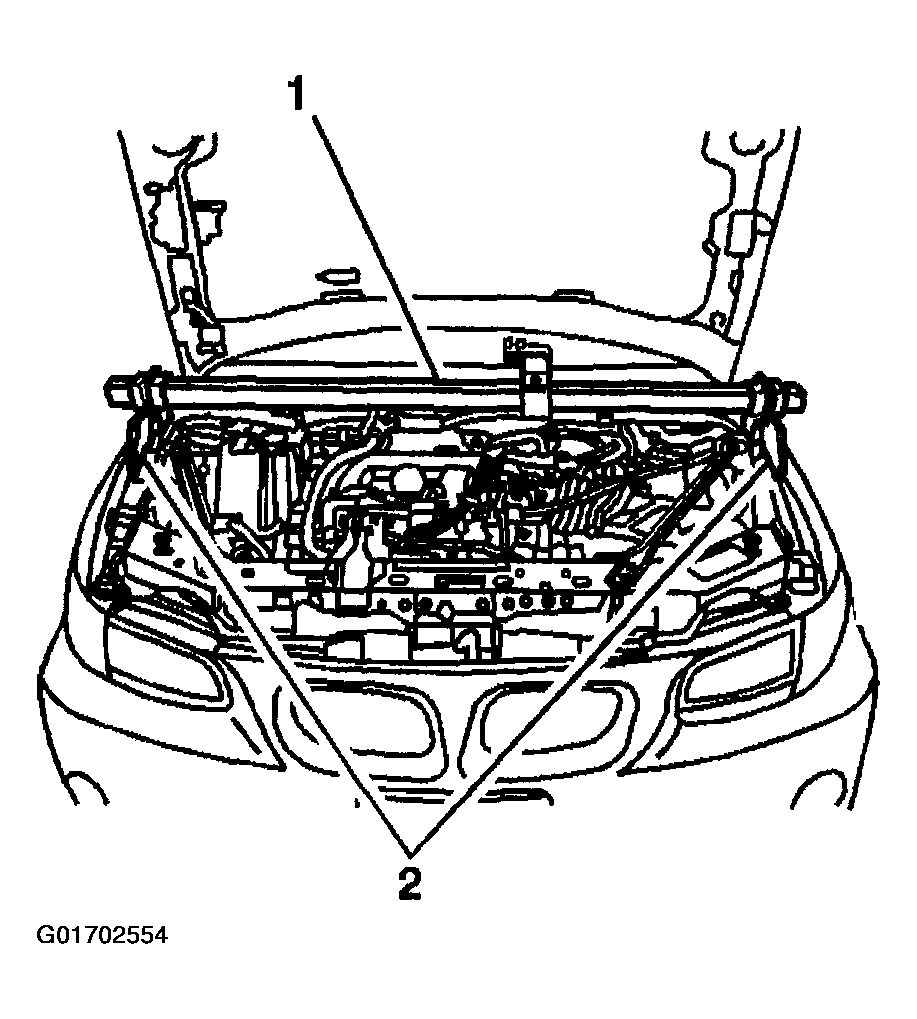

    Fig 1: J 28467-B & J-28467-501
    G01702554Courtesy of GENERAL MOTORS CORP.
  5. Install the J 36462-A  (1) to the cross bar (2).

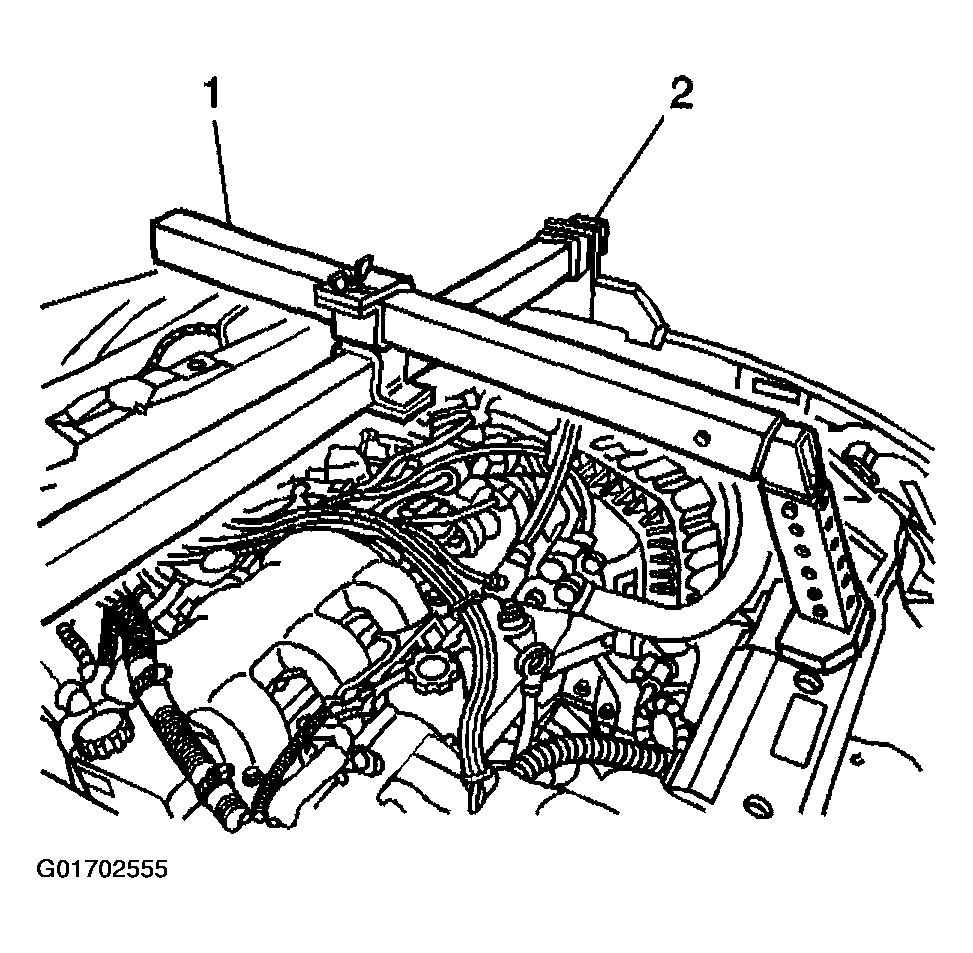

    Fig 2: J 36462-A & Cross Bar
    G01702555Courtesy of GENERAL MOTORS CORP.
  6. Install the support lift hook (1) to the cross bar (2).
  7. Install the support hook (1) to the right engine lift hook (3).

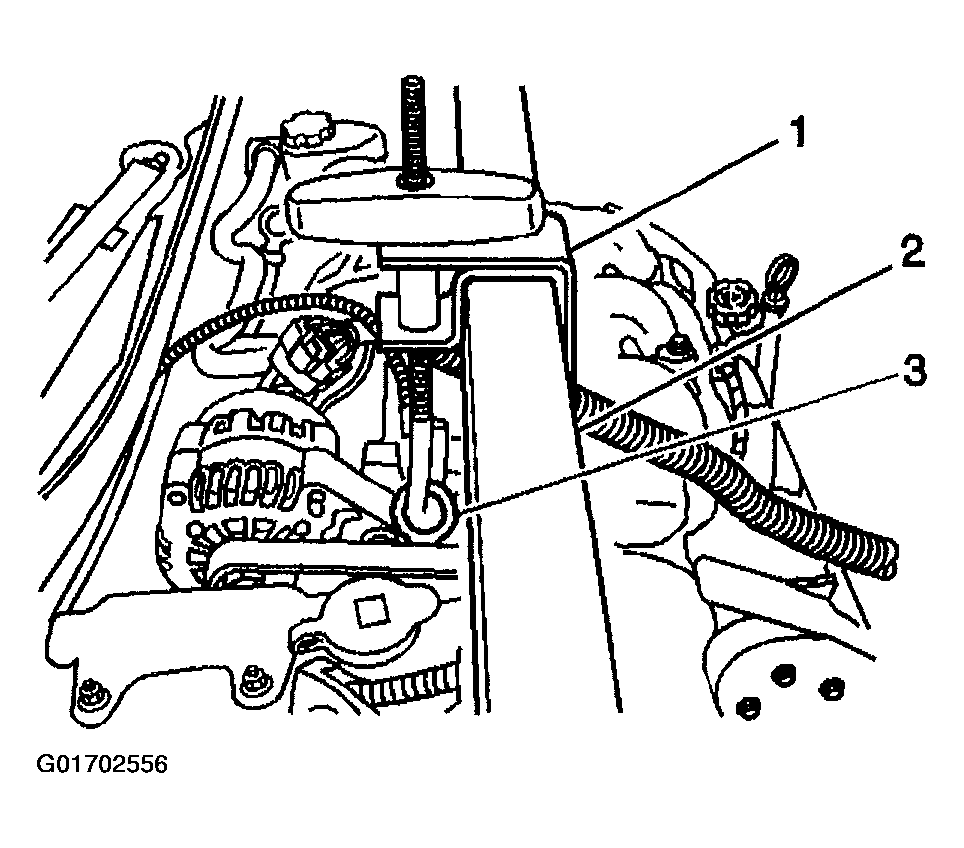

    Fig 3: Support Lift Hook, Cross Bar & Right Engine Lift Hook
    G01702556Courtesy of GENERAL MOTORS CORP.
  8. Install the support hook (1) to the J 36462-A (2).
  9. Install the support hook (1) to the left engine lift hook (3).

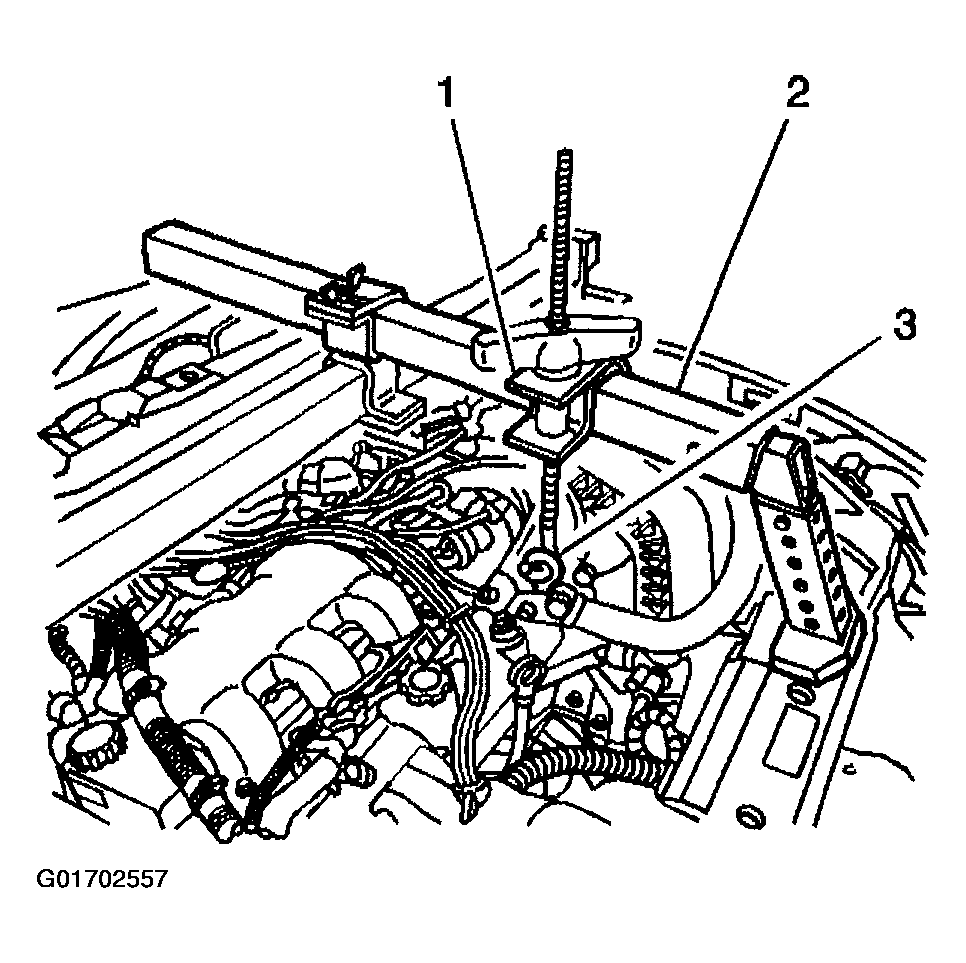

    Fig 4: Support Hook, J 36462-A & Left Engine Lift Hook
    G01702557Courtesy of GENERAL MOTORS CORP.
  10. Raise the engine to release the pressure off of the engine mounts.

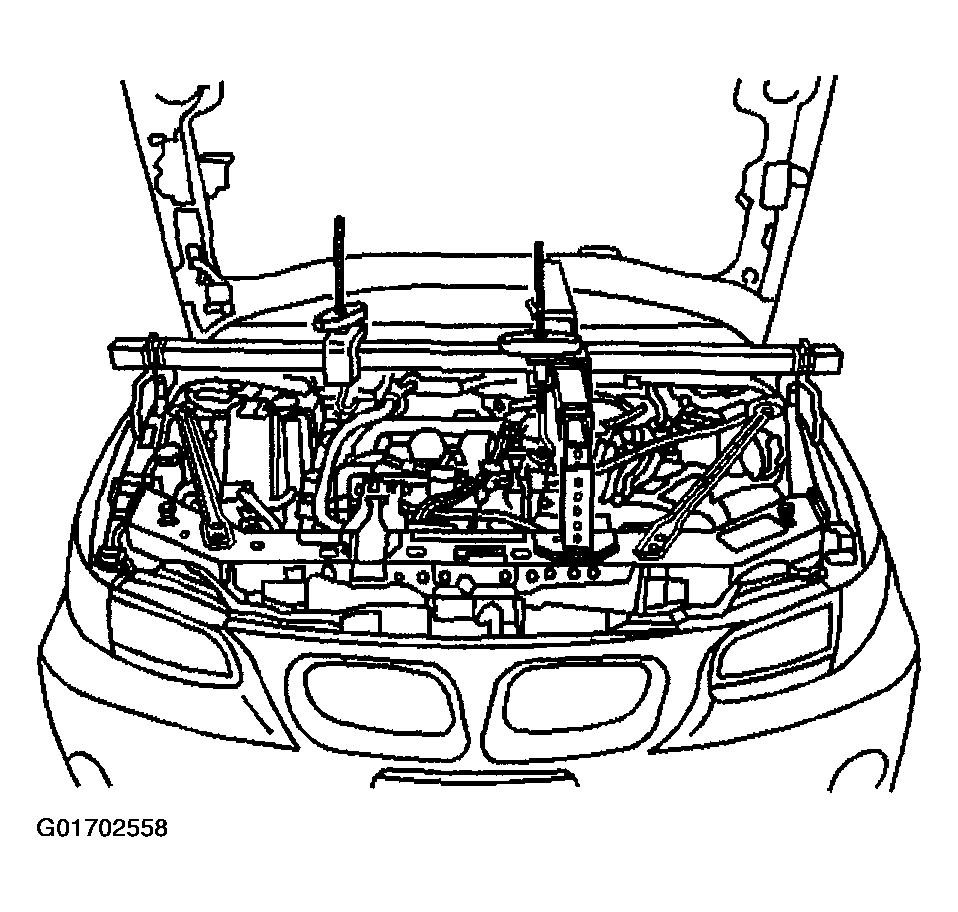

    Fig 5: Raising Engine
    G01702558Courtesy of GENERAL MOTORS CORP.
