Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the engine oil pressure sensor.

    Tighten

    Tighten the sensor to 16 N.m (12 lb ft).

  2. Connect the engine oil pressure sensor electrical connector.
  3. Lower the vehicle.
  4. Check and fill the crankcase as necessary. Refer to Engine Oil and Oil Filter Replacement .
  5. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

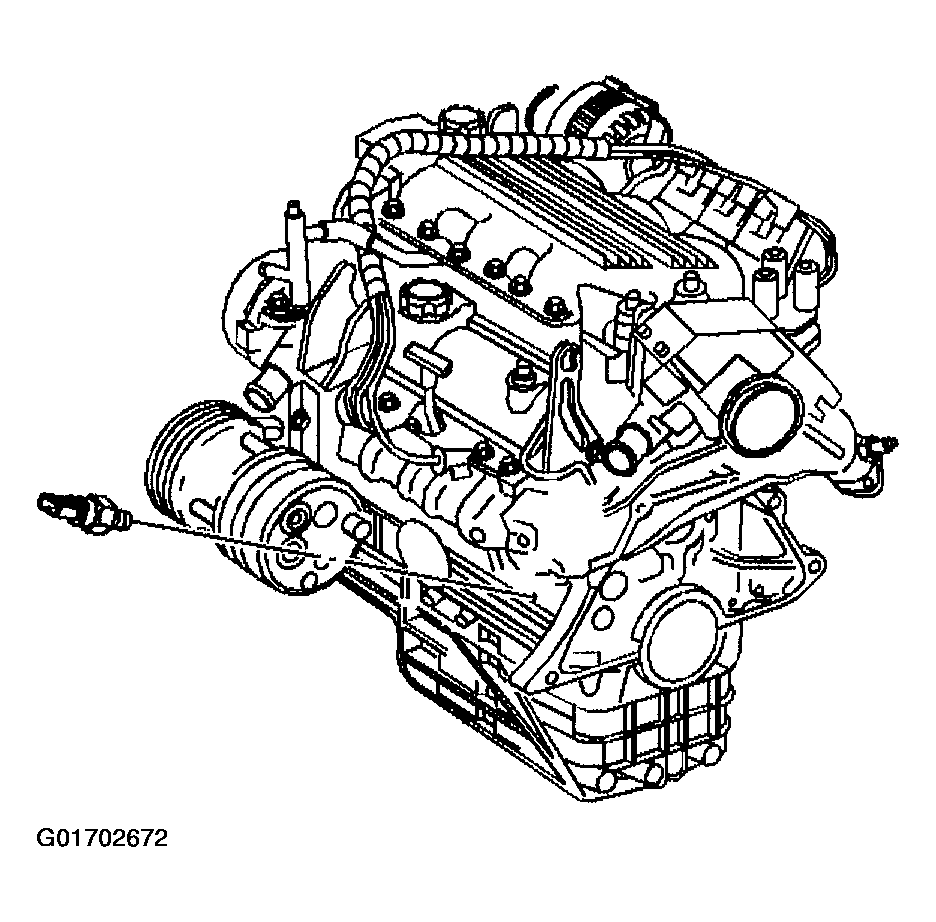

    Fig 1: Engine Oil Pressure Sensor
    G01702672Courtesy of GENERAL MOTORS CORP.
