Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine oil level sensor to the oil pan.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine oil level sensor bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the engine oil level sensor electrical connector.

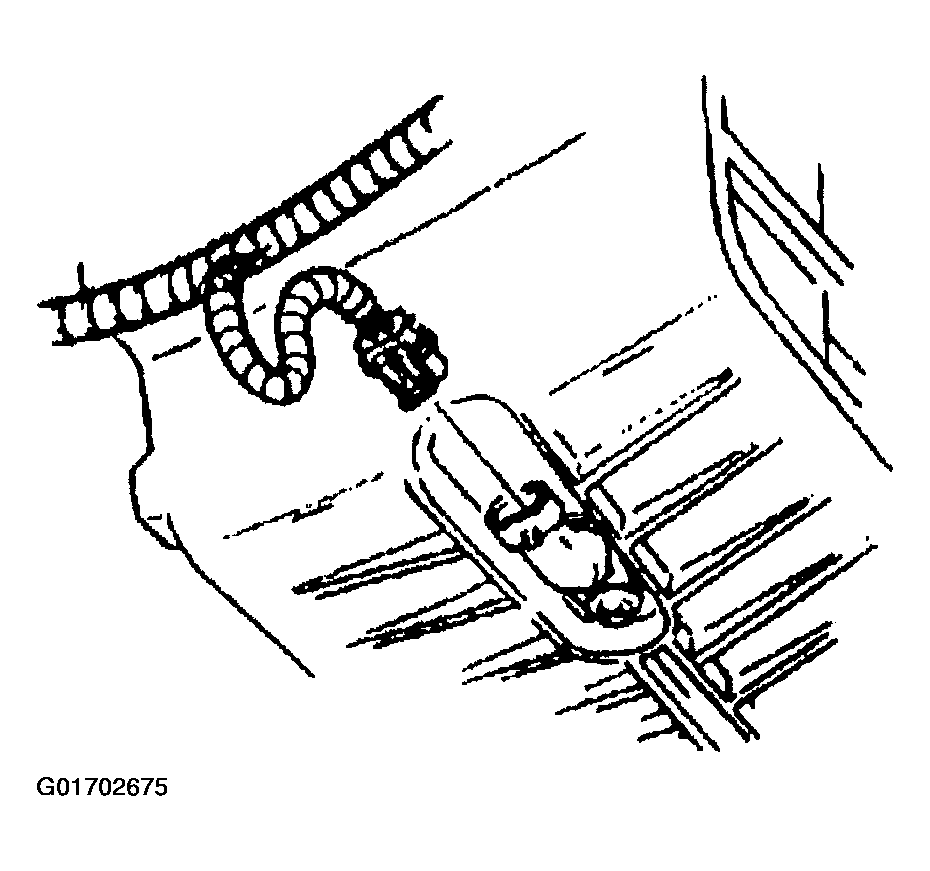

    Fig 1: Engine Oil Level Sensor Electrical Connector
    G01702675Courtesy of GENERAL MOTORS CORP.
  4. Install the engine oil drain plug.

    Tighten

    Tighten the plug to 25 N.m (18 lb ft).

  5. Lower the vehicle.
  6. Fill the crankcase with engine oil. Refer to Engine Oil and Oil Filter Replacement .

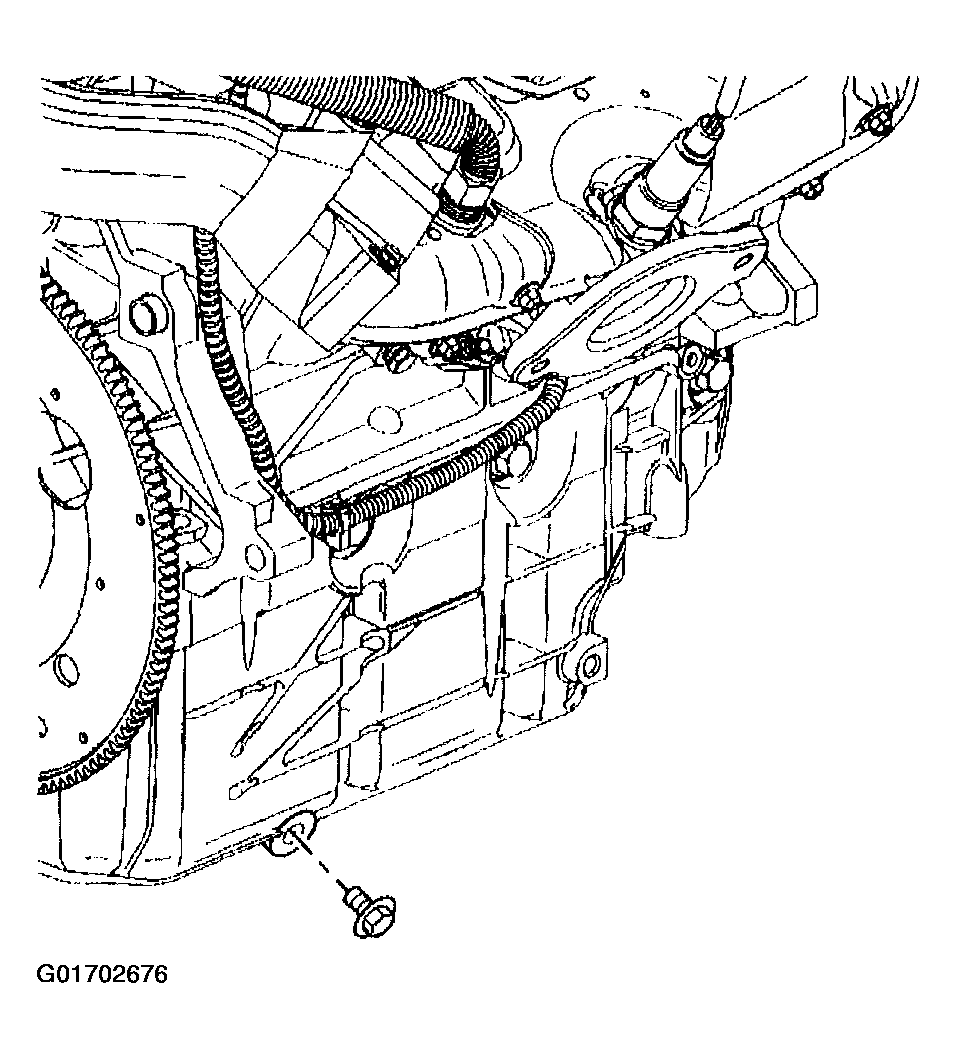

    Fig 2: Engine Oil Drain Plug
    G01702676Courtesy of GENERAL MOTORS CORP.
