Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.
    • Tighten
    • Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

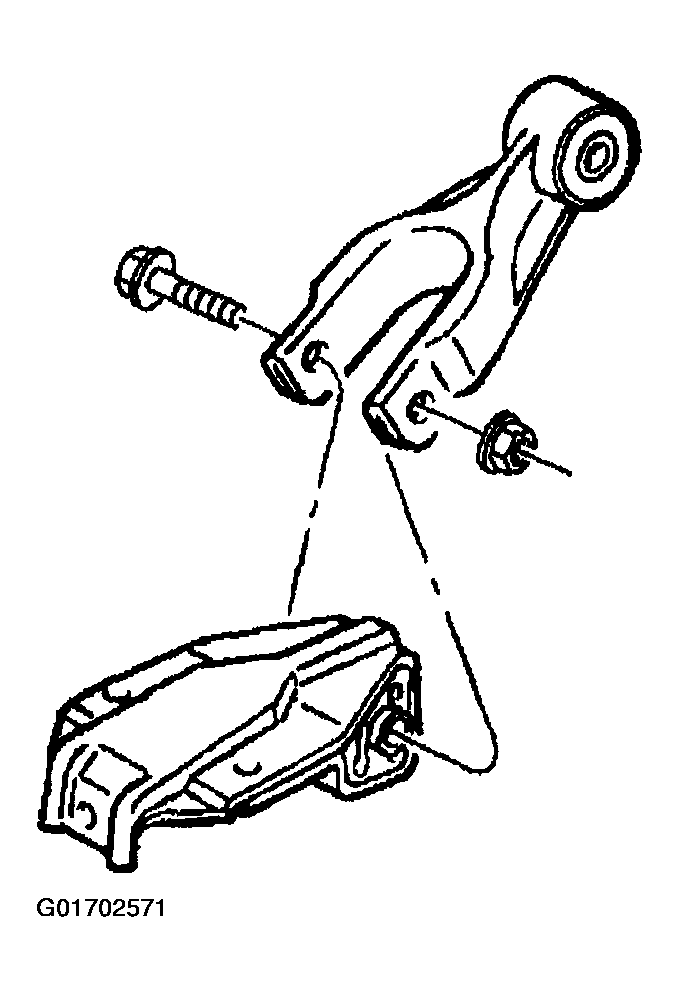

      Fig 1: Engine Mount Strut & Bracket
      G01702571Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the engine mount strut and the engine mount strut bracket.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).

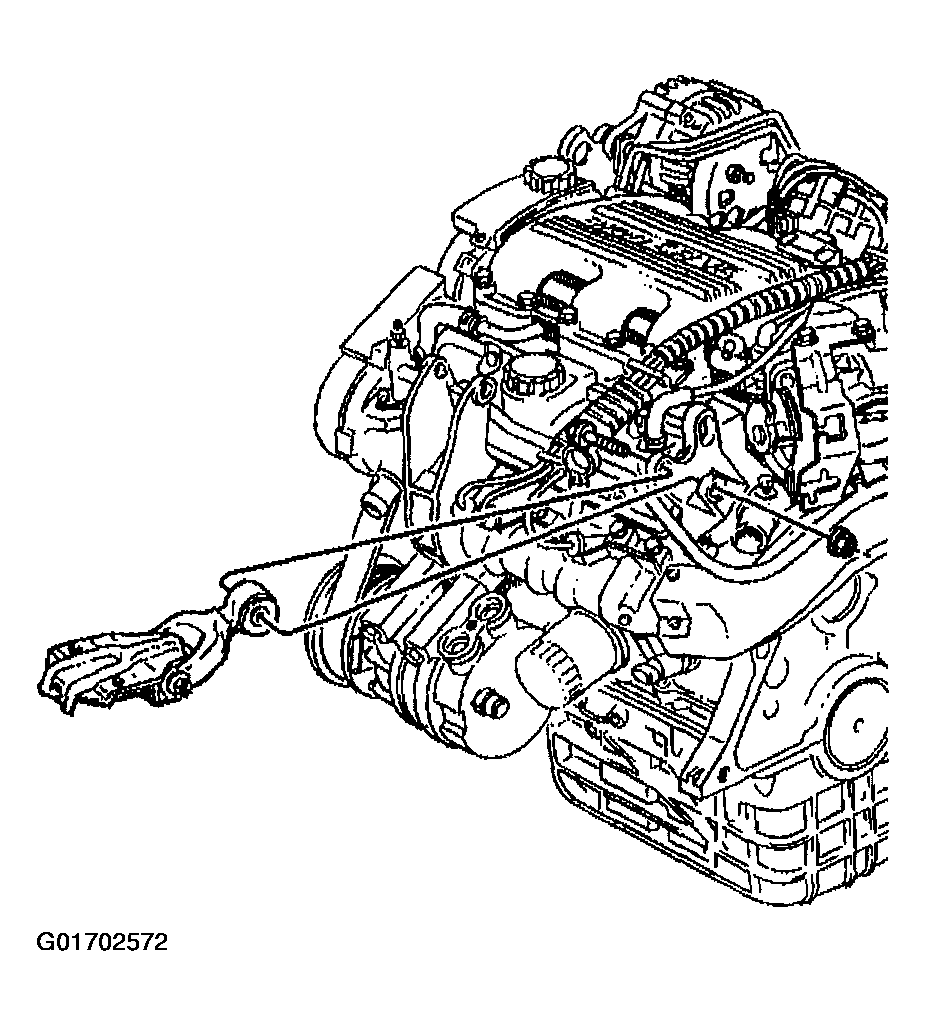

    Fig 2: Installing Engine Mount Strut & Bracket
    G01702572Courtesy of GENERAL MOTORS CORP.
