Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine mount strut bracket over the upper radiator support. Make sure that the engine mount strut bracket and the engine mount strut are aligned to the proper holes of the upper radiator support. The proper torque sequence is shown (1,2).
    NOTE: Refer to FASTENER NOTICE .
  2. Install and tighten the engine mount strut bracket bolts. The following is a mandatory torque sequence:
    1. 2.1. Tighten the horizontal engine mount strut bracket bolt (1) to the engine mount strut bracket.

      Tighten

      Tighten the horizontal engine mount strut bracket bolt to 26 N.m (19 lb ft).

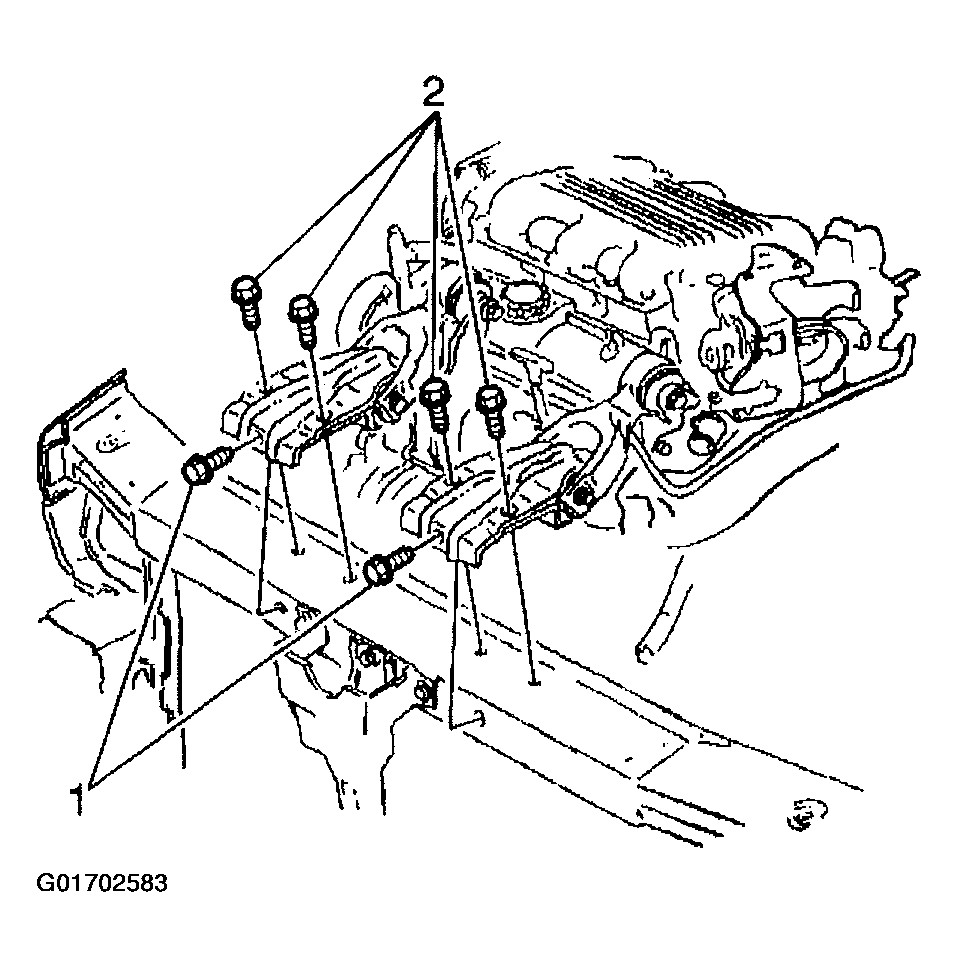

      Fig 1: Horizontal & Vertical Engine Mount Strut Bracket Bolts
      G01702583Courtesy of GENERAL MOTORS CORP.
    2. Tighten the vertical engine mount strut bracket bolts (2) to the engine mount strut bracket.

      Tighten

      Tighten the vertical engine mount strut bracket bolts to 26 N.m (19 lb ft).

  3. Install the engine mount strut to the engine mount strut bracket at the upper radiator support. Refer to Engine Mount Strut Replacement .

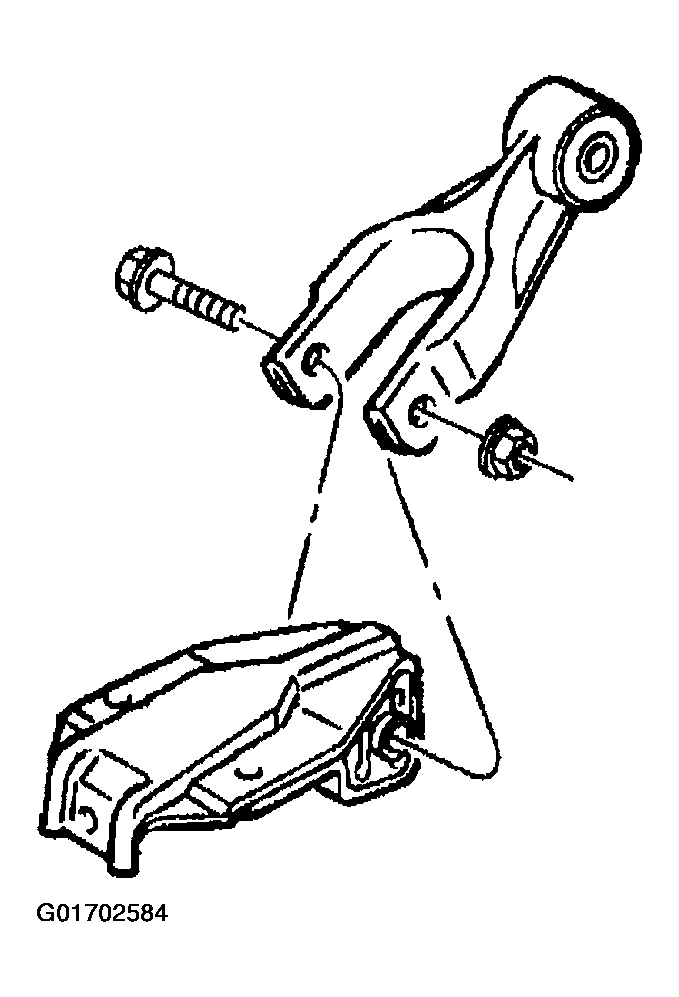

    Fig 2: Engine Mount Strut & Bracket
    G01702584Courtesy of GENERAL MOTORS CORP.
