Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the right engine mount strut from the right engine mount strut bracket.
  3. Remove the air conditioning compressor mounting bolts. Refer to COMPRESSOR REPLACEMENT (3.1 L) or COMPRESSOR REPLACEMENT (3.8L) .
  4. Remove and set the air conditioning compressor aside.

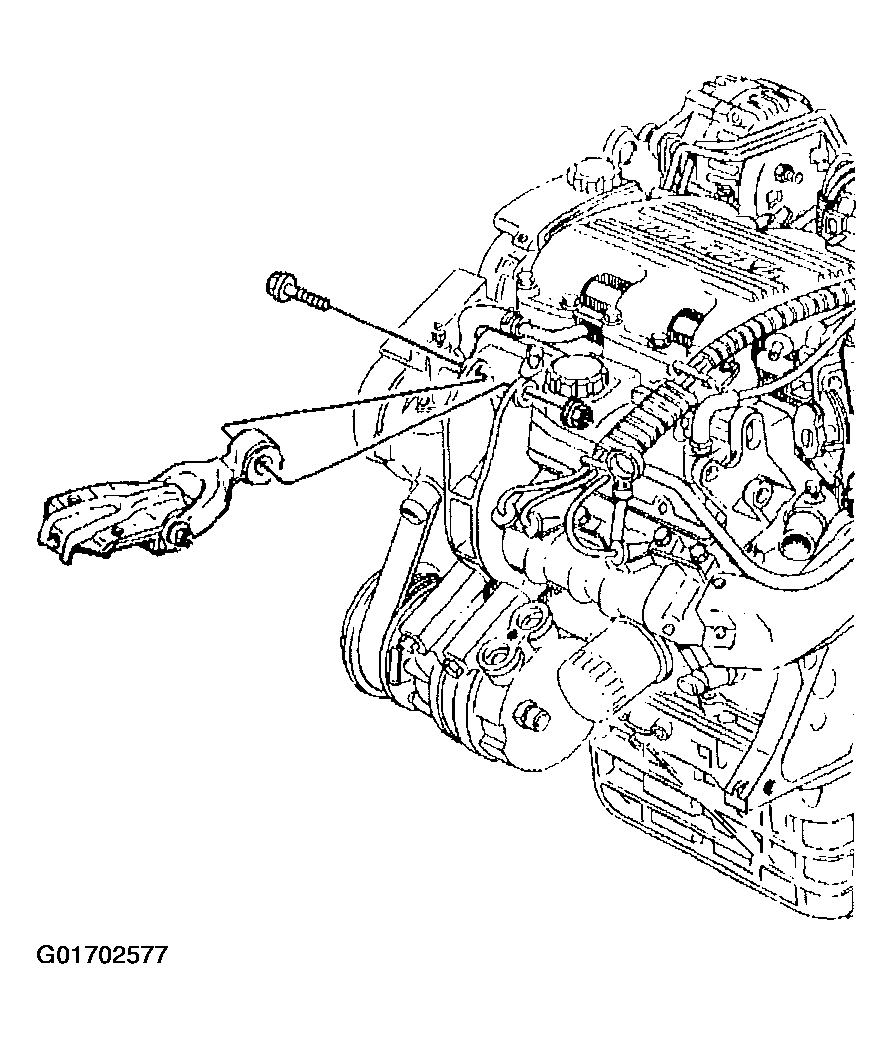

    Fig 1: Right Engine Mount Strut
    G01702577Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts from the right engine mount strut bracket.
  6. Remove the right engine mount strut bracket.

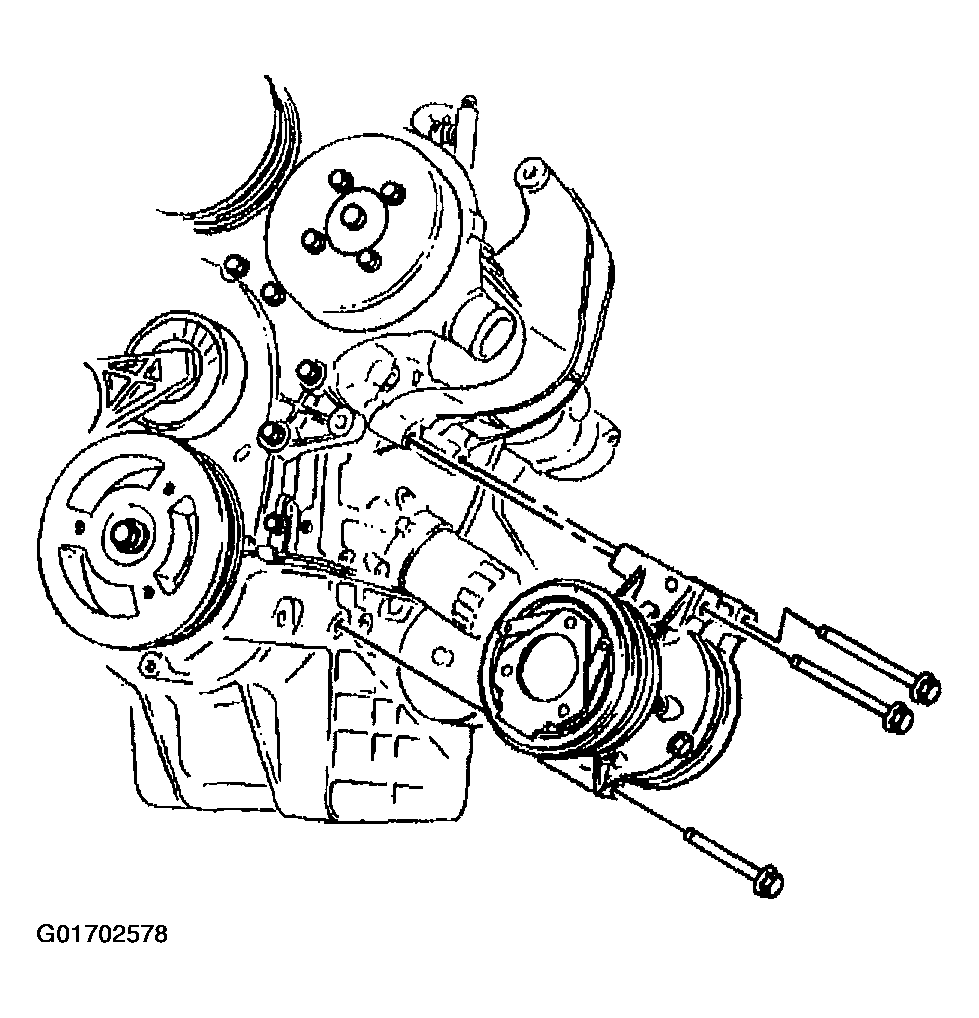

    Fig 2: Right Engine Mount Strut Bracket
    G01702578Courtesy of GENERAL MOTORS CORP.
