Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right engine mount strut bracket over the pin locator.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts through the right engine mount strut bracket to the cylinder head.

    Tighten

    Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  3. Install the air conditioner compressor. Refer to COMPRESSOR REPLACEMENT (3.1 L) or COMPRESSOR REPLACEMENT (3.8L) .

    Tighten

    Tighten the air conditioning compressor mounting bolts to 50 N.m (37 lb ft).

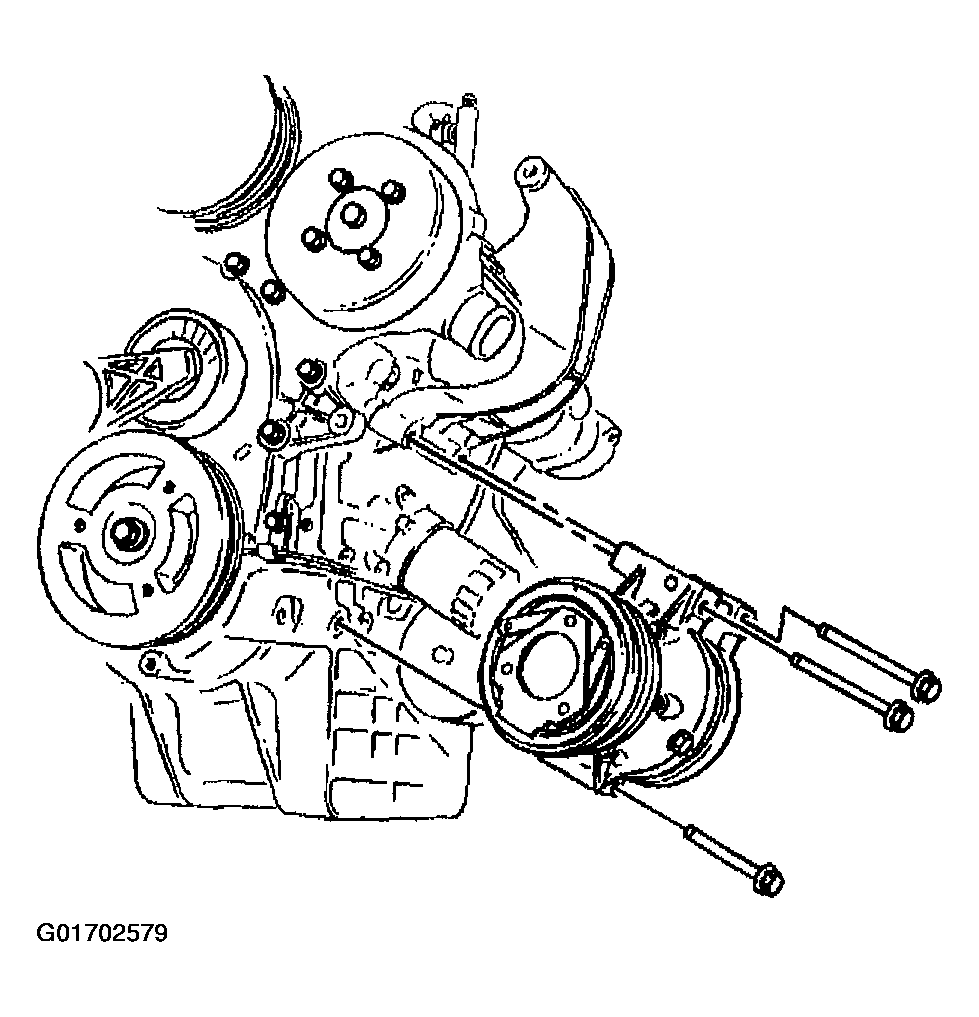

    Fig 1: Right Engine Mount Strut Bracket
    G01702579Courtesy of GENERAL MOTORS CORP.
  4. Install the right engine mount strut to the right engine mount strut bracket.
  5. Connect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

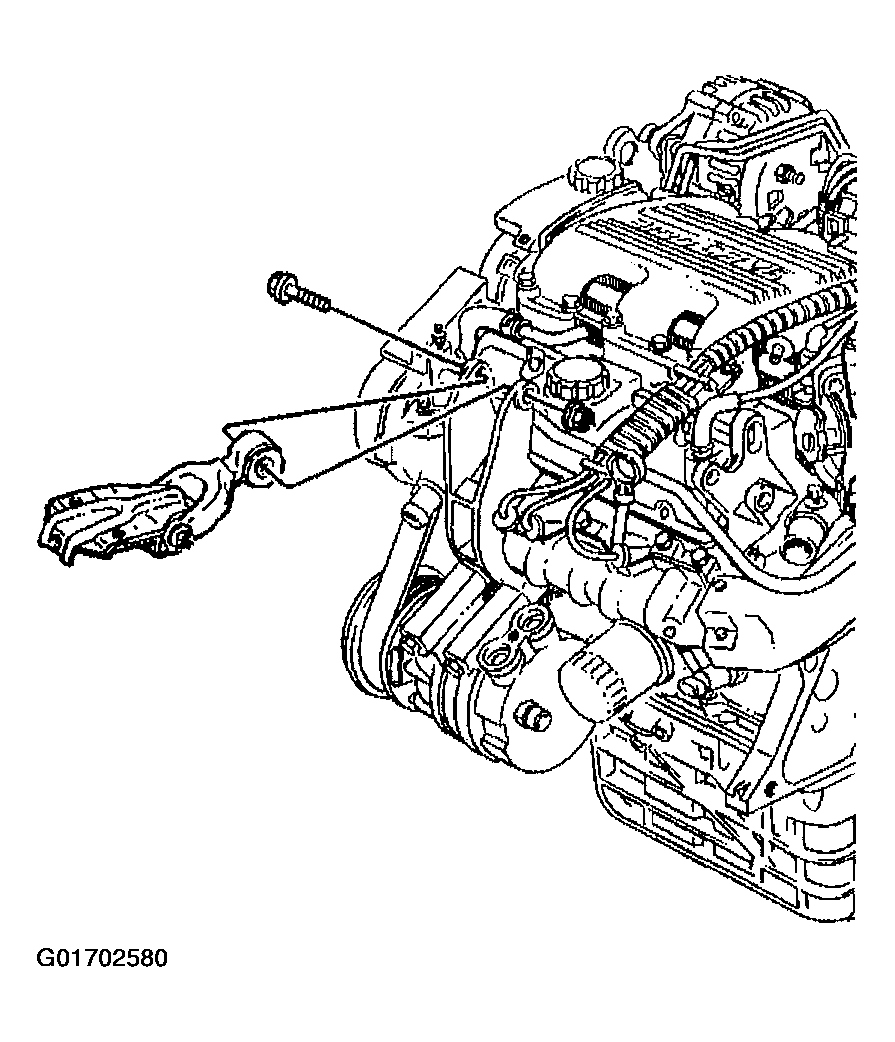

    Fig 2: Right Engine Mount Strut
    G01702580Courtesy of GENERAL MOTORS CORP.
