Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount strut bracket to the cylinder head.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the left engine mount strut bracket bolts.

    Tighten

    Tighten the engine mount strut bracket bolts to 50 N.m (37 lb ft).

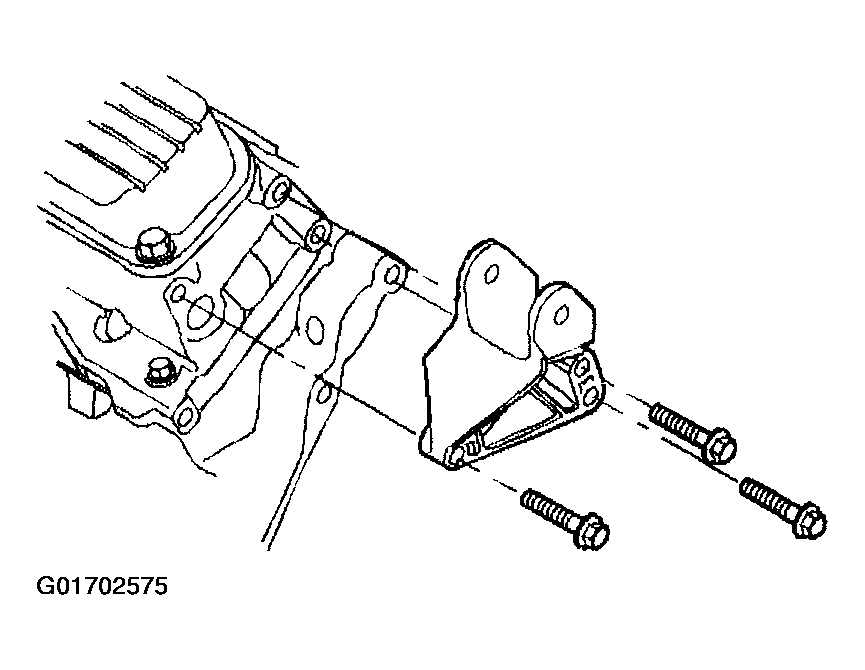

    Fig 1: Left Engine Mount Strut Bracket
    G01702575Courtesy of GENERAL MOTORS CORP.
  3. Install the left engine mount strut to the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT .
  4. Install the engine coolant temperature (ECT) sensor. Refer to ENGINE COOLANT TEMPERATURE SENSOR .
  5. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

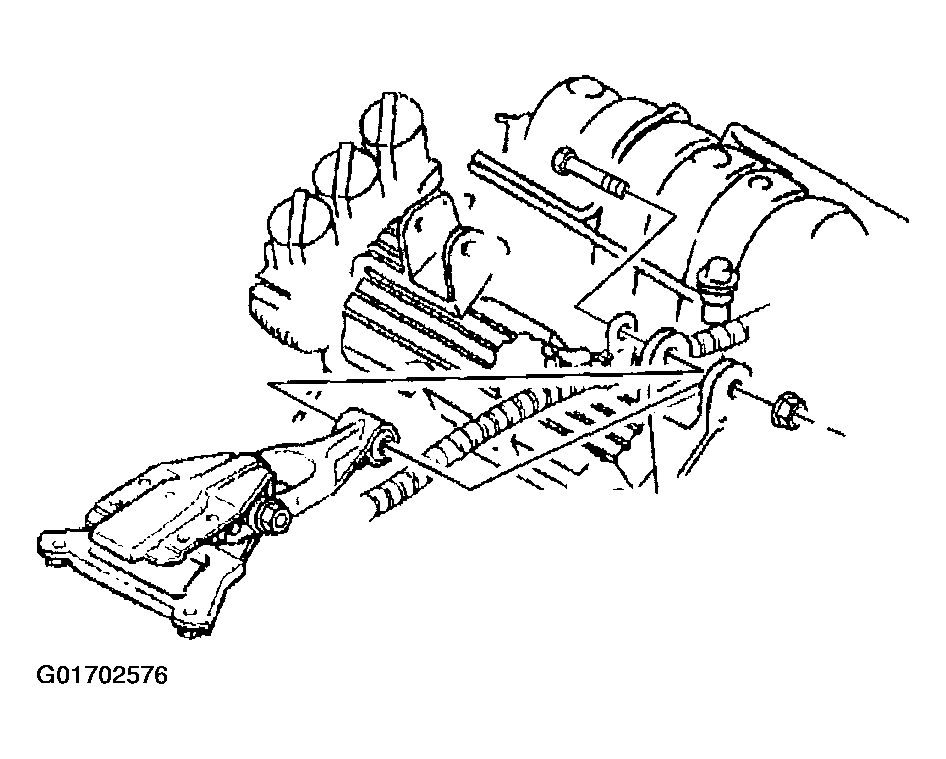

    Fig 2: Left Engine Mount Strut
    G01702576Courtesy of GENERAL MOTORS CORP.
