Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the throttle body air inlet duct.
  3. Remove the engine mount struts. Refer to Engine Mount Strut Replacement .
  4. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  5. Remove the three-way catalytic converter pipe from the right (rear) exhaust manifold. Refer to CATALYTIC CONVERTER REPLACEMENT (3.1L) or CATALYTIC CONVERTER REPLACEMENT (3.8L) .
  6. Remove the right front wheel and tire. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  7. Remove the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
  8. Remove the engine mount lower nuts.

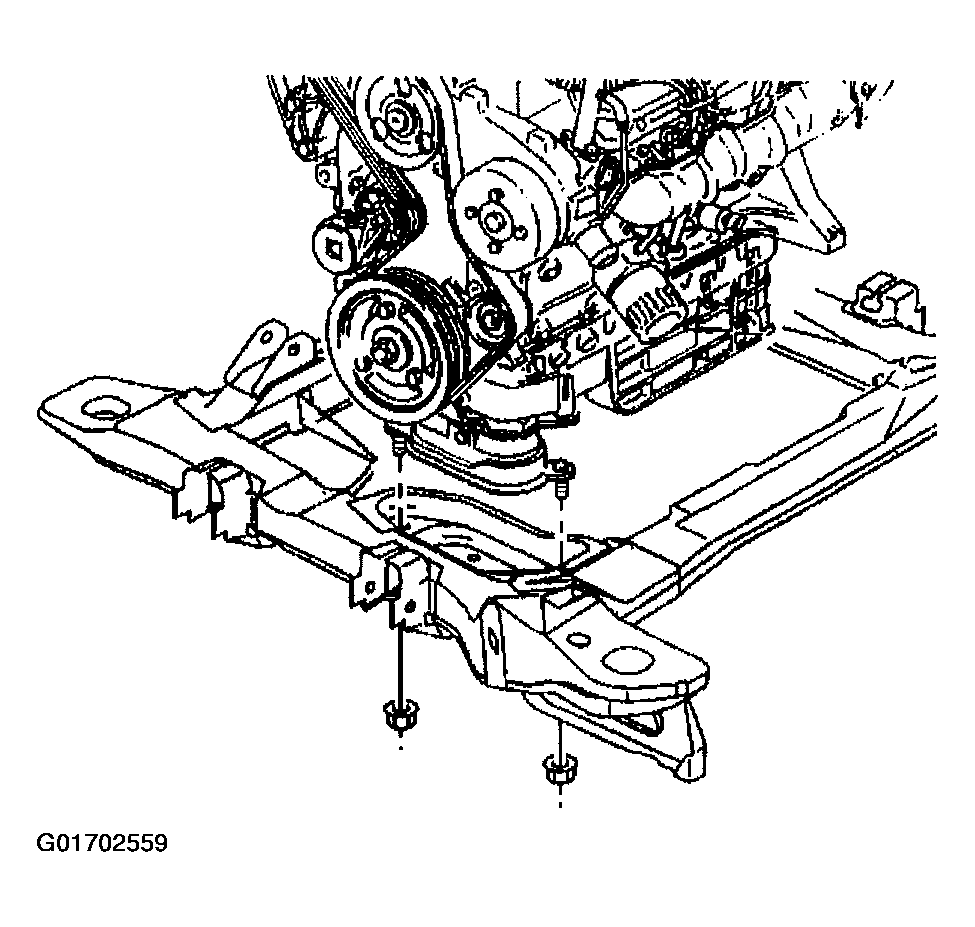

    Fig 1: Engine Mount Lower Nuts
    G01702559Courtesy of GENERAL MOTORS CORP.
  9. Lower the vehicle.
  10. Raise the engine, using the engine support fixture. Refer to Engine Support Fixture .
  11. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  12. Remove the engine mount bracket-to-oil pan bolts.
  13. Remove the engine mount and the engine mount bracket.

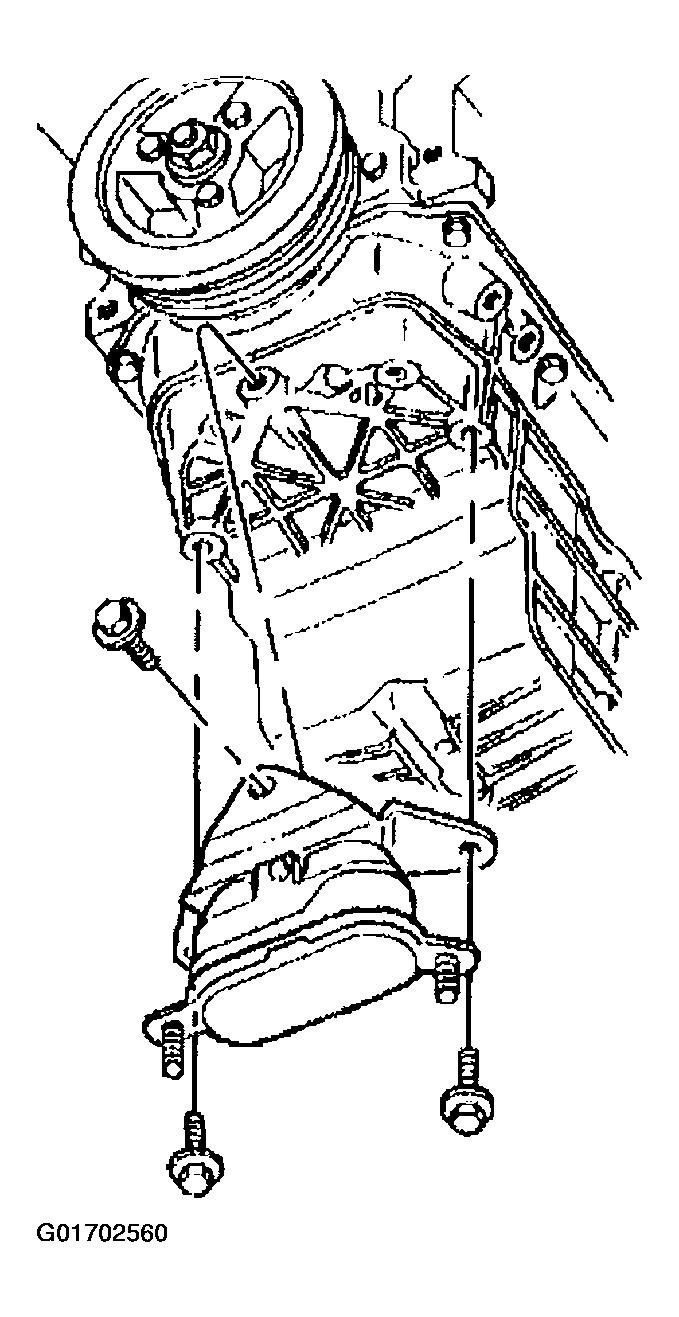

    Fig 2: Removing Engine Mount & Bracket
    G01702560Courtesy of GENERAL MOTORS CORP.
  14. Remove the engine mount upper nuts.
  15. Remove the engine mount from the engine mount bracket.

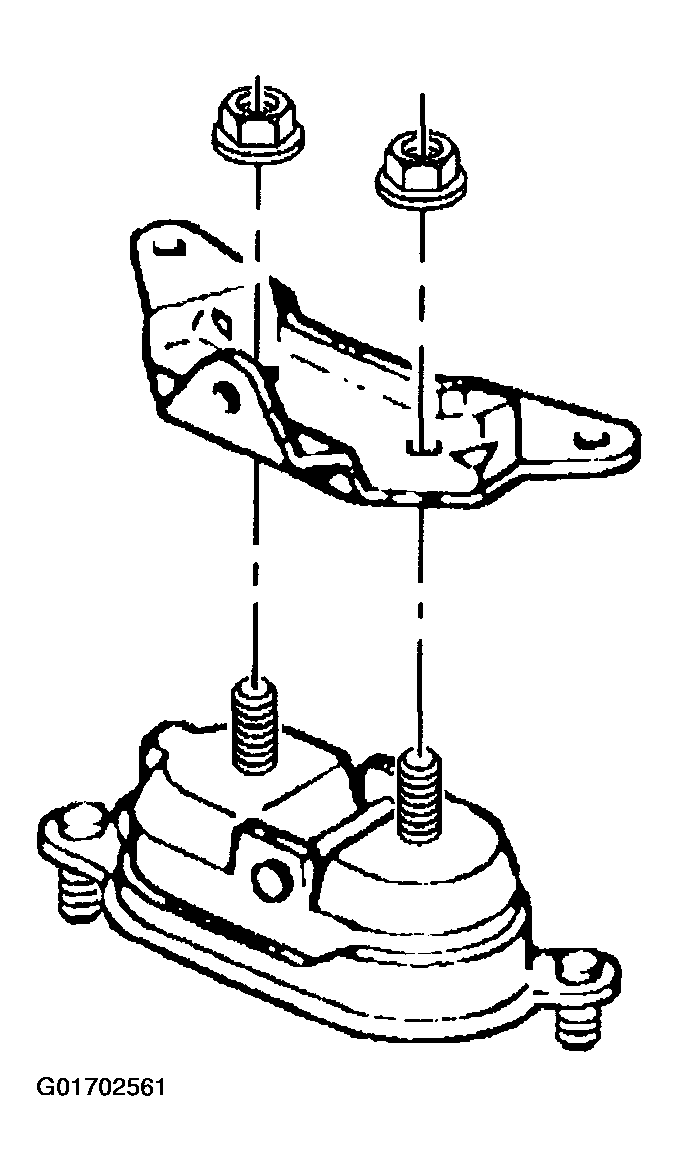

    Fig 3: Engine Mount & Bracket
    G01702561Courtesy of GENERAL MOTORS CORP.
