Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. Refer to TRANSAXLE .
  2. Use the J 37096  to secure the flywheel in order to prevent rotation.
  3. Loosen the 6 flywheel bolts.
  4. Remove 5 of the 6 flywheel bolts leaving 1 bolt at the top of the crankshaft rotation.
  5. Grip the flywheel and remove the remaining bolt. Do not drop the flywheel when removing the final bolt.
  6. Remove the engine flywheel and the flywheel retainer.
  7. Clean the engine flywheel bolt threads and bolt holes.

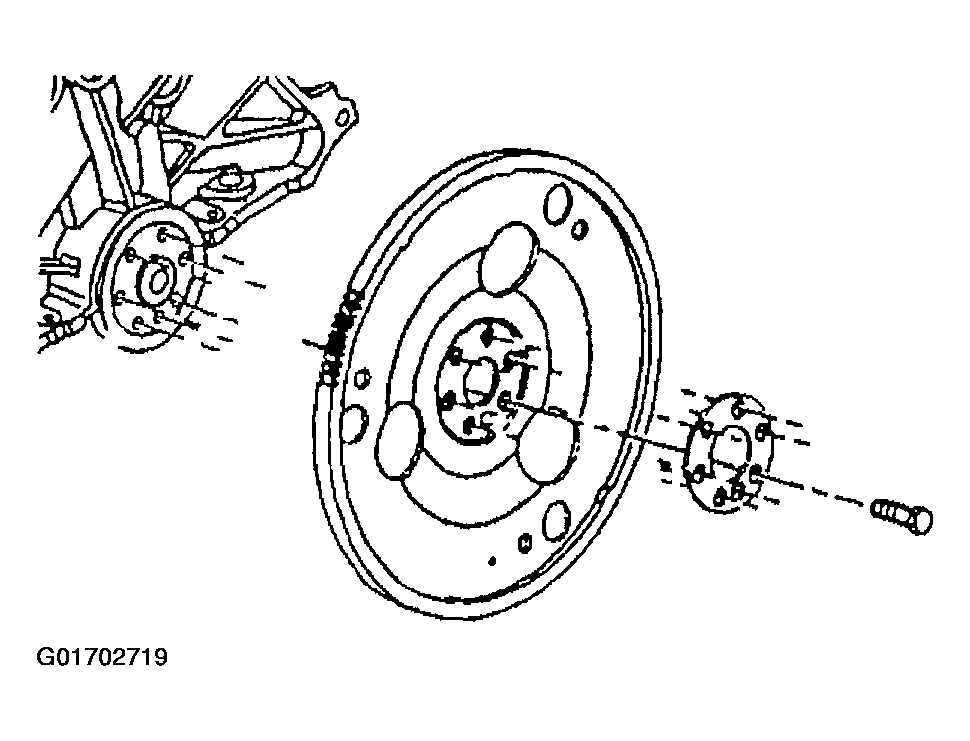

    Fig 1: Engine Flywheel
    G01702719Courtesy of GENERAL MOTORS CORP.
