Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel retainer and the flywheel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine flywheel bolts. Use the J 37096  to prevent flywheel rotation.

    Tighten

    Tighten the bolts to 71 N.m (52 lb ft).

  3. Install the automatic transaxle. Refer to TRANSAXLE .

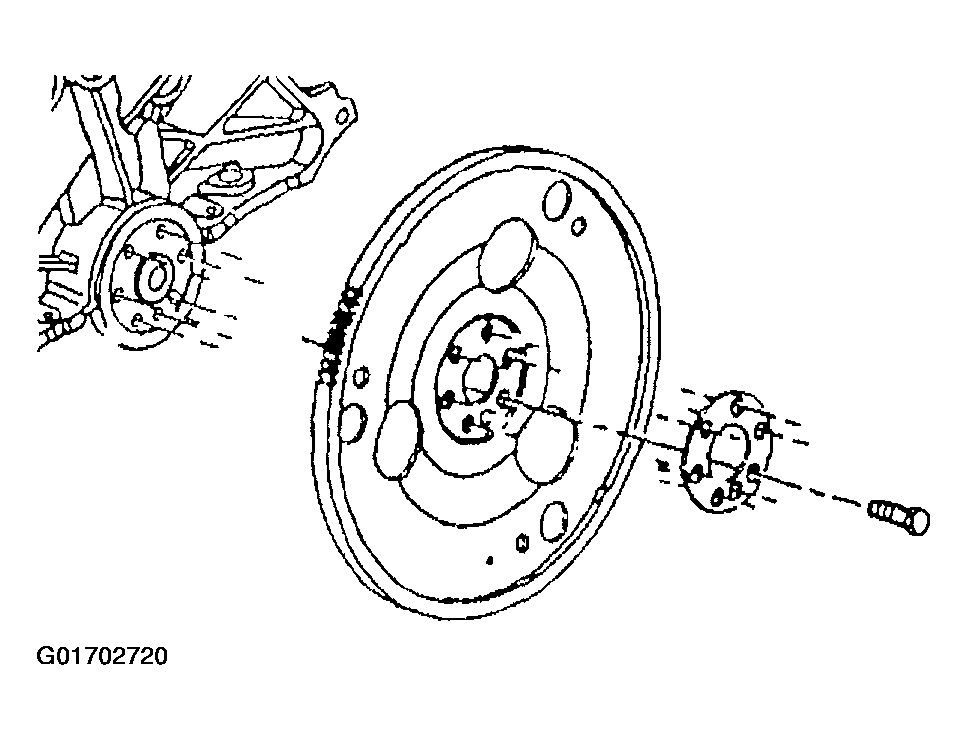

    Fig 1: Engine Flywheel
    G01702720Courtesy of GENERAL MOTORS CORP.
