Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  2. Remove the drive belt. Refer to Drive Belt Replacement .
  3. Remove the drive belt tensioner bolt.
  4. Remove the drive belt tensioner.

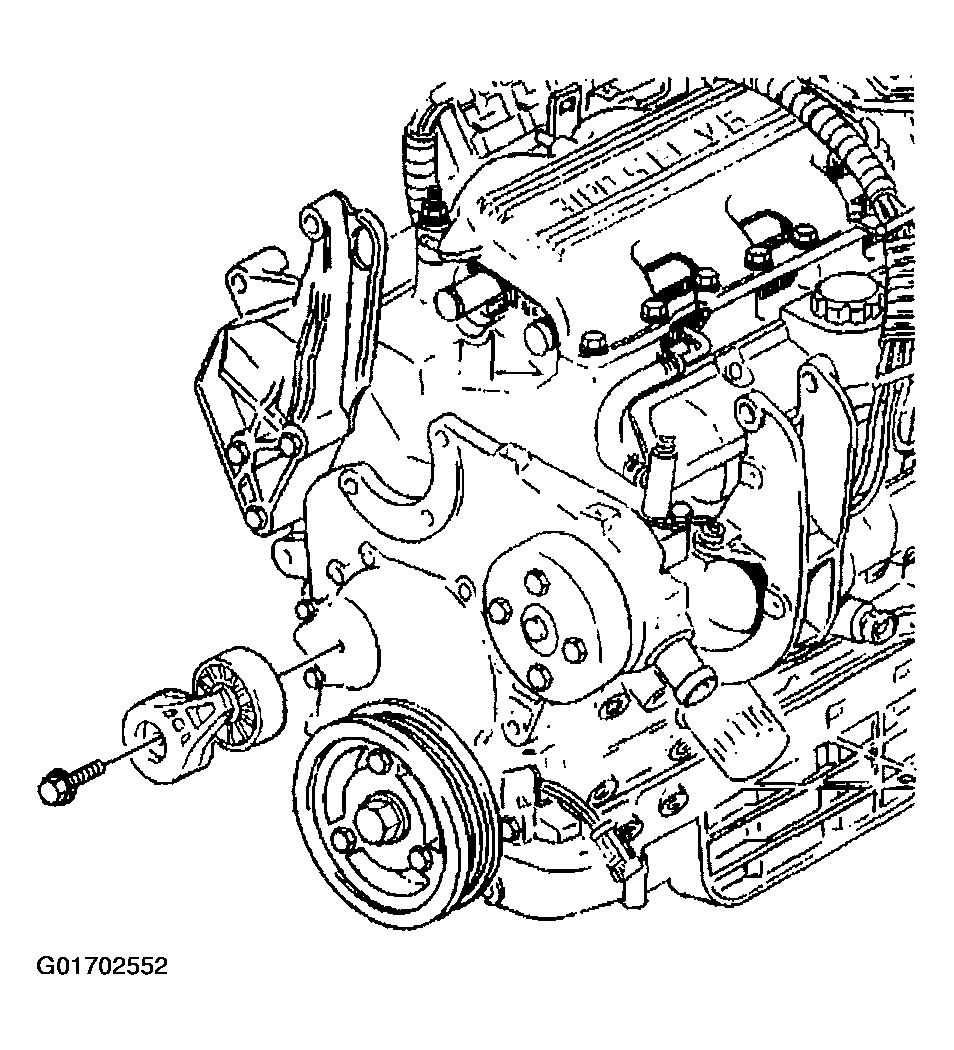

    Fig 1: Drive Belt Tensioner
    G01702552Courtesy of GENERAL MOTORS CORP.
