Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt.
  2. Inspect the drive belt and the drive belt system. Refer to Drive Belt Excessive Wear Diagnosis .

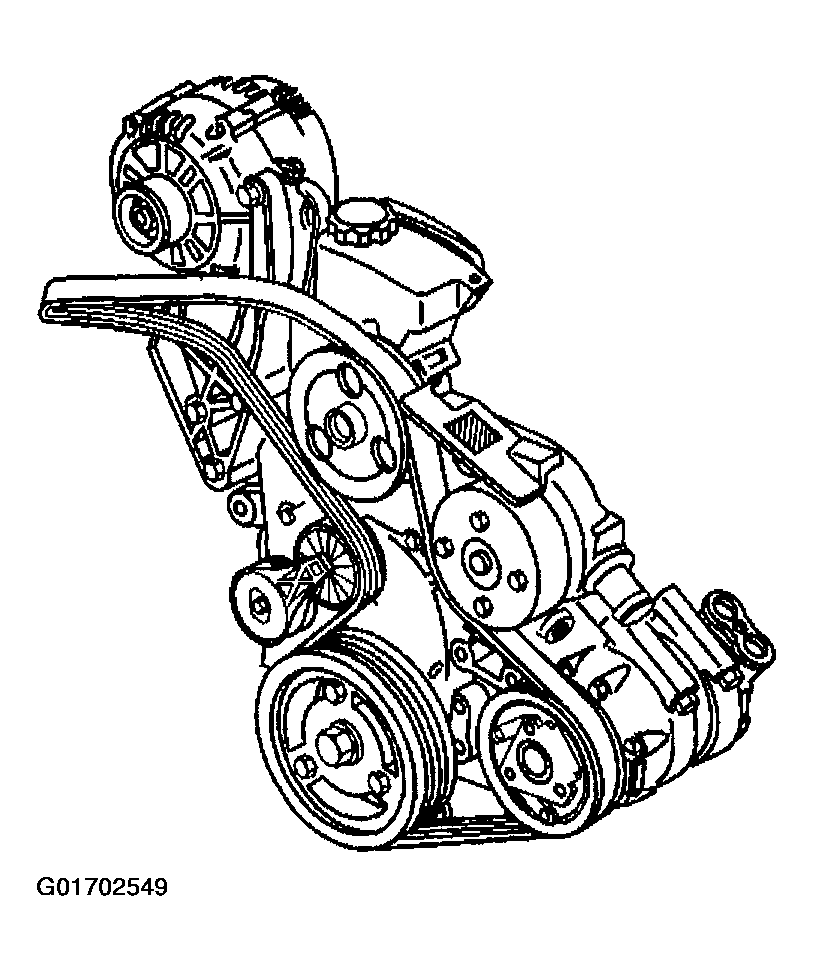

    Fig 1: Installing Drive Belt
    G01702549Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure that the drive belt is aligned into the proper grooves of the accessory drive belt pulleys.
  3. Install the drive belt under the drive belt tensioner pulley by lifting or rotating the drive belt tensioner, using a 3/8 inch breaker bar (1).

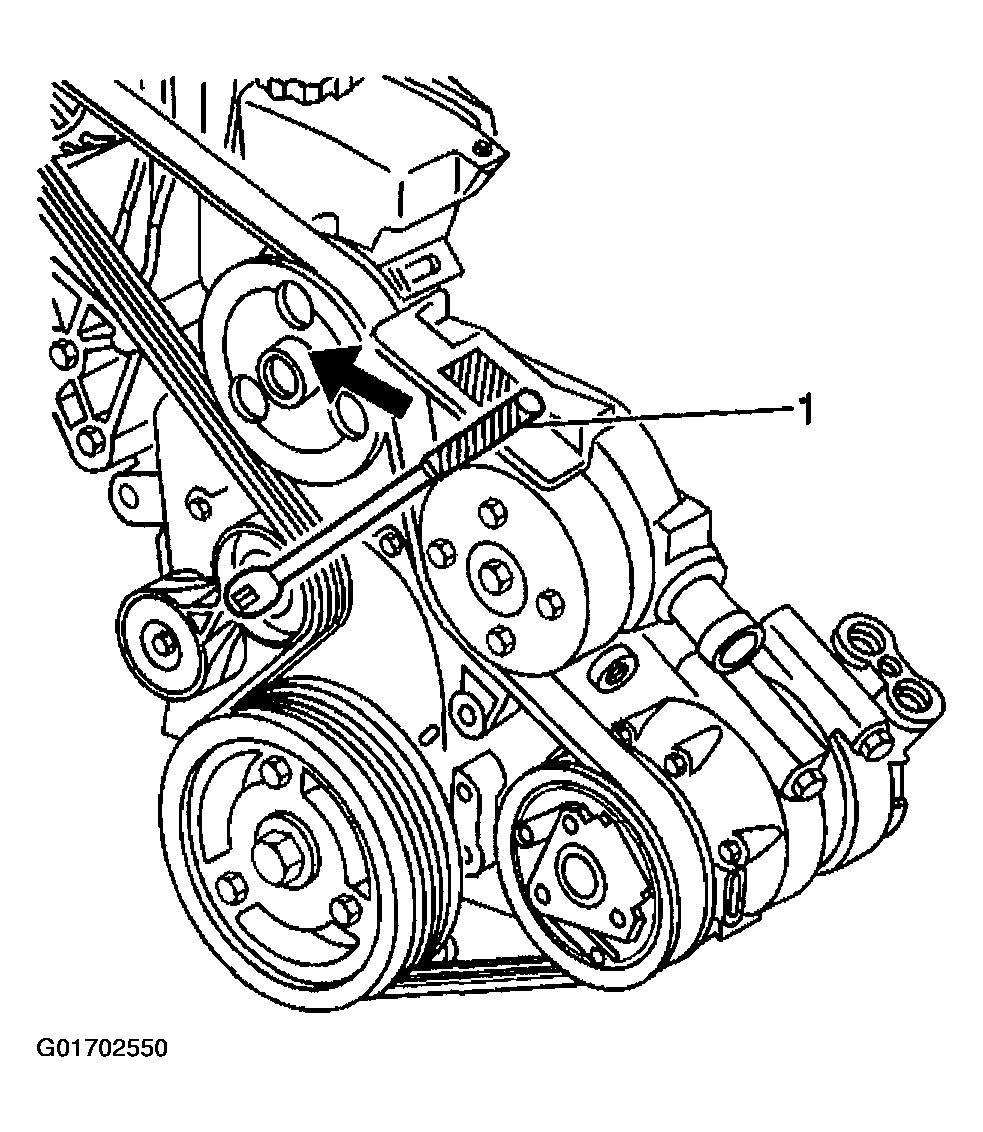

    Fig 2: Installing Drive Belt Tensioner
    G01702550Courtesy of GENERAL MOTORS CORP.
  4. Ensure that the drive belt is properly routed.
  5. Inspect the drive belt length scale on the drive belt tensioner for the proper installed length.

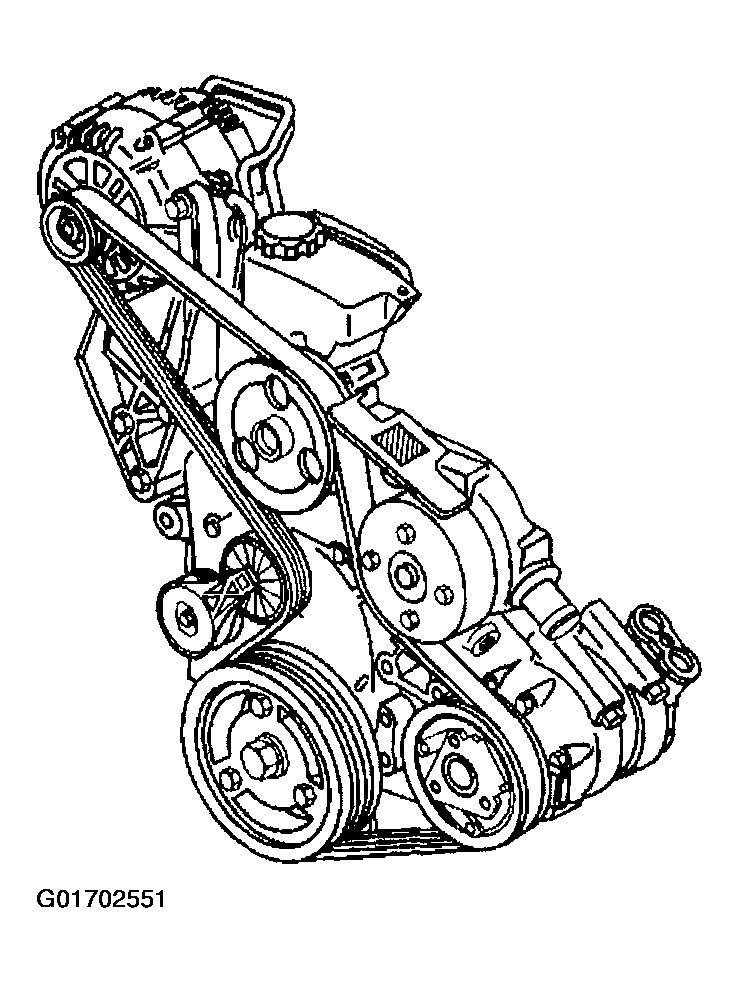

    Fig 3: Drive Belt Routing
    G01702551Courtesy of GENERAL MOTORS CORP.
