Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  2. Pry out the crankshaft front oil seal with a large screwdriver. Refer to the instructions supplied with the replacement part.
  3. Inspect the crankshaft, the crankshaft balancer and the engine front cover for wear and/or damage. Replace or repair the crankshaft, the crankshaft balancer and/or engine front cover as necessary.

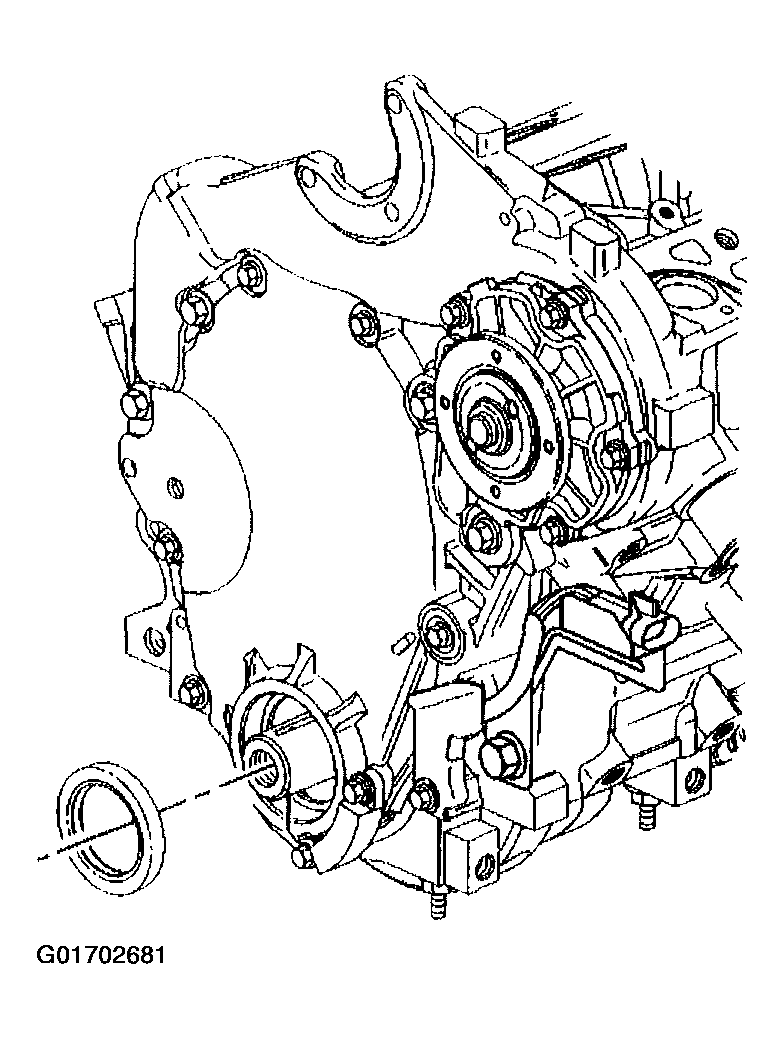

    Fig 1: Crankshaft Front Oil Seal
    G01702681Courtesy of GENERAL MOTORS CORP.
