Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 1052080 or equivalent.
  2. Install the camshaft rear bearing hole plug.

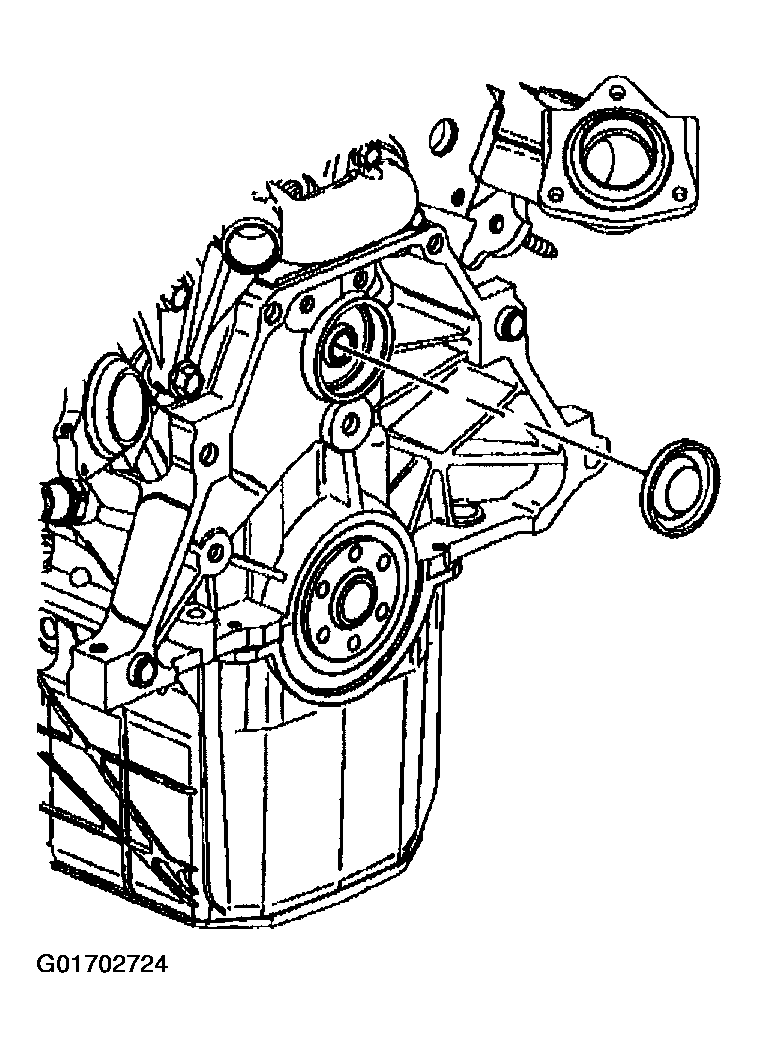

    Fig 1: Camshaft Rear Bearing Hole Plug
    G01702724Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the camshaft rear bearing plug is installed to specifications.
  4. Install the engine flywheel. Refer to Engine Flywheel Replacement .
    Fig 2: Installed Crankshaft Rear Bearing Hole Plug
    G01702725Courtesy of GENERAL MOTORS CORP.
