Removal & Installation (2.4L)
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

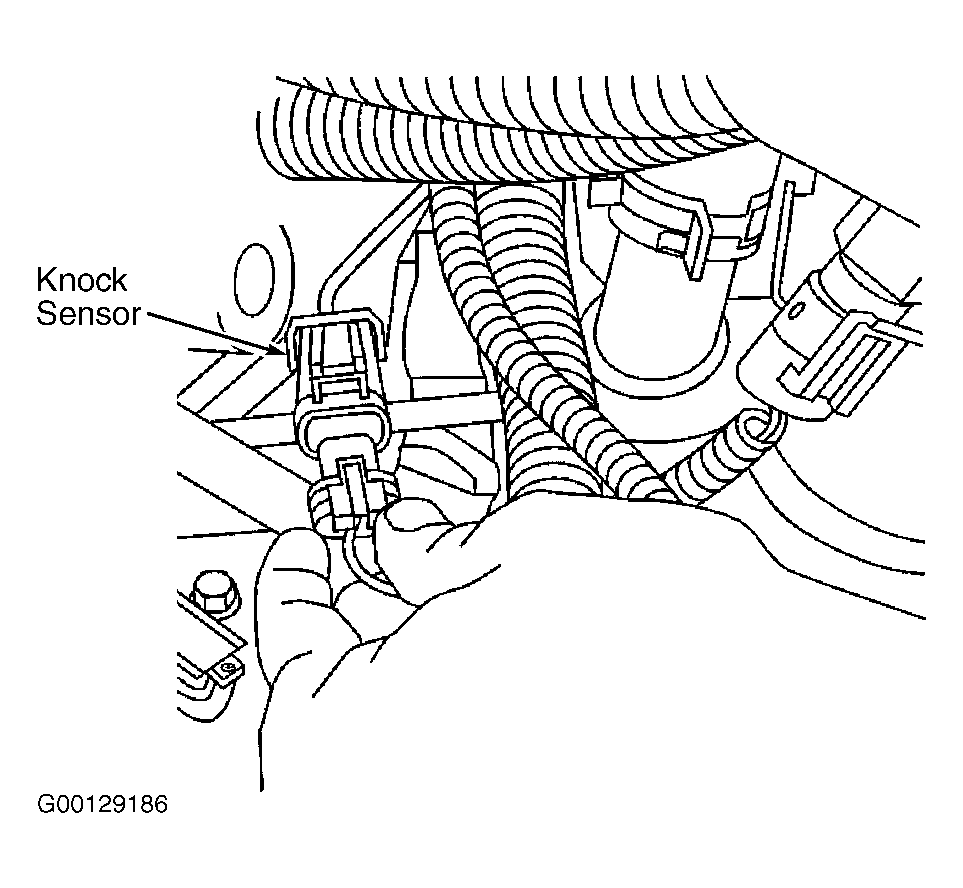

The Knock Sensor (KS) is located in the engine block. See Fig 1. Turn ignition off. Disconnect negative battery cable. Raise and support vehicle. Loosen KS fastener. Disconnect KS electrical connector. Remove KS. To install, reverse removal procedure. Tighten KS to specification. See TORQUE SPECIFICATIONS .
